B-Line Eaton series open rack...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$264.97
$254.44

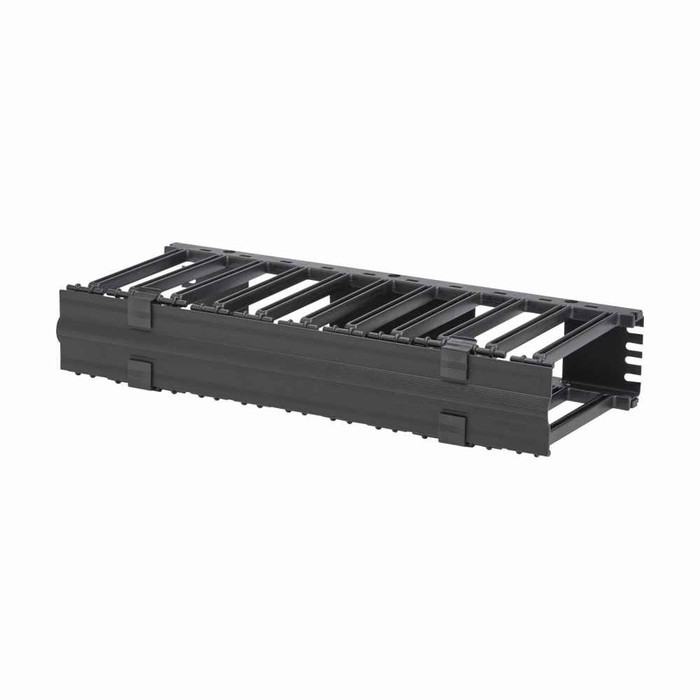

B-Line Eaton series open racks, 2.4" height, 8" length, 19" width, Steel, RCM rack mounted horizontal cable manager, Rack mounting, Plastic finger, F

B-Line Eaton series open racks, 2.4" height, 8" length, 19" width, Steel, RCM rack mounted horizontal cable manager, Rack mounting, Plastic finger, F

(No reviews yet) Write a Review

Model: SB87019SX2FB
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$264.97
$254.44
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series open frame racks, 2.4" height, 8" length, 19" width, Steel, RCM rack mounted horizontal cable manager, Rack mounting, Plastic finger, Flat black powder coat

Manufacturer Resources

Product Specs

Application:
Provides horizontal pathway for two post rack
Certifications:
UL
Material Details:
Flat black powder coat, black plastic components
Material Thickness:
14 gauge
Mounting Method:
Rack
Product Height:
2.4 in
Product Length Depth:
8 in
Product Weight:
3.1 lb
Product Width:
19 in
Special Features:
Fully compatible with RCM vertical cable manager
Department:
Electrical
Product Model:
RCM rack mounted horizontal cable manager
Product Color:
Black
Product Style:
Plastic finger
Product Material:
Steel

B-LINE SB87019SX2FB – Frequently Asked Questions

1) Will this B-Line cable manager fit a standard 19-inch equipment rack?
Yes. The Eaton B-Line RCM horizontal cable manager, part SB87019SX2FB, is built at 19 inches wide for rack mounting, which is the standard EIA rack opening. Its 2.4 inch height works out to 1.4U of panel space, so plan on giving it two rack units between your patch panels or switches.
2) Is this horizontal cable manager meant for a two-post open frame rack or a cabinet?
It is made for a two post open frame rack, providing the horizontal pathway across the rack face. The 8 inch depth means the finger assembly stands well off the rails, so check clearance before dropping it into an enclosed cabinet.
3) Can I combine this with vertical cable management in the same rack?
Yes, and that is how it is intended to be used. The RCM horizontal manager is fully compatible with the RCM vertical cable manager, so horizontal runs off your patch panels hand off cleanly into the vertical channels at the rack uprights.
4) Are the fingers metal or plastic, and will they chafe the jacket on Cat6 patch cords?
The fingers are black plastic components on a steel body, so cables bear against plastic rather than a cut steel edge. The steel frame itself is 14 gauge with a flat black powder coat finish.
5) Is this cable manager UL listed for use in a data room build spec?
UL is the certification carried on the SB87019SX2FB horizontal cable manager, which is typically what a spec calls for on rack accessories in telecom and data rooms.
6) What are the full dimensions of the B-Line RCM horizontal cable manager?
2.4 inches high, 19 inches wide, and 8 inches deep. The 19 inch width is the rack face, the 8 inch depth is how far the finger pathway projects, which is the number to check against your aisle clearance and door swing on a wall mount rack.
7) Will the flat black finish match the rest of my black open frame rack?
The finish is a flat black powder coat on the steel with black plastic fingers, so it reads matte black rather than gloss. If your existing racks are B-Line black powder coat gear, it will match; against a gloss or textured black from another manufacturer expect a slight sheen difference.
8) How heavy is this unit, and can one person mount it?
It weighs 3.1 pounds, so a single tech can hold it against the rails and start the screws without help. Mounting screws are not part of the described assembly, so pull the rack screws that match your rail threading from your own stock.
