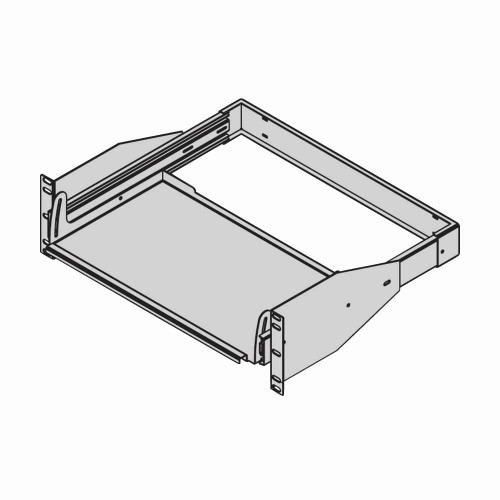

B-Line Eaton series open racks, Aluminum, #12-24 mounting hardware, 50 lb load capacity, Two mounting spaces required, Keyboard retracks when not use
Model: BLN-SB742T23AL
Eaton B-Line series open frame racks, Aluminum, #12-24 mounting hardware, 50 lb load capacity, Two mounting spaces required, Keyboard retracks when not used, Aluminum - brushed, Rack mounted keyboard...
B-LINE
$1,227.47
B-Line Eaton series open racks, 50 lb load capacity, Aluminum, Telco gray powder coat, Rack mounted keyboard tray, sliding with mouse tray
Model: BLN-SB742M19TG
Eaton B-Line series open frame racks, 50 lb load capacity, Aluminum, Telco gray powder coat, Rack mounted keyboard tray, sliding with mouse tray
B-LINE
$1,387.23
Eaton B-Line series open frame racks, Aluminum, #12-24 mounting hardware, Telco gray powder coat, 50 lb load capacity, Keyboard retracks when not used, Rack mounted keyboard tray, sliding/tilting
Manufacturer Resources
Product Specs
- Certifications:
- Not Applicable
- Product Height:
- 5.22 in
- Product Length Depth:
- 12.5 in
- Product Weight:
- 7.5 lb
- Product Width:
- 18.9 in
- Department:
- Electrical
- Product Model:
- Rack mounted keyboard tray, sliding/tilting
- Product Finish:
- Telco gray powder coat
- Product Material:
- Aluminum
B-LINE SB742T19TG – Frequently Asked Questions
1) How much rack depth do I need behind the rails for this B-Line keyboard tray?
Allow at least 12.5 inches of clear depth. That is the tray's stated length/depth, and since it slides out to use and retracts when it is not, the full 12.5 inches has to sit inside the rack behind the mounting rails without hitting cabling or patch panel rear hardware.
2) How much rack space (RU) does the SB742T19TG take up?
The tray is 5.22 inches tall. Rack units are 1.75 inches each, so plan on 3RU of vertical space and check the opening above it so the tilt action has room.
3) What is the difference between a sliding/tilting keyboard tray and a fixed rack shelf?
A fixed shelf is a flat plate that stays put and is used for setting equipment on. The B-Line SB742T19TG is a working keyboard position: it slides out for use, tilts for typing angle, and retracts back into the rack when you are done so it does not block the aisle. If you only need somewhere to park a piece of gear, a plain vented or solid rack shelf is the cheaper and simpler choice.
4) Is the mounting hardware included with the SB742T19TG, or do I order it separately?
#12-24 mounting hardware comes with the tray, so you are not sourcing rack screws separately. Confirm your rack rails are tapped #12-24 rather than 10-32 or square-hole cage nut, because those need different fasteners.
5) Will this keyboard tray rust or corrode in a telecom closet?
The tray is aluminum with a Telco gray powder coat finish, so it will not rust the way a plain steel shelf can, and the coat matches the standard telco gray of B-Line open frame racks and relay racks.
6) What is the exact part number to order for this B-Line rack keyboard tray?
Order Eaton B-Line model SB742T19TG. That single model covers the 19 inch sliding and tilting rack keyboard tray in aluminum with the Telco gray powder coat; there are no finish or size options to specify.
7) Can one person install this tray in an open frame rack?
Yes. At 7.5 lb the tray is a one-person lift and hold while you start the screws into both rails.
