B-Line Eaton series pipe clamps and accessories, 5.81" height, 6" length, "width,Steel, Standard pipe clamp, Electro-plated zinc

Electro-plated zinc on steel is a light-duty corrosion coating meant for dry indoor service, mechanical rooms, and covered interior runs. For a rooftop, a parking structure, a wash-down area or anything exposed to weather, spec a hot-dip galvanized or stainless version of the same clamp instead. The B3140-6ZN body is steel with the electro-plated zinc finish.

5.41 lb each. If you're adding up dead load on a trapeze or a threaded rod drop, count that per hanger point on top of the pipe and contents. Overall height of the clamp is 5.81 inches, which is what you need for clearance between the pipe and the structure above.

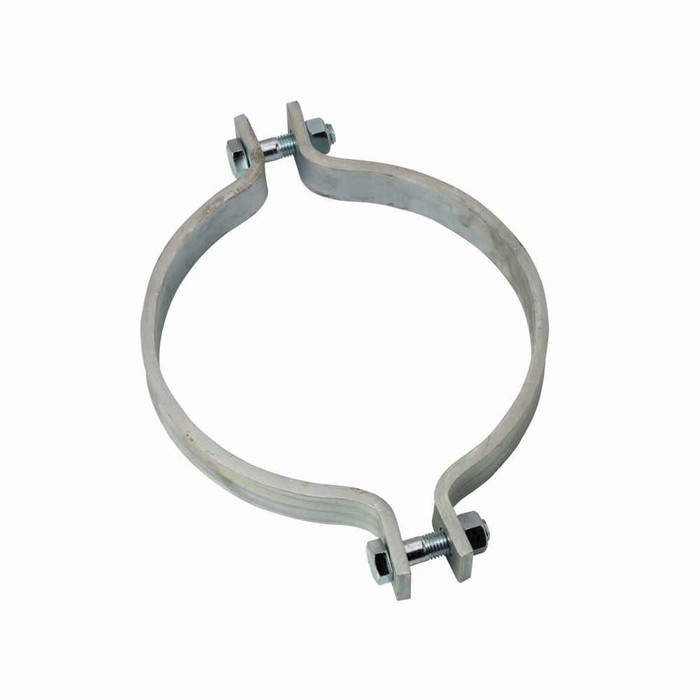

What you're ordering is the clamp itself, the steel two-piece body in electro-plated zinc for 6 inch pipe. Threaded rod, rod couplings, anchors into the deck, and any beam attachment are separate items you order to suit the drop length and the structure you're fastening to. Budget those into the takeoff so the install isn't short on the day.

A standard pipe clamp bolts around the pipe from both sides and grips it, so it holds position on risers and where you don't want the pipe to travel. A clevis hanger cradles the pipe from below and is the usual choice for horizontal runs where the pipe needs to move or sit on an insulation shield. Pick the clamp when you need the pipe held to the support, the clevis when you're simply carrying it.

Order Eaton B-Line part number B3140-6ZN. The B3140 is the clamp series, the 6 is the 6 inch pipe size, and ZN designates the electro-plated zinc finish. Quote that full string when matching what's already installed on a job, since the same body in a different finish carries a different suffix.
