B-Line Eaton series runway spl...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$71.19
$28.93

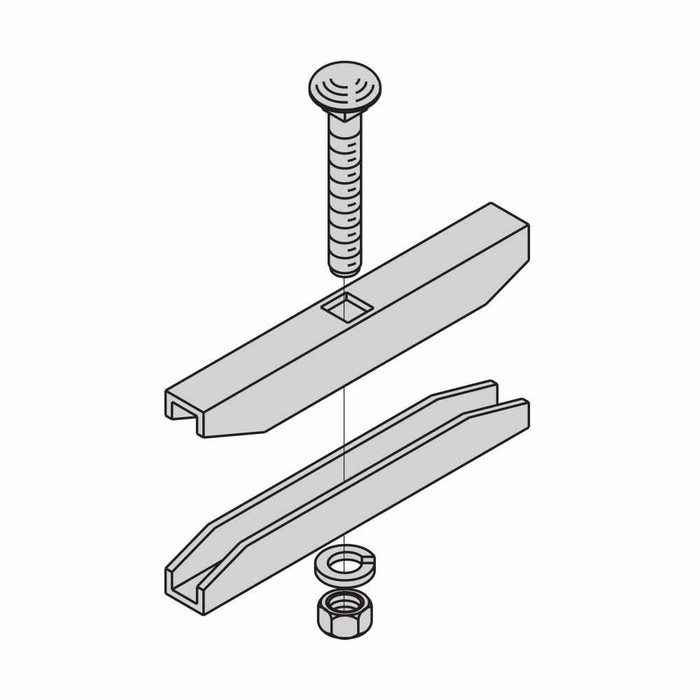

B-Line Eaton series runway splice, Used to connect runway stringers, Includes one lamp and hardware, Cable runway butt-splice clamp and kit, ASTM A570

B-Line Eaton series runway splice, Used to connect runway stringers, Includes one lamp and hardware, Cable runway butt-splice clamp and kit, ASTM A570

(No reviews yet) Write a Review

Model: SB166AYZ
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$71.19
$28.93
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series runway splice, Used to connect runway stringers, Includes one lamp and hardware, Cable runway butt-splice clamp and kit, ASTM A570 structural steel, Yellow zinc finish

Manufacturer Resources

Product Specs

Application:
Used to connect runway stringers
Certifications:
UL Listed
Material Details:
Yellow zinc ASTM A570 steel
Product Height:
1.5 in
Product Length Depth:
5 in
Product Weight:
.48 lb
Product Width:
.62 in
Special Features:
Includes one lamp and hardware
Department:
Electrical
Product Group:
Clamps & Supports
Product Subgroup:
Clamps
Product Type:
Cable runway butt-splice clamp & kit
Product Details:
Cable runway butt-splice clamp & kit

B-LINE SB166AYZ – Frequently Asked Questions

1) What does the B-Line SB166AYZ splice clamp actually do in a cable runway installation?
The Eaton B-Line SB166AYZ is a butt-splice clamp kit used to join runway stringers end to end, so two lengths of cable runway become one continuous run. It ships as a kit with hardware included, so you are not sourcing bolts and nuts separately.
2) Is the mounting hardware included with the SB166AYZ runway splice or do I order bolts separately?
Hardware comes in the kit. The SB166AYZ is supplied as a splice clamp and hardware kit, so the fasteners to pull the stringer joint together are in the box. Note it is one clamp per kit, so a butt joint that calls for a clamp on each stringer side needs the quantity ordered accordingly.
3) Is the Eaton B-Line SB166AYZ runway splice UL Listed?
Yes, the SB166AYZ splice clamp is UL Listed, which is usually what an inspector or a facility spec wants to see on runway support components in a telecom or electrical room.
4) Will a yellow zinc splice clamp hold up in a data center or telecom room?
Yellow zinc plated ASTM A570 structural steel is a standard indoor finish for cable runway in equipment rooms and data centers. It gives corrosion protection for conditioned interior space; it is not a hot-dip galvanized or stainless specification, so for wet, washdown, or exterior runs specify a heavier finish instead.
5) What size is the B-Line SB166AYZ splice clamp?
The clamp measures 5 in length by 1.5 in height by .62 in width and weighs .48 lb. The 5 in length is what spans the butt joint between two stringers, and the .62 in width is worth checking against the stringer channel face you are clamping to.
6) Can I use a butt-splice clamp instead of a junction or corner kit on cable runway?
No. A butt splice like the SB166AYZ joins two stringers in a straight line, end to end. Turns, tees, and elevation changes need the matching corner or junction hardware for that geometry. Buy the splice for straight extensions of a run and the appropriate junction kit where the runway changes direction.
7) How many SB166AYZ splices do I need for a long cable runway run?
Plan one splice joint at every point where two stringer sections meet, and remember each SB166AYZ kit contains a single clamp plus its hardware. A runway has two stringers, so a single butt joint across the run typically takes clamps on both sides. Count your joints, double for the two stringers, and order that many kits.
8) What steel is the B-Line runway splice clamp made from?
ASTM A570 structural steel with a yellow zinc plated finish. A570 is a hot-rolled carbon sheet and strip structural grade, which is what gives the clamp the stiffness to hold a stringer joint tight under cable load.
