B-Line Eaton series runway tub...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$685.29

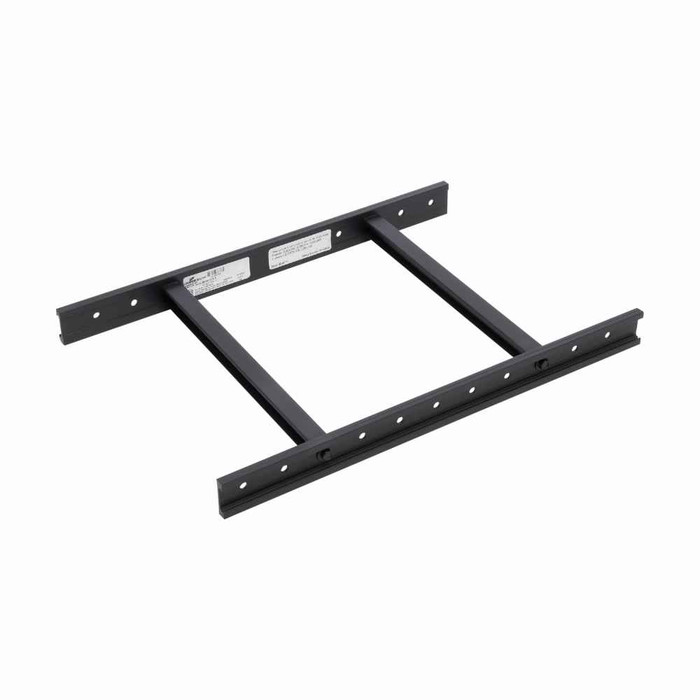

B-Line Eaton series runway tubular, 119" height, 119" length, 9" width, Steel, ASTM A513 steel, 11 gauge, Tubular stringer, Yellow zinc

B-Line Eaton series runway tubular, 119" height, 119" length, 9" width, Steel, ASTM A513 steel, 11 gauge, Tubular stringer, Yellow zinc

(No reviews yet) Write a Review

Model: SB1609AYZ
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$685.29
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series runway tubular, 119" height, 119" length, 9" width, Steel, ASTM A513 steel, 11 gauge, Tubular stringer, Yellow zinc

Manufacturer Resources

Product Specs

Application:
Includes 1/2 x 1 steel channel welded rungs
Certifications:
UL Classified
Material Details:
ASTM A513 steel
Product Height:
119 in
Product Length Depth:
119 in
Product Weight:
25.8 lb
Product Width:
9 in
Department:
Electrical
Product Type:
Tubular stringer
Product Details:
Tubular stringer
Product Material:
Steel

B-LINE SB1609AYZ – Frequently Asked Questions

1) Does the B-Line SB1609AYZ runway section come with splice kits or mounting hardware?
What ships is the runway section itself: two tubular stringers with 1/2 x 1 steel channel rungs welded in. Butt splice kits, wall angle brackets, triangular support brackets, threaded rod hardware, and radius drops are all ordered separately, so count your joints and supports before you place the order.
2) What is the B-Line SB1609AYZ cable runway section and where does it get used?
The Eaton B-Line SB1609AYZ is a tubular stringer cable runway section, 9 inches wide, built for supporting cable in telecom and equipment rooms. It is a steel ladder-style runway made from ASTM A513 tubing with 1/2 x 1 steel channel rungs welded between the stringers. Stringers carry the load, the rungs carry the cable.
3) How much does a 9 inch B-Line cable runway section weigh for overhead support planning?
25.8 lb per 119 inch section before any cable load. That is light enough for a two-man overhead lift, but the threaded rod, wall angle, or trapeze supports still have to carry the section weight plus the full cable fill, so size the hangers off the cable bundle, not the runway.
4) Is the yellow zinc B-Line runway suitable for outdoor or damp locations?
No. Yellow zinc plating on the SB1609AYZ is an indoor finish. It is intended for conditioned equipment rooms, data closets, and telecom spaces. For exterior runs, wet areas, or corrosive environments you want a hot dip galvanized or stainless runway instead.
5) Is B-Line cable runway UL listed for use as an equipment grounding path?
The SB1609AYZ carries a UL Classified marking. Treat that as a product classification only. Bond the runway with a dedicated grounding kit and conductor per the job spec and NEC; do not rely on the steel sections and splices as the ground path on their own.
6) Can I cut the B-Line runway section to length in the field?
Yes, tubular stringer runway is routinely field cut to fit a wall-to-rack run. Cut between rungs, deburr, and cold galvanize or touch up the cut ends, since the yellow zinc plating on the SB1609AYZ stops at the factory edge and bare steel will corrode.
7) What part number do I order for this B-Line runway, and is the material spec suitable for a written job spec?
Order Eaton B-Line SB1609AYZ. The material callout is 11 gauge steel to ASTM A513, which is the spec language to put on the submittal for a tubular stringer runway section 119 inches long by 9 inches wide.
