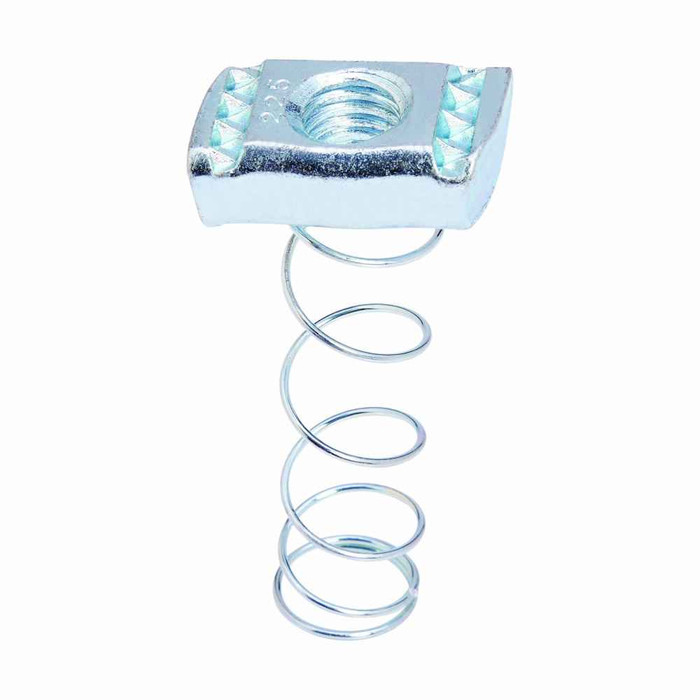

Eaton B-Line series strut channel, nuts, all threaded rod, Steel, Tall channel nuts, Standard nut, Electro-plated zinc finish, 8"-32 thread size
Manufacturer Resources
Product Specs
- Bolt Thread Rod Size:
- 8"-32
- Certifications:
- Not Applicable
- Product Category:
- Tall channel nuts
- Product Height:
- .425 in
- Product Length Depth:
- .92 in
- Product Weight:
- .07 lb
- Product Width:
- .721 in
- Department:
- Electrical
- Product Group:
- Fasteners
- Product Subgroup:
- Washers / Nuts / Bolts / Screws
- Product Type:
- Standard nut
- Product Finish:
- Electro-plated
- Product Details:
- Standard nut
- Product Material:
- Steel
- Product Length:
- 0.92 in
B-LINE N721ZN – Frequently Asked Questions
1) What thread size does the B-Line N721ZN channel nut take?
The N721ZN is a steel channel nut with an 8"-32 thread size, so it mates with 8-32 machine screws or threaded rod of that thread. It is the plain standard nut version (no spring), so you hold it in the strut yourself while you start the fastener.
2) Will a B-Line N721ZN tall channel nut fit inside my strut channel?
Check the nut body against your channel slot before ordering: the N721ZN measures .721 in wide, .425 in high and .92 in long. The width is what has to pass into the channel throat and turn a quarter to seat behind the inturned lips, and the .425 in height is what it takes up inside the channel. It is a tall channel nut, so it sits deeper than a thin nut and grips more of the lip.
3) Is the N721ZN a spring nut or a plain nut?
Plain. It is catalogued as a standard nut, meaning there is no spring to hold it in position while you thread the screw. For overhead work where you cannot get two hands on it, a spring-loaded channel nut is the easier choice; for bench or accessible runs the standard nut does the same job with less cost and no spring to fight.
4) Is the zinc finish on the B-Line N721ZN suitable for outdoor or damp locations?
The finish is electro-plated zinc, which is a light coating intended for dry indoor service, interior electrical rooms, ceiling hangers, plenum runs and the like. For exterior, wash-down or corrosive areas you want a hot-dip galvanized or stainless channel nut instead, since electroplate will not hold up to sustained moisture.
5) What do I need to order with these channel nuts to hang conduit or threaded rod?
The nut alone is just the anchor point in the strut. You still need the fastener that threads into it (an 8-32 screw or rod of matching thread), the strut channel itself, and whatever clamp, strap or hanger the load calls for. Nothing is included with the nut beyond the nut, and no washer is supplied.
6) What is the exact part number for the B-Line tall channel nut in zinc with 8-32 thread?
Eaton B-Line part N721ZN. The ZN suffix is the electro-plated zinc finish, and the nut is steel with an 8"-32 thread. Order by that number if you are standardizing a strut package across a building.
