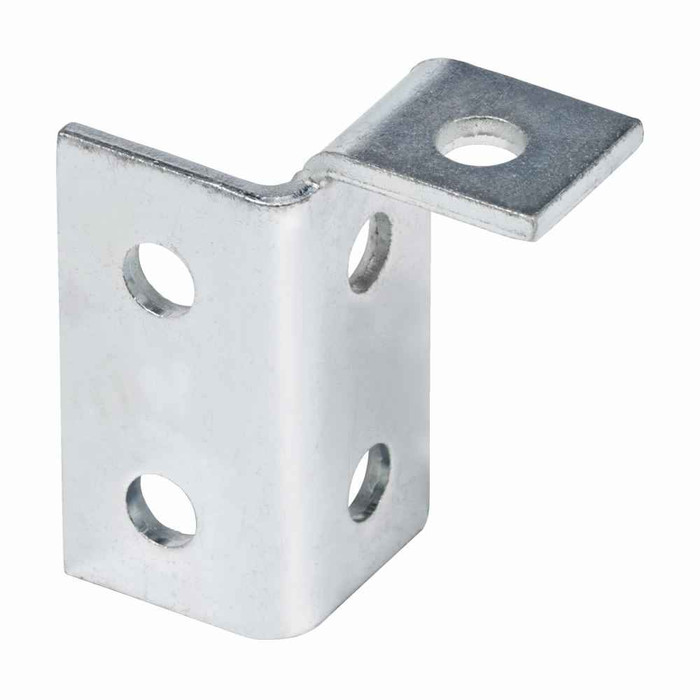

B-Line Eaton series strut fittings and accessories, 3.93" Height, 3.5" Length, 3.5" Width, 1lbs, Steel, Right hand five hole single corner wing fittin

Handing matters. The B268RGRN is the right hand version of the five hole single corner wing fitting, so the wing leg comes off one specific side of the corner. Mounted on the opposite orientation the bolt holes will not line up with your strut run. Confirm which hand the drawing calls for before ordering, since the left hand version is a separate part.

DURA GREEN is Eaton B-Line's coated finish on the steel B268RGRN fitting. It is a coating over steel rather than a bare or plain-finish part, which is what you want when the strut run sees moisture or wash-down rather than a dry indoor ceiling space. Match it to DURA GREEN channel so the whole run ages the same way.

The fitting measures 3.93 in height, 3.5 in length, and 3.5 in width, and weighs 1 lb. That footprint tells you how much clearance the corner needs behind and beside the strut, which matters when you are bracing a run tight to a wall or next to conduit.

Yes. The B268RGRN is the steel fitting only. Strut fittings bolt to channel with channel nuts and hex head bolts sized to the strut, and those are ordered as separate line items. Plan one nut and bolt per hole you intend to use.

Order it as Eaton B-Line B268RGRN. The R in the number is the right hand designation and GRN is the DURA GREEN finish, so distributors cross-referencing a plain or galvanized version of the same fitting will land on a different suffix.

It is a single corner fitting, meaning one piece handles the joint on its own. Pairs are only needed when the design calls for bracing both faces of a run, and in that case you would order the opposite hand as a second part. The right hand unit alone is complete as supplied.
