B-Line Eaton series strut fitt...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$40,699.49
$40,649.49

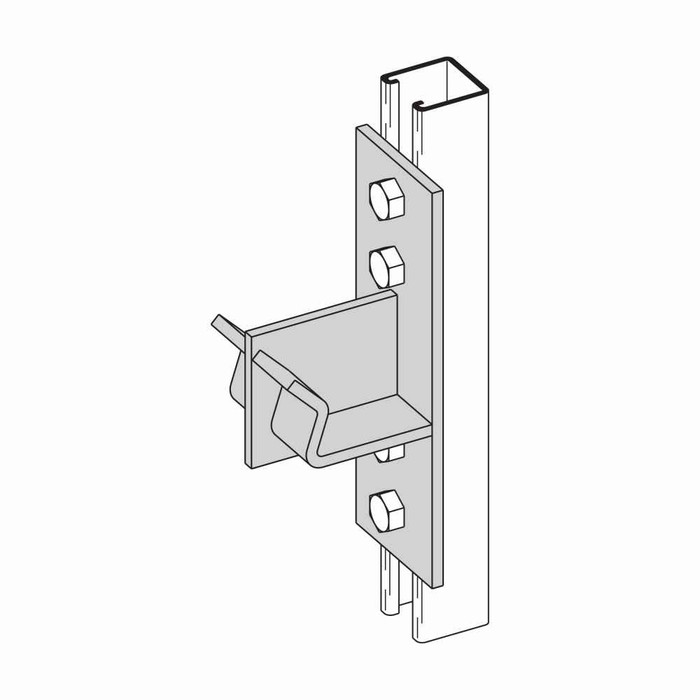

B-Line Eaton series strut fittings and accessories, 9" Height, 3" Length, 1.62" Width, 3.51lbs, Steel, Double reel rack support on single channel for

B-Line Eaton series strut fittings and accessories, 9" Height, 3" Length, 1.62" Width, 3.51lbs, Steel, Double reel rack support on single channel for

(No reviews yet) Write a Review

Model: B473ZN
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$40,699.49
$40,649.49
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series strut fittings and accessories, 9" Height, 3" Length, 1.62" Width, 3.51lbs, Steel, Double reel rack support on single channel for 2" (50) pipe, Electro-plated zinc

Manufacturer Resources

Product Specs

Certifications:
Not Applicable
Product Height:
9 in
Product Length Depth:
3 in
Product Weight:
3.51 lb
Product Width:
1.62 in
Department:
Electrical
Product Group:
Clamps & Supports
Product Subgroup:
Supports
Product Type:
Double reel rack support on single channel for 2" (50) pipe
Product Finish:
Electro-plated
Product Details:
Double reel rack support on single channel for 2" (50) pipe
Product Material:
Steel

B-LINE B473ZN – Frequently Asked Questions

1) What size pipe does the B-Line B473ZN reel rack support take?
The B473ZN double reel rack support is built for 2 inch (50) pipe, which is the axle the wire or cable reels ride on. It mounts on a single run of strut channel. If your reel axle is a different pipe size, this is not the bracket to use.
2) Will this reel rack bracket fit a 1-1/4 inch or 1 inch pipe axle?
No. This support is sized for 2 inch (50) pipe. Smaller pipe will sit loose in the cradle and the reel can shift under load, so match the bracket to the actual axle diameter you're running.
3) Is the B473ZN reel support rated for outdoor or wet locations?
It's an electro-plated zinc steel fitting, which is a standard indoor corrosion finish. For wet, corrosive, or exterior runs, look at a hot dip galvanized or stainless strut fitting instead.
4) How much room do I need above the strut for this reel rack bracket?
The bracket stands 9 inches high, with a 3 inch length/depth and 1.62 inch width, and it weighs 3.51 lb. Plan for at least 9 inches of clear height above the channel plus the diameter of the reel itself.
5) What does double reel rack support mean on a strut channel setup?
Double means the bracket carries two pipe positions off one length of channel, so you can hang two reels side by side on the same strut run instead of building two separate racks. The B473ZN handles 2 inch pipe in those positions.
