B-Line U225 MTBP Eaton series ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$17,724.31

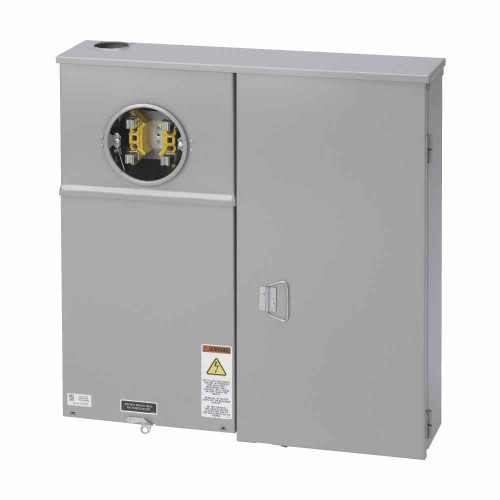

B-Line U225 MTBP Eaton series meter breakers, 100 A, Test block, Ring type, 3R, ANSI 61 gray painted, 010 kAIC, #14-2/0, MCB, Galvanized steel, Side, 7 jaws, 3 poles, Overhead and underground feed

B-Line U225 MTBP Eaton series meter breakers, 100 A, Test block, Ring type, 3R, ANSI 61 gray painted, 010 kAIC, #14-2/0, MCB, Galvanized steel, Side, 7 jaws, 3 poles, Overhead and underground feed

(No reviews yet) Write a Review

Model: U225 MTBP
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$17,724.31
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series meter breakers, 100 A, Test block, Ring type, 3R, ANSI 61 gray painted, 010 kAIC, #14-2/0, MCB, Galvanized steel, Side, 7 jaws, 3 poles, Overhead and underground feed

Manufacturer Resources

Product Specs

Amperage Rating:
200A
Certifications:
UL
Compliances:
EUSERC Approved
Interrupt Rating:
200 kAIC
Product Height:
30 in
Product Length Depth:
6 in
Product Weight:
62 lb
Product Width:
22 in
Department:
Electrical
Product Finish:
ANSI 61 gray paint
Product Material:
Galvanized steel

B-LINE U225 MTBP – Frequently Asked Questions

1) Can the B-Line U225 MTBP meter breaker be mounted outdoors?
Yes. The U225 MTBP is a 3R enclosure, so it is rated for outdoor use against rain and falling water. The shell is galvanized steel finished in ANSI 61 gray paint, which is the standard utility gray used on service equipment.
2) Will the U225 MTBP work where the utility requires a ringless socket?
No. The U225 MTBP is a ring type meter socket, meaning the meter is retained by a sealing ring. If your utility specifies a ringless cover, this is the wrong unit and you need a ringless version instead. Utility socket style is not field convertible, so confirm the requirement with the serving utility before ordering.
3) Is this meter breaker single phase or three phase?
The U225 MTBP is built with 7 jaws and a 3 pole main circuit breaker, which is a three phase configuration. A 4 jaw socket with a 2 pole breaker would be the single phase equivalent, so do not substitute this unit into a single phase residential service.
4) What size service conductors will land in the U225 MTBP?
The lug range is #14 through 2/0, covering copper or aluminum in that band. If your service conductors are larger than 2/0, this unit will not take them and you need a socket with a bigger terminal range.
5) Will this meter breaker pass a utility inspection that requires EUSERC drawings?
The U225 MTBP is EUSERC Approved and UL listed. EUSERC approval is what most western utilities require on metered service equipment, so the unit is built to those standard drawings rather than to a generic pattern.
6) Does the U225 MTBP accept an overhead service drop or an underground lateral?
Both. The unit is built for overhead and underground feed, so the same enclosure works whether the service conductors come down from a mast or up from a lateral. That saves you from stocking two different meter breakers across a mixed site.
7) How much wall space and clearance do I need for the U225 MTBP enclosure?
Plan for 30 inches high by 22 inches wide with a 6 inch depth off the wall. At 62 pounds it is a two-person lift onto the mounting surface, and the backing needs to be solid enough to carry that load plus the service conductors.
8) Does the U225 MTBP include a test block, and where are the conduit entries?
A test block is built in, so the utility can test or bypass the meter without pulling service conductors. The unit is configured for side entry, so route your conduit to the side of the enclosure rather than assuming a bottom hub.
9) Is the main breaker included with this meter socket or do I buy it separately?
The main circuit breaker is part of the assembly. The U225 MTBP is a combination meter breaker with an MCB in 3 pole form, so the metering section and the service disconnect come as one unit. You still need downstream distribution gear fed from it.
10) What is the exact part number to order this Eaton B-Line meter breaker?
Order it as Eaton B-Line U225 MTBP. That designation covers the 3R galvanized steel enclosure in ANSI 61 gray with the ring type 7 jaw socket, test block, and 3 pole main breaker.
