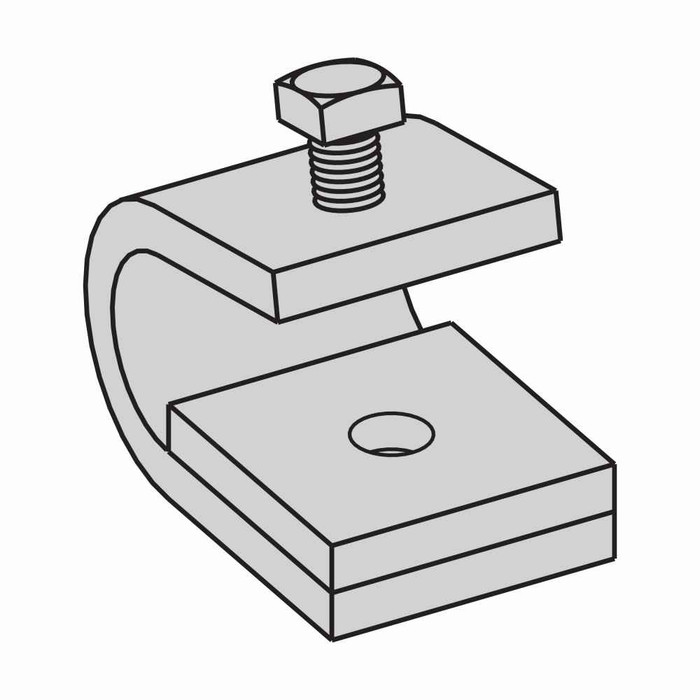

B210AZN
Manufacturer Resources
Product Specs
- Beam Flange Width:
- .25 in
- Certifications:
- UL Listed
- Load Capacity:
- 300 lb
- Product Height:
- 7.25 in
- Product Length Depth:
- 1.5 in
- Product Weight:
- .6 lb
- Product Width:
- .75 in
- Special Features:
- Safety factor of 5, 3/8"- 16 setscrew included
- Department:
- Electrical
- Product Group:
- Clamps & Supports
- Product Subgroup:
- Clamps
- Product Type:
- Beam clamp
- Product Details:
- Beam clamp
- Product Material:
- Steel
B-LINE B210AZN – Frequently Asked Questions
1) What beam flange thickness does the B-Line B210AZN clamp fit?
The B210AZN is sized for a .25 in beam flange. Measure the flange edge on your beam before ordering; a thicker flange will not seat correctly in this clamp and you need a different size in the series.
2) Is the B-Line B210AZN beam clamp UL Listed for electrical support work?
Yes, the B210AZN carries a UL Listing, which is what most inspectors and institutional specs want to see on overhead conduit and fixture support hardware in commercial buildings.
3) Does the B-Line B210AZN come with the setscrew, or do I order it separately?
The 3/8 in-16 setscrew ships with the B210AZN, so nothing extra is needed to clamp it to the beam. You will still need to supply the threaded rod or hanger hardware for whatever you are suspending.
4) How much clearance do I need around the beam to install a B210AZN clamp?
The B210AZN measures 7.25 x 1.5 x .75 inches, so the long dimension is what governs your clearance. In tight ceiling cavities or where ductwork runs close to the beam flange, check that space before you get on the lift.
5) Can I use a beam clamp instead of drilling the structural steel for conduit hangers?
That is exactly what a beam clamp like the B210AZN is for. It grips the beam flange and tightens with the included 3/8 in-16 setscrew, so no welding and no holes drilled in structural members, which most structural engineers will not approve anyway. Rated at 300 lb with a safety factor of 5. The tradeoff is that it only suits a beam of the right flange thickness, .25 in here; for concrete decks or non-flanged structure you want an anchor or insert instead.
6) What is the B-Line B210AZN made of and will it hold up in a mechanical room?
Steel construction, weighing .6 lb per clamp. Steel is standard for interior structural attachment in mechanical rooms, parking structures, and plenum spaces where the clamp carries a sustained static load.
7) What is the manufacturer part number for this B-Line beam clamp?
B210AZN is the B-Line part number, ordered as a single model with no size or finish options to specify.
