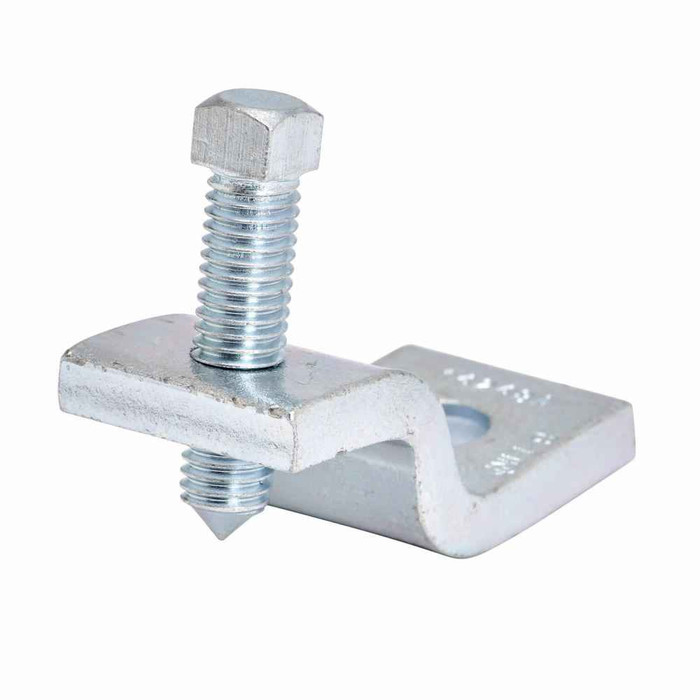

B211HDG
Manufacturer Resources
Product Specs
- Beam Flange Width:
- 1 in
- Certifications:
- UL Listed
- Load Capacity:
- 600 lb
- Product Height:
- 7.5 in
- Product Length Depth:
- 1.5 in
- Product Weight:
- .66 lb
- Product Width:
- 3.75 in
- Special Features:
- Safety factor of 5, 1/2”- 13 Setscrew included
- Department:
- Electrical
- Product Group:
- Clamps & Supports
- Product Subgroup:
- Clamps
- Product Type:
- Zee beam clamp
- Product Details:
- Zee beam clamp
- Product Material:
- Steel
B-LINE B211HDG – Frequently Asked Questions
1) What beam flange thickness does the B-Line B211HDG zee beam clamp fit?
The B211HDG is sized for a 1 inch beam flange width. It clamps to the flange edge and tightens with the included 1/2 inch-13 setscrew, so the flange it grips needs to fall within that 1 inch rating. On a wider or thicker flange you need a larger clamp.
2) Do I need to buy a separate setscrew or bolt with the B-Line B211HDG?
No extra fastener is needed to clamp it. A 1/2 inch-13 setscrew ships with the B211HDG. What you do supply is whatever hangs below it, hanger rod, strut, or conduit hanger, since none of that is part of the clamp.
3) Is the B211HDG beam clamp UL Listed for electrical support work?
Yes, the B-Line B211HDG carries a UL Listed marking, which is what most inspectors and institutional specs want to see on conduit and cable support hardware in commercial buildings.
4) Is the B211HDG galvanized for outdoor or damp locations?
It is a steel clamp with an HDG (hot dip galvanized) designation in the part number, which is the finish B-Line uses for exterior, parking structure and wash-down areas where plain plated steel would rust.
5) Can I use a zee beam clamp instead of drilling the structural steel?
That is the point of it. The B211HDG grips the beam flange and is tightened down with its setscrew, so nothing gets drilled or welded into the structure, which is usually what the structural engineer wants. It is a mechanical clamp only, rated to 600 lb, so anything beyond that load needs an engineered attachment.
