You may also like
B2127ZN
Manufacturer Resources
Product Specs
- Bolt Pin Size:
- 3/8"-16
- Certifications:
- Not Applicable
- Load Capacity:
- 1000 lbs
- Product Height:
- .12 in
- Product Length Depth:
- 12.044 in
- Product Weight:
- 1.25 lb
- Product Width:
- 1.25 in
- Special Features:
- Include combination recess hex head machine screw
- Department:
- Electrical
- Product Group:
- Conduit & Fittings
- Product Subgroup:
- Conduit Accessories
- Product Type:

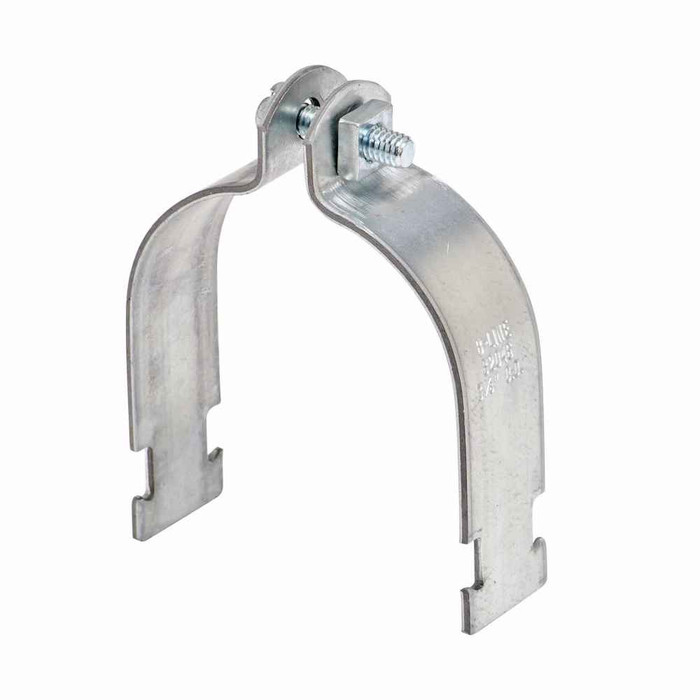

- O.D pipe conduit clamp
- Product Details:
- O.D pipe conduit clamp
- Product Material:
- Steel
B-LINE B2127ZN – Frequently Asked Questions
1) What size bolt does the B-Line B2127ZN conduit clamp take?
The B2127ZN takes a 3/8"-16 bolt. It ships with a combination recess hex head machine screw, so the fastener that closes the clamp is included, but any rod, strut nut, or anchor you are mounting it to is separate.
2) How much weight can the B-Line B2127ZN pipe clamp hold?
Rated at 1000 lbs load capacity. That is the clamp itself; the actual hanger load is still limited by whatever the 3/8"-16 bolt threads into, so size the rod and anchor for the same or greater load.
3) Is the B-Line B2127ZN sized by pipe O.D. rather than trade size?
Yes. It is an O.D. pipe conduit clamp, so it is selected off the measured outside diameter of the pipe or conduit, not the nominal trade size. Measure the actual O.D. of the run before matching a clamp, since copper, steel pipe, and EMT of the same nominal size do not share an O.D.
4) What material is the B2127ZN clamp and is it suitable for damp locations?
Steel, with a zinc finish. Zinc plated steel is fine for indoor and dry or normally damp interior runs. For direct outdoor exposure, wash-down, or corrosive environments, step up to a hot dip galvanized or stainless clamp instead.
5) What are the dimensions of the B-Line B2127ZN clamp?
The B2127ZN measures 12.044 in length/depth, 1.25 in width, and .12 in height, and weighs 1.25 lb. The 1.25 in width is the strap width, which is what matters when you are spacing clamps on a strut or fitting them between adjacent conduit runs.
6) Do I need to order hardware separately for the B-Line B2127ZN?
The closing screw is in the box, a combination recess hex head machine screw for the 3/8"-16 bolt size. What you add is the attachment side: threaded rod, strut nut, beam clamp, or anchor, plus the nut and washer at the structure. Order those to match a 3/8" thread.
7) Does the B2127ZN clamp come with any listing or certification?
No certification or listing applies to the B2127ZN. If your specification calls for a listed or labeled support component, this is not the part to submit.
8) Can I use the B2127ZN on a plumbing pipe run, or is it electrical only?
It is catalogued for electrical work but it is a general O.D. pipe clamp in steel, so it holds pipe as readily as conduit as long as the pipe outside diameter matches the clamp and the 1000 lb capacity covers the span load. Pair it with an isolator if you are clamping copper to steel.
