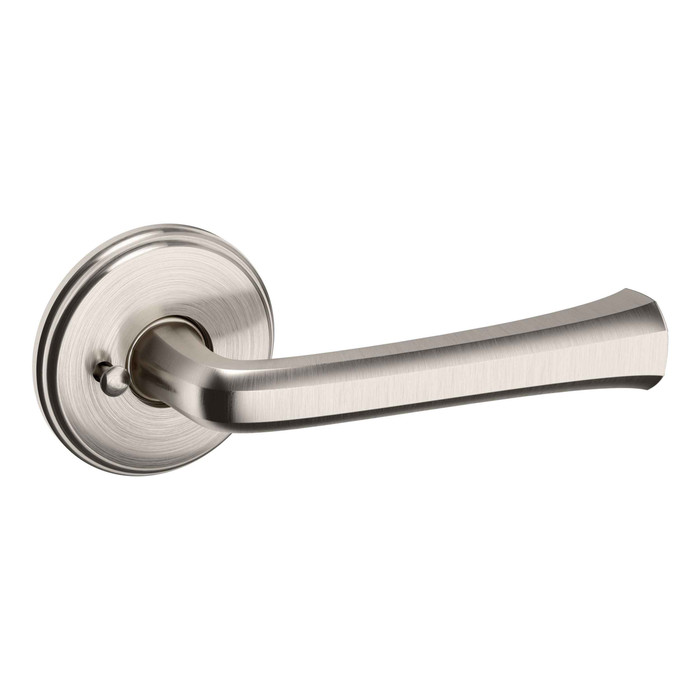

Baldwin 5112 Lever Privacy with 5075 Rose
- Knob or lever set paired with roses without a privacy or locking feature to close and secure any door with the 2.125" standard door preparation.
- Passage sets include everything needed to install the lock onto your door.
- Dependability, quality, and high design. Baldwin's Quick Ship items are ready to ship to you within 5 business days from ordering.
- Perfectly blending a mix of traditional and modern creates a cohesive transitional style, embodied within the design of this item.
- Our Lifetime Satin Nickel finish is create by nickel-plating solid brass, to bring about the beauty of the warm and smooth silver tone, combined with the weight and quality of brass. This satin, matte-like PVD finish is extremely durable and is backed by our Limited Lifetime Finish™ Warranty.
SPECIFICATIONS
LOCK TYPE
Tubular Mortise
STYLE
Contemporary
LOCK FUNCTION
Privacy
BACKSET SIZE
2-3/8"
LEVER GRIP LENGTH
4.7"
PROJECTION
2.6"
MAXIMUM DOOR THICKNESS
1.75"
MINIMUM DOOR THICKNESS
1.375"
LEVER HANDING
Reversible
LEVER ROSE SHAPE
Round
INSTALLATION AND SUPPORTWARRANTYINSTALLATION GUIDE
Manufacturer Resources
Product Specs
- Product Group:
- Mechanical Locks
- Product Type:
- Leversets
- Subcategory:
- Lever Handle
- Product Subgroup:
- Bored Locksets
- Commercial/Residential:
- Residential
- Lever Grip Length:
- 4.7"
- Lever Rose Shape:
- Round
- Lock Function:
- Privacy
- Maximum Door Thickness:
- 1.75"
- Minimum Door Thickness:
- 1.375"
- Product Attribute:
- Cylindrical Locks
- Product Model:
- 5112.PRIV
- Product Function:
- Privacy/Bed/Bath
- Door Hand Direction:
- Reversible
- Product Projection:
- 2.6"
- Product Category:
- Mechanical Locks
- Backset (Distance):
- 2-3/8"
- Department:
- Door Hardware
Baldwin 5112003PRIV – Frequently Asked Questions
1) Will the Baldwin 5112 privacy lever fit a 1-3/8 inch interior door?
Yes. The Baldwin 5112 privacy leverset covers doors from 1.375 inches up to 1.75 inches thick, so both a standard 1-3/8 inch interior door and a 1-3/4 inch door are in range. Anything thicker than 1.75 inches is out.
2) What backset does the Baldwin 5112 lever need, and will it drop into an existing bored door?
It is set up for a 2-3/8 inch backset, which is the common residential bore location, and it uses the 2-1/8 inch standard door preparation. If your existing door is bored 2-1/8 inches with a 2-3/8 inch backset, the 5112 goes straight in. Doors prepped at a 2-3/4 inch backset need a different lock.
3) Do I have to order the Baldwin 5112 lever handed for a left or right door?
No handing to specify. The 5112 lever is reversible, so one set works on a left or right hand door and you can field-adjust it on site. That also makes it easier to stock a single item for a whole house or unit turn.
4) Is the Baldwin 5112 a keyed lock or a bed and bath privacy set?
Privacy function, meant for bedrooms and bathrooms. It locks from inside the room and there is no key cylinder. For a door that needs to be keyed, look at an entrance function lever instead.
5) Is the Baldwin 5112 lever rated for a commercial building or an apartment corridor?
It is a residential leverset, suited to houses, condos, and in-unit multi-family doors. For commercial traffic or an institutional spec, go with a Grade 1 or Grade 2 cylindrical lever such as the Falcon K101 (Grade 1, heavy duty) or the Hager 2540 Grade 2 privacy lever.
6) What is a lower-cost privacy lever alternative to the Baldwin 5112 for bedroom and bath doors?
The Kwikset 300BRNL RDT Breton privacy lever set is a Grade 3 privacy/bed/bath leverset that fits doors 1-3/8 inch to 1-3/4 inch thick, which covers the same residential door range the Baldwin 5112 privacy lever handles at 1-3/8 inch minimum to 1-3/4 inch maximum. The Baldwin 5112 is a solid-brass residential set offered in 11 finishes from polished brass to satin black; the Kwikset Breton is a residential-duty set with a round rose. Both are non-keyed privacy function.
7) I need a privacy lock for a commercial bathroom instead of the Baldwin 5112 - what should I use?
The Baldwin 5112 privacy lever is a residential set. For a commercial restroom, the Hager 2540 is a Grade 2 privacy cylindrical lock with the Withnell lever for doors 1-3/8 inch to 2 inch thick, and the Arrow MK02-TA is a privacy cylindrical lock with a Tudor knob carrying a fire rating for doors 1-3/4 inch to 2 inch. The Arrow is a knob rather than a lever, so if ADA lever operation is required in the facility the Hager is the lever option.
8) My door is thicker than 1-3/4 inch - what lever works where the Baldwin 5112 will not?
The Baldwin 5112 tops out at a 1.75 inch maximum door thickness. For thicker slabs, the Falcon K101 Grade 1 passage lever covers 1-3/8 inch to 2-1/4 inch, and the Hager 2510 Grade 2 passage lever covers 1-3/8 inch to 2 inch. Both are passage function rather than privacy, so confirm whether the opening needs an inside lock before substituting.
9) How far does the Baldwin 5112 lever stick out from the door, and how long is the lever?
Projection is 2.6 inches off the face of the door and the lever grip measures 4.7 inches. Those two numbers matter where a door swings back against a wall, a cabinet, or another door in a tight hall, and for clearance behind a door stop.
10) What finishes does the Baldwin 5112 privacy lever come in so I can match the rest of my doors?
Eleven finishes: Polished Brass (003), Non-Lacquered Brass (031), Vintage Brass (033), Satin Brass (044), Polished Nickel (055), Satin Nickel (056), Graphite Nickel (076), Oil Rubbed Bronze (102), Venetian Bronze (112/11P), Satin Black (190), and Polished Chrome (260). Matching the Baldwin finish number across your other openings is the reliable way to keep a whole floor consistent.
11) Does the Baldwin 5112 come with the latch and strike, or do I need to buy those separately?
The set ships with everything needed to install it on the door, latch and strike included, so no separate latch order for a standard 2-1/8 inch bored door. What it does not include is a deadbolt, which is a separate item if the opening needs one.
12) I need a matching passage lever for the hall and closet doors next to a privacy bath. What pairs with this?
The 5112 is the privacy version, so for hall and closet doors you want the same 5112 lever in passage function, which latches without any locking. Keeping the finish number identical across both functions is what makes the openings read as a set.
13) What do I order if the door does not need to lock, in the same style family as the Baldwin 5112 privacy lever?
For a hall or closet door that only needs a latch, use a passage leverset instead of the Baldwin 5112 privacy function. Options include the Bravura Atlanta round-trim Grade 2 passage leverset and the Bravura Miramar round-trim passage leverset in US4 satin brass, both round-rose designs like the Baldwin 5075 rose. The Callan Asheville is a Grade 3 passage leverset in satin nickel if you are matching a nickel finish.
14) Can I use a Dexter C1000 passage lever in place of the Baldwin 5112 privacy lever?
No. The Dexter C1000 passage lever is a Grade 1 non-keyed passage function with clutching levers for doors 1-3/8 inch to 1-3/4 inch thick - it latches but has no thumbturn, so a bathroom or bedroom door fitted with it cannot be locked from inside. The Baldwin 5112 is a privacy function with the inside locking feature. The Dexter is a correct substitute only where the door does not need to secure.
15) Is a dummy lever the same as the Baldwin 5112 privacy lever?
No. A dummy lever such as the Emtek Cortina dummy pair or the Callan Bentley Grade 2 dummy lever is surface-mounted trim with no latch and no locking mechanism, used on inactive or closet doors. The Baldwin 5112 is a privacy leverset with a working latch on a 2-3/8 inch backset and an inside lock. Buy dummies only for the inactive leaf of a pair.
16) What should I specify instead of the Baldwin 5112 for a high-traffic institutional corridor?
The Baldwin 5112 is a residential leverset. For institutional traffic, the Falcon T101 is a Grade 1 heavy-duty cylindrical passage lever, the Corbin Russwin CL3110 is a Grade 1 vandal-resistant passage lever with a fire rating for doors 1-3/4 inch to 2 inch, and the Design Hardware X75 is a Grade 1 passage lever for 1-3/4 inch doors. These are passage function; for a keyed institutional opening the Cal-Royal AG05 is a Grade 2 storeroom lever with a deadlocking latchbolt.
17) I want keyless code entry instead of the Baldwin 5112 privacy lever - what are the options?
The Baldwin 5112 is a mechanical privacy lever with no code entry. For keyless operation, the Lockey 2835 mechanical pushbutton lever lock is ADA compliant with passage function for doors 1 3/16 inch to 2 inch, the Lockey 1150 is a heavy duty mechanical keypad lever set for 1-1/8 inch to 2 inch doors, and the Delaney LP250 is a Grade 2 electronic keypad leverlock. All three are used on doors that need controlled access rather than simple bath privacy.
18) What shape is the rose on the Baldwin 5112, and will it cover the old bore hole?
The 5075 rose is round. A round rose sits concentric over the 2-1/8 inch cross bore, so it hides the existing hole and any minor edge chipping from the previous lock. If you want a square trim look instead, the Bravura Tampa leverset uses square trim.
19) Is the Bravura Tampa a match for the Baldwin 5112 with 5075 rose?
Not a visual match. The Baldwin 5112 uses the round 5075 rose, while the Bravura Tampa passage leverset is a Grade 2 set with square trim. If you are carrying a round rose across the openings, the Bravura Orlando or Atlanta round-trim passage leversets align with the rose shape, though both are passage rather than the 5112 privacy function.
