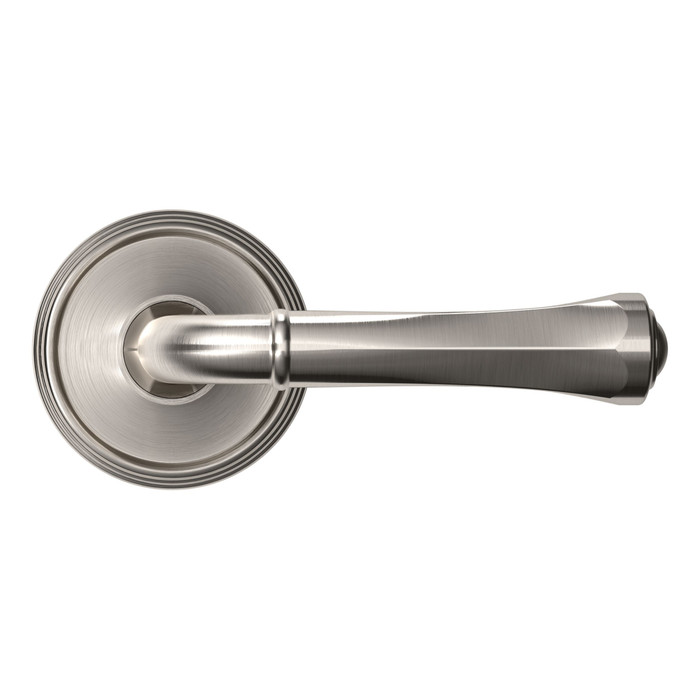

Baldwin 5113 Lever Passage w/ 5078 RoseKEY FEATURES
- Knob or lever set paired with roses with a privacy lock to both close and secure any door with the 2.125" standard door preparation.
- Privacy sets include everything needed to install the lock onto your door.
- Dependability, quality, and high design. Baldwin's Quick Ship items are ready to ship to you within 5 business days from ordering.
- Familiar and comforting, this item in its traditional style is timeless and classic.
- Baldwin’s Satin Brass is a smooth, matte finish with golden, warm tones. This Lifetime Finish is created to add a subtle gleam to the hardware for years to come, and comes with a Limited Lifetime Finish Warranty.
SPECIFICATIONS
LOCK TYPE
Tubular
STYLE
Contemporary
LOCK FUNCTION
Passage
BACKSET SIZE
2-3/8"
LEVER GRIP LENGTH
4.5"
PROJECTION
3"
MAXIMUM DOOR THICKNESS
1.75"
MINIMUM DOOR THICKNESS
1.375"
LEVER HANDING
Reversible
LEVER ROSE SHAPE
Round
INSTALLATION AND SUPPORTINSTALLATION GUIDEWARRANTY
Manufacturer Resources
Baldwin 2025 Cabinet Hardware Lookbook
Product Specs
- Product Group:
- Mechanical Locks
- Product Type:
- Leversets
- Subcategory:
- Lever Handle
- Product Subgroup:
- Bored Locksets
- Commercial/Residential:
- Residential
- Lever Grip Length:
- 4.5"
- Lever Rose Shape:
- Round
- Lock Function:
- Passage
- Maximum Door Thickness:
- 1.75"
- Minimum Door Thickness:
- 1.37"
- Product Model:
- 5113.PASS
- Door Hand Direction:
- Reversible
- Product Projection:
- 3"
- Product Category:
- Mechanical Locks
- Backset (Distance):
- 2-3/8"
- Department:
- Door Hardware
Baldwin 5113003PASS – Frequently Asked Questions
1) Do I have to order the Baldwin 5113 lever left or right handed?
No handing to specify. The 5113 lever is reversible, so one part number covers left and right hand doors and you can field-adjust it on site. That makes it easy to buy in quantity for a building without tracking swing door by door.
2) My door is 2 inches thick. Which passage lever fits if the Baldwin 5113 does not?
The Baldwin 5113 covers doors from 1.375 inch to 1.75 inch thick, so a 2 inch door is outside its range. The Falcon K101 Grade 1 passage lock covers 1-3/8 inch to 2-1/4 inch. The Hager 2510 Grade 2 passage lever with the Withnell design covers 1-3/8 inch to 2 inch. The Arrow GL01 Grade 2 passage lock with the Sierra lever covers 1-3/4 inch to 2 inch, as does the Corbin Russwin CL3110 passage lever.
3) The Baldwin 5113 passage lever does not lock. What should I use on a bedroom or bathroom door instead?
The 5113 is a passage function, so it latches but never locks. For bed and bath openings, the Kwikset 300BRNL Breton is a Grade 3 privacy leverset for doors 1-3/8 to 1-3/4 inch thick. The Hager 2540 is a Grade 2 privacy cylindrical lock with the Withnell lever for 1-3/8 to 2 inch doors. In knob trim, the Arrow MK02-TA is a privacy cylindrical lock with a Tudor knob, non-keyed, and carries a fire rating.
4) Is there a round-rose passage leverset similar to the Baldwin 5113 but rated Grade 2?
Yes. The Baldwin 5113 uses a round 5078 rose in a passage function. The Bravura Atlanta and Bravura Orlando are both Grade 2 passage leversets with round trim, and the Bravura Miramar with round trim is a Grade 2 passage leverset offered in US4 satin brass. If the design calls for square trim instead, the Bravura Tampa is the Grade 2 passage leverset with square trim.
5) Will a dummy lever work in place of a Baldwin 5113 passage set on a closet door?
No, they do different jobs. The 5113 passage set has a working latch that holds the door closed. A dummy is surface-mounted trim with no latch at all, so it only pulls a door that is held by a ball catch or roller. Dummy options include the Accentra 455LN Augusta Grade 1 single dummy, the BEST 9K Series 1DT Grade 1 heavy duty single dummy trim, the BEST 7KC 1DT Grade 2 single dummy, the Callan Bentley Grade 2 dummy lever, and the Emtek Cortina dummy sold as a pair.
6) How far does the Baldwin 5113 lever stick out from the door, and how long is the lever?
Projection is 3 inches off the face of the door, with a 4.5 inch lever grip. Worth checking against wall returns, adjacent door casings, and any door that swings back against a jamb or a cabinet, since a 3 inch projection on a 4.5 inch lever can catch.
7) What finishes does the Baldwin 5113 lever with 5078 rose come in?
Eleven finishes: Polished Brass (003), Non-Lacquered Brass (031), Vintage Brass (033), Satin Brass (044), Polished Nickel (055), Satin Nickel (056), Graphite Nickel (076), Oil Rubbed Bronze (102), Venetian Bronze (112/11P), Satin Black (190) and Polished Chrome (260). Baldwin's Satin Brass is a smooth matte with warm golden tones, which is the one to pick when you are matching older unlacquered brass trim.
8) Is the latch and strike included with the Baldwin 5113, or do I order those separately?
Everything needed to install the lock on the door comes in the box, so no separate latch or strike order. What you do need to confirm is the existing prep: the 5113 works in the 2.125 inch standard door preparation with a 2-3/8 inch backset.
9) What is the exact model number to order the Baldwin 5113 passage lever?
Order it as Baldwin 5113.PASS, the 5113 lever in passage function with the 5078 round rose, then add the finish code (for example 044 for Satin Brass). It is a tubular lockset, not a mortise lock, so it needs only a standard bore and latch prep.
10) Can I use the Baldwin 5113 passage lever on a 2-3/4 inch backset door prep?
The Baldwin 5113 is built for a 2-3/8 inch backset. If the existing prep is 2-3/4 inch, the Cal-Royal AG03 classroom lever is listed at a 2-3/4 inch backset, and the Lockey 1150S keypad lever set has an adjustable backset. Those are different functions than passage, so confirm the opening needs before substituting.
11) What passage lever should I standardize on across a school or institutional building instead of the Baldwin 5113?
The Baldwin 5113 is a residential passage lever. For institutional standardization, the Falcon K101 is a Grade 1 passage lock, heavy duty, fire rated, with non-handed levers. The Falcon T101 is a Grade 1 heavy duty passage lever with pressure release technology. The Design Hardware X75 is a Grade 1 passage lever lockset with a flat lever for 1-3/4 inch doors, and the Design Hardware J75 is the Grade 2 counterpart. Keyed functions in the same families include the Dexter C1000 classroom and classroom security levers, both Grade 1.
12) I need a keyed lever for an office door, not the Baldwin 5113 passage. What are the options?
The 5113 is non-keyed passage trim. For keyed office openings, the Falcon B511CP6D is a Grade 2 cylindrical lever with entry/office function, and the Cal-Royal AUS00 is a Grade 3 entrance/office lever with a solid brass forged body for 1-3/8 to 1-3/4 inch doors. The Hager 2525 is a Grade 2 commercial cylindrical entry lock with a lever handle for 1-3/8 to 2 inch doors. For a storeroom opening, the Cal-Royal AG05 is a Grade 2 storeroom lever with a deadlocking latchbolt.
13) What is a simpler passage leverset alternative to the Baldwin 5113 for rental turnovers?
The Baldwin 5113 is a residential passage lever with a 4.5 inch grip and a 3 inch projection. Lighter-duty passage alternatives include the Kwikset 200BRNL Breton, a Grade 3 passage lever for 1-3/8 to 1-3/4 inch doors, the Kwikset 200DL Delta passage lever which is reversible and ships with an adjustable 6AL latch and RCS strike, and the Callan Asheville Grade 3 passage leverset in satin nickel. The Kwikset 200DL-RCALFD version comes with a round corner adjustable 20 minute UL latch and round corner strike.
14) Is the Accentra 5301LN Augusta a substitute for the Baldwin 5113 passage lever?
Both are passage function levers, so the opening behavior matches: latch only, no lock, no key. The Baldwin 5113 is a residential tubular set with a round 5078 rose and a 2-3/8 inch backset, offered in finishes such as polished brass, satin nickel, oil rubbed bronze and satin black. The Accentra 5301LN Augusta is a Grade 2 cylindrical lever in the 5300 Series, and the Accentra 4601LN is the Grade 2 passage lever in the 4600 Series with Augusta trim. The trim styling and rose diameter differ, so they will not line up cosmetically with other Baldwin 5078 rose doors.
15) If I want keyless code entry on a door instead of the Baldwin 5113 passage lever, what lever locks do that?
The 5113 is a mechanical non-keyed passage set with no code entry. For pushbutton access, the Lockey 2835 is a mechanical pushbutton keyless lever lock with passage function and ADA compliance for doors 1-3/16 inch to 2 inch, and the 2835DC adds a double combination. The Lockey 1150 is a heavy duty mechanical keypad lever set with double combination and passage function for 1-1/8 inch to 2 inch doors, with the 1150S offering an adjustable backset. Electronic options include the Delaney LP250 Grade 2 keypad leverlock and the Emtek Classic keypad leverset.
16) I want a decorative lever like the Baldwin 5113 but with an entry function for a front door. What matches that look?
The Baldwin 5113 is a contemporary-styled passage lever on a round rose, non-keyed. For a keyed front door in a similarly decorative vein, Deltana offers several entry levers: the 5851 Claremont, the 6201 Manchester, the 6411 Morant and the 6431 Linstead, with the Manchester, Morant and Linstead covering doors 1-3/8 inch to 2 inch thick. The Callan Bennett is a Grade 3 entrance leverset supplied as a deadbolt combo.
17) I need a matching non-functioning lever for a closet or a false door. What pairs with a Baldwin 5113 look?
The 5113 is a working passage set, so it is not a dummy. For a fixed trim lever we carry Emtek dummy pairs in the Arts & Crafts, Hammered and Cortina levers, the Callan Bentley Grade 2 dummy, and Grade 1 and Grade 2 single dummy trims from BEST (9K Series 1DT and 7KC Series). None of those match Baldwin's 5113 lever shape, so if the look has to match across a run of doors, keep the whole run in one family.
18) What shape is the rose on the Baldwin 5113, and does it cover an old knob rose footprint?
The 5078 rose is round. A round rose generally covers the ring left by a previous round-rose knob or lever of similar diameter, but it will not hide the outline of a square or rectangular escutcheon plate. If your existing trim is square, the Bravura Tampa passage leverset uses square trim.
