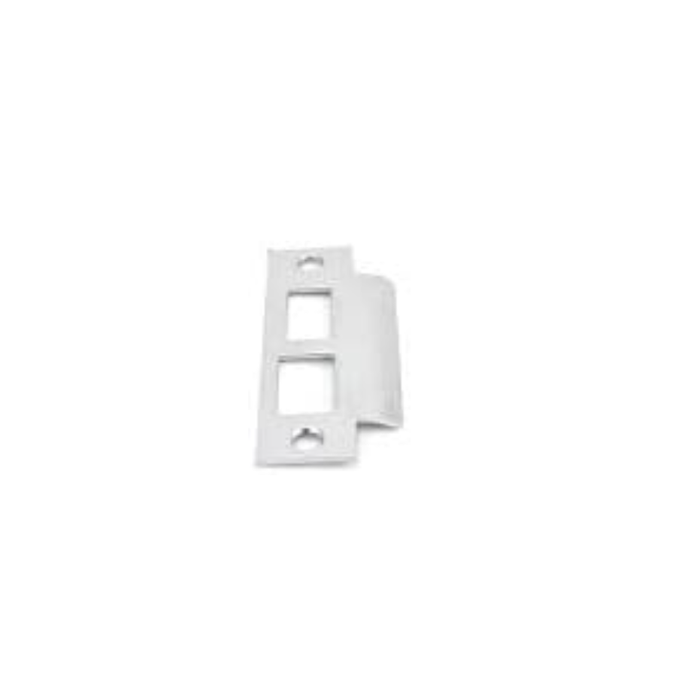

BALDWIN 6340 Latch and Deadbolt ASA Strike
- Latch And Deadbolt Strike
- For 1-1/2", 2", 2-1/2" Backset Latch
- Use With Locks Incorporating A 1/2" Wide Latch Bolt
- 1-1/4" Lip To Center
- Limited Lifetime Mechanical Warranty and Limited 5 Year Finish Warranty
Manufacturer Resources
Baldwin 2025 Cabinet Hardware Lookbook
Product Specs
- Subcategory:
- Parts and Accessories
- Product Group:
- Door Trim and Accessories
- Product Subgroup:
- Lever Handle
- Product Type:
- Parts and Accessories
- Commercial/Residential:
- Residential
- Collection:
- Estate Series
- Product Model:
- 6340
- Product Dimension:
- 1-1/4" Lip to Center
- Door Strike:
- ASA Strike
- Product Substrate:
- Brass
- Product Category:
- Door Trim and Accessories
- Department:
- Door Hardware
Baldwin 6340-260 – Frequently Asked Questions
1) Will the Baldwin 6340 strike work with a 2-3/8 inch backset latch?
No. The 6340 ASA strike is made for 1-1/2, 2, and 2-1/2 inch backset latches, which are Baldwin's own backset sizes on the Estate Series. A standard 2-3/8 inch tubular latch is not one of the backsets this strike is cut for.
2) What size latch bolt does the Baldwin 6340 ASA strike accept?
It is cut for locks using a 1/2 inch wide latch bolt. If the lock on your door throws a wider bolt, the latch will not seat correctly in this strike.
3) What is the lip-to-center dimension on the Baldwin 6340 strike?
1-1/4 inch lip to center. That measurement decides how far the lip projects past the jamb face to catch the latch, so check it against the plate you are removing before you chisel the jamb. If your existing strike measures something other than 1-1/4 inch lip to center, the latch will either drag on the lip or miss it.
4) I'm replacing a worn strike plate on a Baldwin entry door. Is the 6340 the right part?
It is if the door uses a Baldwin latch at a 1-1/2, 2, or 2-1/2 inch backset with a 1/2 inch latch bolt, and the jamb already carries an ASA-size mortise with a 1-1/4 inch lip to center. Pull the old plate and measure the lip to center first. The 6340 is the strike only, not the latch or deadbolt.
5) Does the Baldwin 6340 handle both the latch and the deadbolt in one plate?
Yes, it's a combination strike. One plate takes both the latch bolt and the deadbolt, so a single mortise in the jamb serves an entry set with a separate deadbolt above it rather than needing two strikes and two preps.
6) Is the Baldwin 6340 an ASA strike, and what does that mean for the jamb prep?
It is an ASA strike, which is the deeper, squared box-style plate rather than a small tubular T-strike. The jamb needs the full ASA mortise cut, so swapping one in over a small residential T-strike prep means enlarging the cutout.
7) Is the Baldwin 6340 strike suitable for a commercial opening or apartment entry doors?
Baldwin classes the 6340 as residential hardware within the Estate Series. For multi-family unit entries it fits where Baldwin residential locksets are already in use, but for a rated or high-traffic commercial opening you want a strike supplied with a Grade 1 commercial lockset instead.
8) What finishes does the Baldwin 6340 strike come in?
Two: 260 Polished Chrome and 102 Oil Rubbed Bronze. Both are Baldwin finish codes, so if your existing Estate Series trim is coded 260 or 102 the strike will match the rest of the set on that opening.
