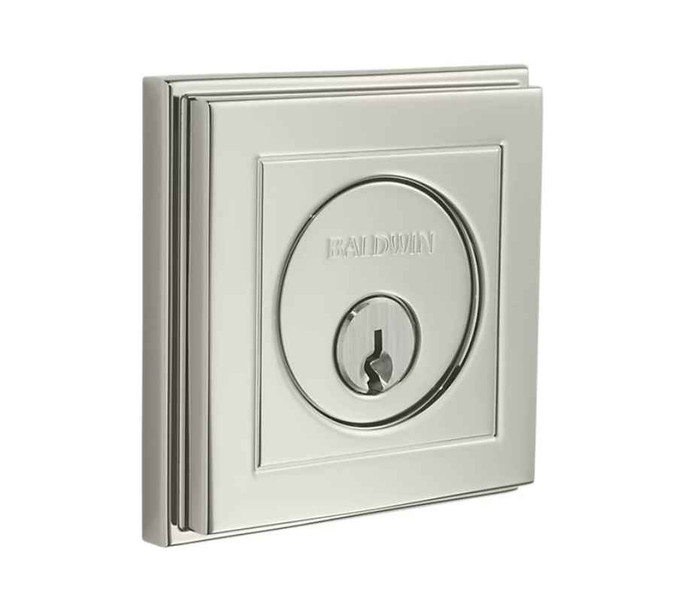

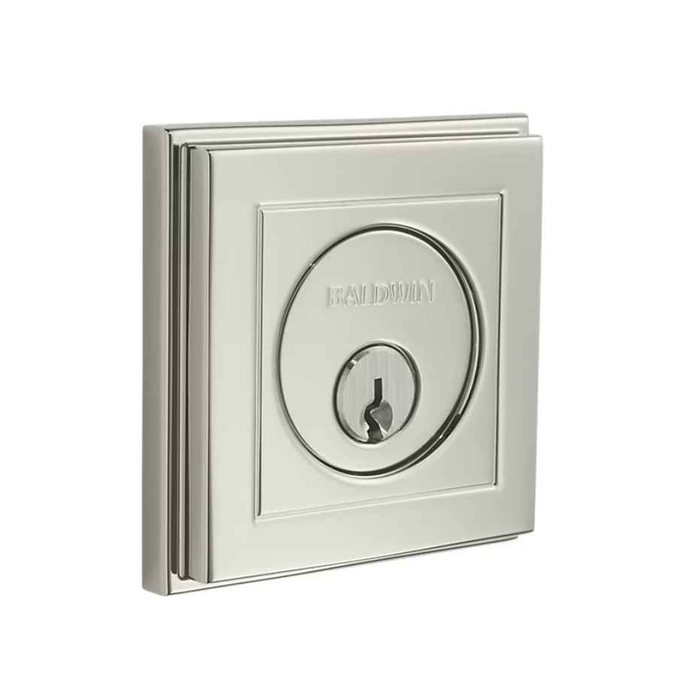

Baldwin 8260 Estate Hollywood Hills Single Cylinder Deadbolt

Either one. The 8260 Hollywood Hills deadbolt ships with an adjustable latch that sets to a 2-3/8 or 2-3/4 inch backset, which are the two standard bores on residential doors, so you don't have to measure the cross-bore to center before ordering. Set it to match the existing prep when you install.

The reinforcing strike measures 1-1/8 x 2-3/4 inches, which is the common residential deadbolt strike footprint. If your jamb is already cut for a strike that size, it drops in. If the old strike was a larger box or extended-lip type, expect to patch and recut the jamb mortise.

It's built and rated as residential hardware, brass construction in the Estate line, and it fits single family and high-end residential entries. For an apartment building corridor, a school, or any opening where a durability grade gets specified, go to a commercial deadbolt instead: the Accentra D111 and the Delaney LM Series are Grade 1 single cylinder deadbolts, and the Arrow DBX61 or Dexter DB2000 are Grade 2 options.

The Baldwin 8260 Hollywood Hills is a residential single cylinder deadbolt operating cylinder outside by thumbturn inside. For an opening that has to carry a Grade 1 rating, the Accentra D111 is a Grade 1 single cylinder deadbolt with the same cylinder x thumbturn function, fitted to doors 1-3/8 inch to 1-3/4 inch thick with a 2-3/8 inch backset. The Dexter DB1000 single cylinder deadbolt is also Grade 1 cylinder x thumbturn and covers 1-3/8 inch to 1-7/8 inch door thickness. Deltana CL200LM is another Grade 1 single cylinder option with the same function.

The Baldwin 8260 Hollywood Hills is single cylinder: key outside, turn piece inside. Where a glass-adjacent door calls for a key on both faces, the Callan Model 210S is a Grade 3 double cylinder deadbolt, the Delaney LU Series is a Grade 2 double cylinder, the Dexter DB2000 is a Grade 2 double cylinder for 1-3/8 inch to 1-3/4 inch doors, and the Design Hardware D1 Series is a Grade 1 extra heavy duty double cylinder for 1-3/4 inch doors. Check the local code before specifying a double cylinder on an egress door.

The Baldwin 8260 Hollywood Hills is a residential deadbolt. For an opening where the fire rating governs, the Hager 3215 is a Grade 2 commercial single cylinder deadbolt with a 1 inch throw and a fire rating, for doors 1-3/8 inch to 1-3/4 inch. The Hager 3115 is a fire rated Grade 2 cylinder x thumbturn deadbolt over the same door thickness range, and the Cal-Royal CRB800 is a Grade 1 heavy duty single cylinder deadbolt with a UL 3-hour fire rated latch.

The Baldwin 8260 Hollywood Hills uses a C keyway. Among comparable deadbolts, the Hager 3115 and Hager 3215 are built with a Schlage C keyway, and the Hager 3118 pairs the Schlage C keyway with a 6-pin cylinder, so a site already keyed on that section has a path for both the decorative and the commercial openings. The Baldwin 8260 can be ordered keyed alike or keyed different.

The Baldwin 8260 Hollywood Hills ships as a keyed C keyway single cylinder deadbolt. If the facility keys on interchangeable cores, the Deltana CL200LAIC is a Grade 2 single cylinder deadbolt prepped for an interchangeable core and supplied without a cylinder, on a 2-3/4 inch backset. The Arrow E61 is a Grade 2 single cylinder deadlock with SFIC prep, less core, for doors 1-3/8 inch to 1-3/4 inch. The Delaney LM Series is a Grade 1 single cylinder less core deadbolt in dull chrome US26D.

No - the Baldwin 8260 Hollywood Hills is a bored deadbolt with an adjustable 2-3/8 or 2-3/4 inch backset and a 1-1/8 inch by 2-3/4 inch strike, so it goes into a bored crossbore and edge bore. A mortise unit such as the Dormakaba D900 small case mortise deadbolt or the Emtek 2050 European mortise deadbolt with integrated roller latch needs a mortise pocket cut into the door edge. They share the cylinder x thumbturn function but not the door prep.

Yes. Order it keyed alike and it shares one key with the other units on the same order. Since it uses the C keyway, it can also be keyed into an existing C-keyway system by supplying the key code when you order. Keyed different is the option if each door needs its own key.

No handing to specify. The 8260 is reversible and works on a left or right hand door either way it swings, so one part number covers every opening in the house.

All three are cylinder by thumbturn single cylinder deadbolts, so they do the same job at the door. The 8260 is a brass Estate Series decorative deadbolt with an adjustable 2-3/8 or 2-3/4 backset. The Emtek #11 Tuscany is a lost wax cast bronze deadbolt if you want a cast, more rustic trim. The Deltana CL200LM is a Grade 1 single cylinder deadbolt, and the Deltana CL200LA is Grade 2 with a 2-3/4 inch backset, so those are where to go if a grade needs to appear on a spec sheet.

No. The 8260 is keyed on the exterior and has a thumbturn inside, so it's an entry deadbolt. For an exit-only opening where nobody should key in from outside, the Arrow E60 is a non-keyed deadlock with a blank plate outside and a thumbturn inside, rated for 1-3/8 to 1-3/4 inch doors. For a door that only needs a bolt from one side with no outside trim at all, the Callan 205S is a one-sided half-bore deadbolt.

It installs in the standard bored deadbolt prep, cross bore through the door face and an edge bore for the latch, with the backset adjustable to 2-3/8 or 2-3/4 inches to match whichever prep is already there. Baldwin publishes a drilling template for the 8260 if you're boring a fresh door.

The Baldwin 8260 is the Hollywood Hills design in a brass substrate, offered in Vintage Brass, Polished Nickel PVD and Satin Black. Where the decorative trim is not the point, several deadbolts carry the same cylinder x thumbturn function in simpler trim: the Bravura 310B Elite is a Grade 2 traditional round deadbolt, the Bravura 310SC Elite is a Grade 2 contemporary square, the Callan Model 200S-G2 is a Grade 2 round trim deadbolt, and the Cal-Royal ED500 is a Grade 3 with an adjustable backset for 1-3/8 inch to 1-3/4 inch doors.

The Baldwin 8260 Hollywood Hills has an adjustable backset for 2-3/8 or 2-3/4 inch and is reversible for either hand. Other adjustable-backset deadbolts with the same cylinder x thumbturn function include the Brinks Raleigh Series round deadbolt and the Brinks Mendocino Series square deadbolt, both with a 4 way adjustable backset, the Cal-Royal ED500 Grade 3 with adjustable backset, and the Falcon D111 Grade 1 heavy duty deadbolt with adjustable backset. A fixed-backset unit such as the Accentra D111, which lists a 2-3/8 inch backset, has to match the existing bore.

The Baldwin 8260 Hollywood Hills is a keyed mechanical deadbolt, cylinder outside and turn piece inside. If the opening is going to code or credential access instead, the Delaney KP400 is a Grade 2 electronic deadbolt with a programmable remote, the Codelocks CL2200 is an electronic surface deadbolt in brushed steel, the Codelocks CL2210 is an electronic mortise deadbolt, and the Dormakaba Saffire LX-D and Nova-D are RFID electronic deadbolts. These are a different install and power story than a keyed bored deadbolt, not a drop-in swap.

No. The Baldwin 8260 Hollywood Hills uses a 1-1/8 inch by 2-3/4 inch strike and comes with a reinforcing strike of high-grade steel. The Arrow 460 is a mortise lock strike with a straight lip for latchbolt and deadbolt functions on a 1-3/4 inch door, cut for a mortise lock front, not for a bored deadbolt. The BEST 8T is likewise a tube component for the T Series tubular deadbolt, a piece of that lock rather than a substitute for a complete deadbolt.

The Baldwin 8260 Hollywood Hills uses a turn piece on the inside. Where the inside operation has to suit limited hand strength, the Cal-Royal LSD is a Grade 3 single cylinder deadbolt with an ADA ergonomic thumbturn, for doors 1-3/8 inch to 1-3/4 inch, with the same cylinder x thumbturn function.

The Baldwin 8260 Hollywood Hills is a brass single cylinder deadbolt in the Estate Series, offered in Vintage Brass, Polished Nickel PVD and Satin Black. For a comparable decorative entry, the Emtek #11 Tuscany is a lost wax cast bronze deadbolt with the same cylinder x thumbturn function, and the Emtek 8323 Modern Disc is a brass deadbolt in a double cylinder configuration if the door needs a key on both sides.

The Baldwin 8260 Hollywood Hills is an entry function deadbolt: key outside, turn piece inside, so anyone inside can throw or retract the bolt by hand. A classroom function deadbolt is operated by key only from the keyed side with no inside turn - the Falcon D111 is a Grade 1 heavy duty classroom deadbolt, the Falcon D211 is the Grade 2 medium duty version, and the Hager 3118 is a Grade 1 classroom deadbolt with a Schlage C keyway and 6-pin cylinder.

Three: 033 Vintage Brass, 055 Polished Nickel PVD, and 190 Satin Black. The PVD nickel is the one to pick for a coastal or heavily weathered exterior door, since PVD holds up to handling and sun better than a lacquered finish. Vintage Brass is a living finish and will darken with use.
