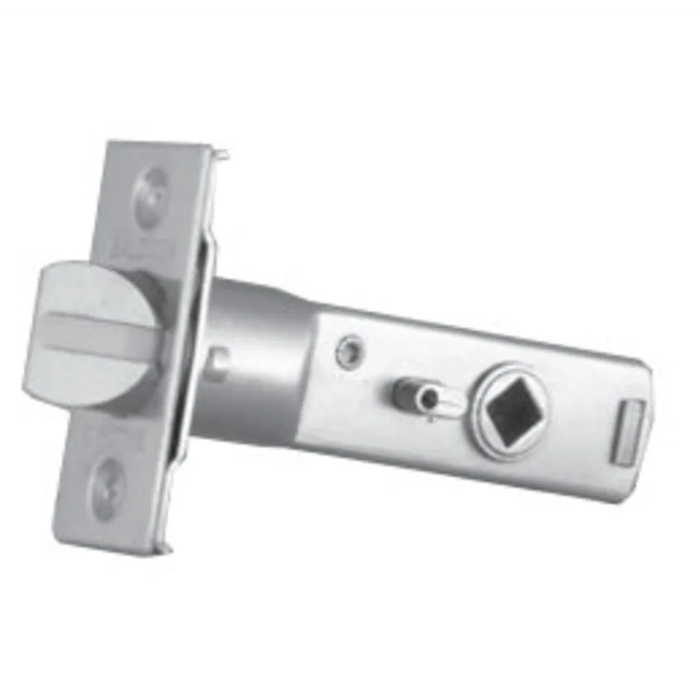

BALDWIN Estate 2-3/8" Knob Passage Latch with Full Lip Strike
- Dimension 2-3/8" Backset
- Series Estate
- Backset 2-3/8" Backset
- Latch Faceplate Dimension 1" x 2-1/4"
- Strike Full Lip Strike
- Strike Dimension 1-5/8" x 2-1/4"
- Limited Lifetime Mechanical Warranty and Limited 5 Year Finish Warranty
- Material Brass / Steel
Manufacturer Resources
Baldwin 2025 Cabinet Hardware Lookbook
Product Specs
- Subcategory:
- Parts and Accessories
- Product Group:
- Door Trim and Accessories
- Product Subgroup:
- Lever Handle
- Product Type:
- Parts and Accessories
- Commercial/Residential:
- Residential
- Collection:
- Estate Series
- Product Model:
- 5510FLS
- Product Function:
- Passage/Hall/Closet
- Product Category:
- Door Trim and Accessories
- Department:
- Door Hardware
Baldwin 5510056FLS – Frequently Asked Questions
1) Will the Baldwin Estate 5510FLS passage latch fit a door bored with a 2-3/8 inch backset?
Yes. The Estate 5510FLS is a 2-3/8 inch backset passage latch, which is the shorter of the two standard residential backsets (2-3/4 inch is the other). Measure from the door edge to the center of the bore hole; if that is 2-3/8 inches, this latch drops in.
2) Is the Baldwin Estate 5510FLS a locking latch or just a passage latch?
Passage only. It latches the door closed and retracts from either side by turning the knob, with no locking, no keyway, and no privacy button. Use it on halls, closets, and pantry doors. For a bedroom or bath you need a privacy function instead.
3) Is this a complete knob set or just the latch?
Just the latch and strike. The 5510FLS is a replacement passage latch with a full lip strike for Baldwin Estate knob sets, so the knobs, roses, and spindle are separate. Buy it when the latch has failed or you need to change the backset, not when you need a whole new set.
4) What size mortise does the Baldwin Estate 5510FLS latch faceplate need in the door edge?
The latch faceplate measures 1 inch by 2-1/4 inches, so the door edge needs a mortise of that size. If you're replacing an older latch with a differently shaped or larger faceplate, plan on patching or re-routing the edge prep.
5) What strike comes with the Baldwin Estate 5510 passage latch?
A full lip strike is included, measuring 1-5/8 by 2-1/4 inches. The extended lip carries the latch across the jamb face, which helps on jambs where the stop is set back or the reveal is wide. No separate strike purchase is needed.
6) Do I need to worry about handing on this Baldwin passage latch?
No. A passage latch has no locking mechanism and the latch bolt reverses, so the same part works on a left or right hand door. Just make sure the bevel of the latch faces the stop when you install it.
7) Can I use this Baldwin Estate latch on a commercial office door?
It's built for residential use. Baldwin classifies the Estate 5510FLS as residential door hardware, so for a commercial opening with heavy traffic or code-driven hardware requirements you want a graded commercial cylindrical or mortise lock instead.
