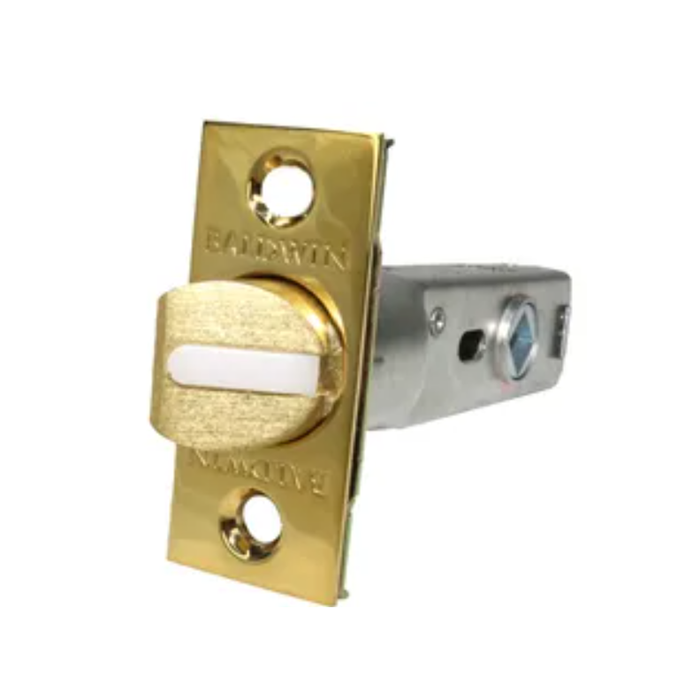

Baldwin Estate 5510 2-3/8" Knob Passage Latch

Baldwin Estate 5510 2-3/8" Knob Passage Latch

(No reviews yet) Write a Review

Model: 5510031
From the Estate Series Collection
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$108.00
$74.77
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks

BALDWIN Estate 5510 2-3/8" Knob Passage Latch

  • Dimension 2-3/8" Backset
  • Series Estate
  • Backset 2-3/8" Backset
  • Latch Faceplate Dimension 1" x 2-1/4"
  • Strike T Strike
  • Strike Dimension 1-7/8" x 2-3/4"
  • Limited Lifetime Mechanical Warranty and Limited 5 Year Finish Warranty
  • Material Brass / Steel

Product Specs

Subcategory:
Parts and Accessories
Product Group:
Door Trim and Accessories
Product Subgroup:
Lever Handle
Product Type:
Parts and Accessories
Commercial/Residential:
Residential
Collection:
Estate Series
Product Model:
5510
Product Function:
Passage
Product Category:
Door Trim and Accessories
Department:
Door Hardware

Baldwin 5510031 – Frequently Asked Questions

1) Will the Baldwin Estate 5510 latch drop into my existing door mortise without new prep?
The latch faceplate measures 1 x 2-1/4 inches, so it drops into a door edge already routed for that face size. If the previous latch had a larger faceplate, or a drive-in collar rather than a rectangular face, you'll be patching or re-routing the edge. Check the existing mortise against those two numbers before you pull the old one.
2) I'm replacing just the latch on a Baldwin Estate knob set, not the whole lockset. Is this the part?
That's exactly what the 5510 is: the latch mechanism and strike on their own, for an Estate Series knob in passage function. The knob, rose, and spindle stay on the door. Match the backset (2-3/8 inch) and the finish number of the existing trim and the repair is a latch swap, not a re-drill.
3) Does the Baldwin 5510 passage latch come with a strike plate, and what size is it?
A T strike is part of the 5510, measuring 1-7/8 x 2-3/4 inches. That's the full-lip strike shape, so the frame needs to be mortised for it. If your jamb currently carries a smaller round-corner or full-lip strike of different dimensions, plan on adjusting the frame cutout.
4) Is the Baldwin Estate 5510 latch rated for commercial door traffic?
Baldwin catalogues the Estate 5510 as residential. It suits single-family homes, condo interiors, and light multi-family interior doors. For a commercial corridor or a high-cycle opening in an office or school, spec a commercial-grade cylindrical or mortise lockset instead.
5) Do I need to worry about handing when ordering the Baldwin Estate 5510 latch?
No handing to specify. The 5510 is a passage latch, so there's no lock cylinder or privacy button to orient, and the latchbolt gets flipped in the field for left or right swing on installation. One part number covers both hands of an interior door.
6) What finishes does the Baldwin Estate 5510 knob passage latch come in?
Ten finishes, matched to the Estate trim range: 003 Polished Brass PVD, 031 Non-Lacquered Brass, 033 Vintage Brass, 050 Satin Brass Black, 055 Polished Nickel PVD, 056 Lifetime PVD Satin Nickel, 060 Satin Brass Brown, 102 Oil Rubbed Bronze, 190 Satin Black, and 260 Polished Chrome. Order by the same finish number as the knob and rose on the door so the exposed faceplate and strike match.
7) What is the Baldwin 5510 passage latch made of?
Brass and steel construction. That matters on an interior door a property manager is turning over repeatedly, since the working parts aren't zinc pot metal, and the brass finishes on the exposed faceplate carry the same plating family as the Estate trim.
