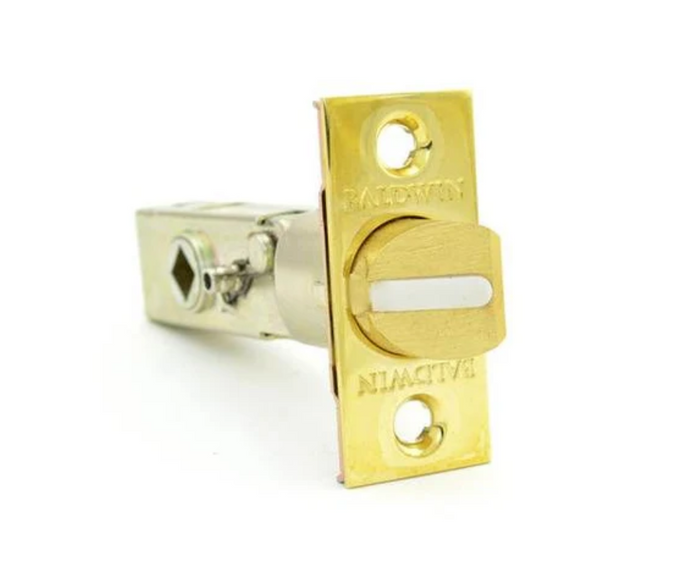

BALDWIN Estate 5510 2-3/8" Knob Privacy Latch
- Dimension 2-3/8" Backset
- Series Estate
- Backset 2-3/8" Backset
- Latch Faceplate Dimension 1" x 2-1/4"
- Strike T Strike
- Strike Dimension 1-7/8" x 2-3/4"
- Limited Lifetime Mechanical Warranty and Limited 5 Year Finish Warranty
- Material Brass / Steel
Manufacturer Resources
Baldwin 2025 Cabinet Hardware Lookbook
Product Specs
- Subcategory:
- Parts and Accessories
- Product Group:
- Door Trim and Accessories
- Product Subgroup:
- Lever Handle
- Product Type:
- Parts and Accessories
- Commercial/Residential:
- Residential
- Collection:
- Estate Series
- Product Model:
- 5510
- Product Function:
- Privacy/Bed/Bath
- Product Category:
- Door Trim and Accessories
- Department:
- Door Hardware
Baldwin 5510031P – Frequently Asked Questions
1) Will the Baldwin Estate 5510 privacy latch fit a door bored with a 2-3/8 inch backset?
Yes. The Estate 5510 is the 2-3/8 inch backset version, meaning the center of the bore sits 2-3/8 inches from the door edge. That is the standard backset on most residential interior doors. If your door is bored at 2-3/4 inches, this latch will not reach the cross bore and you need the 2-3/4 inch backset version instead.
2) What size latch faceplate mortise does the Baldwin 5510 need in the door edge?
The faceplate measures 1 inch by 2-1/4 inches, so the mortise in the door edge has to match that footprint. If you are swapping out an existing latch with the same faceplate size, it drops straight into the old mortise with no chiseling.
3) Is the Baldwin 5510 a keyed latch or a bed and bath privacy latch?
Privacy function, for bedrooms and bathrooms. It locks from the inside with a thumbturn or push button on the knob and has an emergency release on the outside, not a keyed cylinder. For an entry door you need a keyed function latch instead.
4) Is the Baldwin 5510 latch a complete knob set or just the replacement latch?
Just the latch mechanism, with its faceplate and T strike. It is the internal privacy latch used with Baldwin Estate Series knobs, so you still need the knob set itself. Buy it on its own when the latch has failed or when you need to change backset and want to keep the existing knobs.
5) What strike comes with the Baldwin Estate 5510 privacy latch, and what frame prep does it need?
It ships with a T strike measuring 1-7/8 by 2-3/4 inches. That is the full-lip strike commonly mortised into a wood jamb, so the frame needs a matching recess of that size plus the pocket for the latch bolt.
6) What finishes does the Baldwin Estate 5510 privacy latch come in?
Seven finishes: 003 Polished Brass PVD, 031 Non-Lacquered Brass, 033 Vintage Brass, 050 Satin Brass Black, 102 Oil Rubbed Bronze, 190 Satin Black, and 260 Polished Chrome. Order the same finish code as the knob set so the exposed faceplate and strike match the rest of the trim.
7) Can I use the Baldwin Estate 5510 on apartment or office doors in a commercial building?
Baldwin lists the 5510 as a residential product. For a multifamily or commercial opening with heavy daily traffic, spec a commercial-grade latch and lockset instead. It is fine for bedroom and bath doors in a house, condo unit interior, or a hospitality guest room interior.
