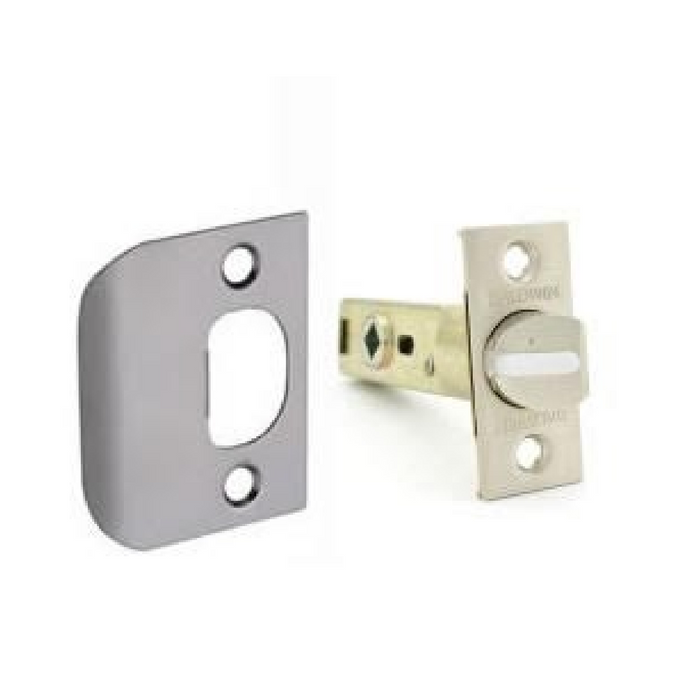

BALDWIN Estate 5513 2-3/8" Lever Passage Latch with Full Lip Strike
- Dimension 2-3/8" Backset
- Series Estate
- Backset 2-3/8" Backset
- Latch Faceplate Dimension 1" x 2-1/4"
- Strike Full Lip Strike
- Strike Dimension 1-5/8" x 2-1/4"
- Limited Lifetime Mechanical Warranty and Limited 5 Year Finish Warranty
- Material Brass / Steel
Manufacturer Resources
Baldwin 2025 Cabinet Hardware Lookbook
Product Specs
- Subcategory:
- Parts and Accessories
- Product Group:
- Door Trim and Accessories
- Product Subgroup:
- Lever Handle
- Product Type:
- Parts and Accessories
- Commercial/Residential:
- Residential
- Collection:
- Estate Series
- Product Model:
- 5513FLS
- Product Function:
- Passage/Hall/Closet
- Product Category:
- Door Trim and Accessories
- Department:
- Door Hardware
Baldwin 5513050FLS – Frequently Asked Questions
1) Will the Baldwin Estate 5513 passage latch fit a door bored with a 2-3/8 inch backset?
Yes. The Estate 5513 is the 2-3/8 inch backset version, which is the shorter of the two standard residential backsets (the other being 2-3/4 inch). Measure from the door edge to the center of the bore hole; if that comes to 2-3/8 inches, this is the latch for that prep.
2) Does this Baldwin latch lock, or is it just a passage latch?
Passage only. The 5513 is a hall and closet function latch, so it latches the door shut but has no locking mechanism. For a bedroom or bath you need a privacy latch instead, and for an entry you need a keyed latch.
3) Is the Baldwin Estate 5513 a complete lever set or just the latch?
Just the latch and strike. The 5513 is the internal latch mechanism with its full lip strike, meant to pair with Baldwin Estate Series lever trim, which is ordered separately.
4) Can I use the 5513 to replace a worn latch without changing my Baldwin levers?
Yes, as long as your prep is 2-3/8 inch backset and your existing edge mortise matches the 1 by 2-1/4 inch faceplate. The 5513 is sold as the latch and strike alone, so the Estate levers and rosettes already on the door stay in place.
5) What size mortise does the 5513 latch faceplate need in the door edge?
The faceplate on the Estate 5513 measures 1 inch by 2-1/4 inches, so the edge mortise has to be cut to that footprint for the plate to sit flush.
6) What kind of strike comes with the Baldwin Estate 5513 latch?
A full lip strike ships with it, measuring 1-5/8 by 2-1/4 inches. The extended lip guides the latchbolt over the jamb edge, which is what you want on a wood jamb where the latch would otherwise scrape the frame.
7) What finishes does the Baldwin Estate 5513 passage latch come in?
Six: 003 Polished Brass PVD, 031 Non-Lacquered Brass, 050 Satin Brass Black, 055 Polished Nickel PVD, 056 Lifetime PVD Satin Nickel, and 060 Satin Brass Brown. Match the code to the Estate lever trim already on the other doors so the exposed faceplate and strike blend in. Note that 031 is unlacquered and will patina over time, while the PVD finishes hold their color.
8) Is the Baldwin Estate 5513 latch suitable for a commercial opening?
It is built as residential hardware for the Estate Series, so it belongs on homes, condo interiors, and similar light-traffic doors. For a commercial corridor or a fire rated opening, specify a Grade 1 or Grade 2 commercial latch instead.
9) What is the Baldwin 5513 latch made of?
Brass and steel construction, which is why the finish options run across brass and nickel platings that match the Estate lever trim.
