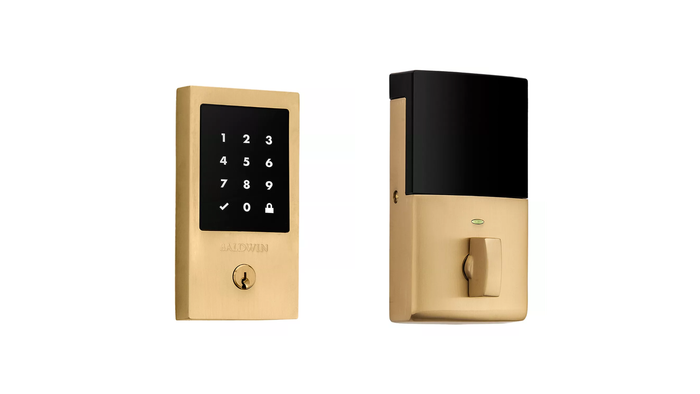

Baldwin Estate 8225 Z-Wave Minneapolis Touchscreen Deadbolt with Schlage C Keyway

Baldwin Estate 8225 Z-Wave Minneapolis Touchscreen Deadbolt with Schlage C Keyway

(No reviews yet) Write a Review

Model: 8225 033 ZW
From the Estate Series Collection
$828.00
$564.55
Selected Finish is
Selected Keying is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$828.00
$564.55
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Baldwin Estate 8225 Z-Wave Minneapolis Touchscreen Deadbolt with Schlage C Keyway
KEY FEATURES

  • Activate the 30 second auto-locking feature for convenience and peace-of-mind
  • The Advanced Touchscreen is responsive to your hand for screen display and code entry
  • Lock your door with a single touch. No need for a key or code to lock the door
  • Up to 16 customizable user codes with 4 to 8 digit code length for family, guests and service professionals
  • Limited Lifetime Mechanical Warranty, Limited 5 Year Finish Warranty, and Limited One Year Electronic Warranty

RESOURCES & DOWNLOADS

Warranty

Installation

Manufacturer Resources

Product Specs

Keyed Function:
Single Cylinder
Subcategory:
Touchscreen Locksets
Product Group:
Electronic Locks
Product Subgroup:
Touchscreen Locksets
Product Type:
Deadbolts
Keyed:
Yes
Commercial/Residential:
Residential
Lock Function:
Touchscreen Deadbolt
Interior Locking Type:
Cylinder
Series:
Estate Series
Product Attribute:
Deadbolts
Keypad Type:
Touchscreen
Power:
Battery Operated
Batteries:
4 AA, included
Collection:
Estate Series
Cylinder and Keyways:
C-Keyway
Backset (Distance):
Adjustable 2-3/8 or 2-3/4
Product Function:
Entrance
Door Hand Direction:
Non-Handed
Door Thickness Range:
1-3/4"
Product Design:
Minneapolis
Product Substrate:
Brass
Product Category:
Electronic Locks
Department:
Door Hardware

Baldwin 8225 033 ZW – Frequently Asked Questions

1) Will the Baldwin 8225 Minneapolis touchscreen deadbolt fit my door, and what backset do I need?
The 8225 Minneapolis touchscreen deadbolt is built for a 1-3/4 inch door and ships with an adjustable latch that sets to either a 2-3/8 or 2-3/4 inch backset, so it drops into either of the two standard bore layouts without ordering a specific latch. Measure from the door edge to the center of the 2-1/8 inch bore to confirm which one you have. It is non-handed, so the same unit works on a left or right hand door with no reversing.
2) Can I key the Baldwin 8225 touchscreen deadbolt to my existing Schlage keys?
The 8225 Minneapolis uses a Schlage C keyway cylinder, so it takes the same blank as the Schlage-keyed locks already on the property and a locksmith can key it into that system. It is single cylinder, meaning key outside and a thumbturn-free interior that locks by cylinder, and keying is ordered as keyed different or keyed alike, with a key code field if you need it matched to an existing bitting.
3) Is the Baldwin Estate 8225 Z-Wave deadbolt suitable for a commercial entrance or apartment building?
Baldwin classes the Estate 8225 as residential hardware. For a single-family rental, a condo unit, or an owner's residence it is the right product. For a commercial opening or a high-traffic multifamily entry where you need a graded lock, look at the Schlage BE365 Plymouth keypad deadbolt instead, which we carry as a Grade 2 single cylinder keypad deadbolt.
4) Does the Baldwin 8225 Z-Wave deadbolt need a hub, or does it work on its own?
Both. The Minneapolis 8225 is a Z-Wave deadbolt, so it joins a Z-Wave hub or panel for remote lock and unlock and code management, but the touchscreen works standalone on battery power with up to 16 user codes at 4 to 8 digits. If you have no Z-Wave controller, you still get full keypad and key operation out of the box.
5) Will the Schlage BE365 Plymouth fit doors the Baldwin Estate 8225 Minneapolis deadbolt will not?
Yes. The Schlage Residential BE365 Plymouth lists a door thickness range of 1-3/8 inch to 1-3/4 inch, while the Baldwin Estate 8225 Minneapolis touchscreen deadbolt is specified for 1-3/4 inch doors. On a thinner 1-3/8 inch door, such as an older interior-weight slab pressed into service as an entry, the BE365 covers a thickness the 8225 does not.
6) What electronic deadbolt should I look at instead of the Baldwin Estate 8225 Minneapolis if I need Wi-Fi rather than Z-Wave?
The Dormakaba Saffire EVO LZ-D is an electronic deadbolt in the Saffire Series with Wi-Fi and BLE, an NMKO override, and vertical mounting, and it is Lyazon compatible. The Baldwin Estate 8225 Minneapolis is a Z-Wave touchscreen deadbolt, so it connects through a Z-Wave hub instead. Where the property already runs Wi-Fi credentials and no Z-Wave controller, the Saffire EVO LZ-D is the one that matches the network you have.
7) What is the closest keypad deadbolt alternative to the Baldwin Estate 8225 Minneapolis if Z-Wave and a touchscreen are not needed?
The Schlage Residential BE365 Plymouth is a keypad deadbolt in the BE Series, single cylinder, running on 9V battery operation. It uses a pushbutton keypad rather than the touchscreen entry of the Baldwin Estate 8225 Minneapolis, and it is a standalone keypad lock rather than a Z-Wave lock, so it does not join a hub or automation system. Both are single cylinder deadbolts with a key cylinder outside, so the keyed entry behavior at the door is the same.
8) Can the Dormakaba Saffire EVO LZ-D be keyed into the same Schlage C system as the Baldwin Estate 8225 Minneapolis deadbolt?
No. The Baldwin Estate 8225 Minneapolis is built with a C-Keyway cylinder and is keyed, so it drops into an existing Schlage C master or keyed-alike system. The Dormakaba Saffire EVO LZ-D uses an NMKO override rather than a Schlage C key cylinder, so it will not take a C-keyway key and cannot be keyed alike with the 8225. For a locksmith holding one key system across a set of doors, that is the difference that decides it.
9) What batteries does the Baldwin 8225 touchscreen deadbolt take, and are they included?
Four AA batteries run the 8225, and they come in the box. Keep the Schlage C key with you as the mechanical override, since a single cylinder deadbolt still opens by key if the batteries die.
10) What finishes does the Baldwin Estate Minneapolis touchscreen deadbolt come in?
Seven: Vintage Brass (033), Satin Brass PVD (044), Polished Nickel PVD (055), Lifetime PVD Satin Nickel (056), Satin Brass Brown (060), Venetian Bronze (112), and Satin Black (190). The lock body is brass, and four of those are PVD finishes, which is what you want on an exterior door facing weather. Match the Baldwin finish number to the levers and handlesets already on the house rather than matching by finish name across brands.
11) How is the Baldwin Estate 8225 different from the Schlage BE365 keypad deadbolt?
Two different jobs. The BE365 Plymouth is a pushbutton keypad deadbolt with no radio, Grade 2, and it fits 1-3/8 to 1-3/4 inch doors. The Baldwin Estate 8225 Minneapolis is a Z-Wave touchscreen deadbolt on 1-3/4 inch doors only, with codes you can manage from a hub, one touch locking, and a 30 second auto-lock. Pick the BE365 for a standalone code entry lock on a rental turn; pick the 8225 when the lock has to report to a smart home panel and match Baldwin trim.
12) Can I order several Baldwin Minneapolis deadbolts keyed alike for one property?
Yes. Keying is selectable as keyed alike or keyed different at order, so a set of units for one house or one unit can share a key. There is also a key code field if the cylinders need to be cut to a bitting you already have on the Schlage C system.
13) For a multi-family building standardizing on one electronic deadbolt, how does the Baldwin Estate 8225 Minneapolis compare to the Schlage BE365 on grade?
The Schlage Residential BE365 Plymouth carries a Grade 2 rating, which is the value to work from when a facility spec calls out an ANSI/BHMA grade for residential entry doors. The Baldwin Estate 8225 Minneapolis touchscreen deadbolt is a residential product built on a brass substrate. Buyers writing to a graded spec typically confirm the grade line first and the finish second.
14) Is the Dormakaba Saffire EVO LZ-D a drop-in replacement for a Baldwin Estate 8225 Minneapolis touchscreen deadbolt?
Not as a like-for-like swap. The Dormakaba Saffire EVO LZ-D is an electronic deadbolt with vertical mounting, while the Baldwin Estate 8225 Minneapolis is a non-handed touchscreen deadbolt with an adjustable 2-3/8 or 2-3/4 backset and a cylinder on the interior. The mounting orientation and the interior locking arrangement differ, so treat the Saffire EVO LZ-D as a new prep rather than a swap into the existing 8225 holes.
15) Does the Baldwin 8225 lock itself, and can I turn that off?
The 8225 has a 30 second auto-lock you activate, so it is optional rather than always on. You can also lock it with a single touch on the screen, no code or key needed, which is what most people use on the way out. Leave auto-lock off if the door gets propped during a job and you do not want it throwing the bolt behind you.
16) How many people can I give codes to on the Baldwin Estate touchscreen deadbolt?
Up to 16 user codes, each 4 to 8 digits, so you can issue separate codes to a tenant, a cleaner, a contractor, and family and delete them individually rather than rekeying. That is the practical limit to plan around on a rental turn; a property needing more than 16 distinct credentials wants a different class of lock.
