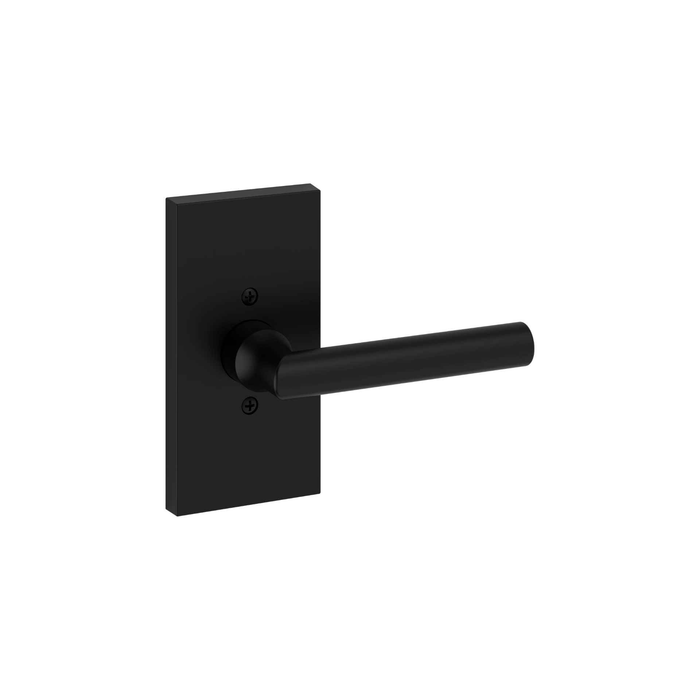

Baldwin R052 Tube Lever & Contemporary 5" Rose - Passage

Baldwin R052 Tube Lever & Contemporary 5" Rose - Passage

(No reviews yet) Write a Review

Model: R052190PS
From the Estate Series Collection
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$197.00
$152.10
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Baldwin R052 Tube Lever & Contemporary 5" Rose - Passage

Key Features
  • Slim, clean lines make this lever a beautiful fit for any home.
  • Knob or lever set paired with roses without a privacy or locking feature to close and secure any door with the 2.125" standard door preparation.
  • Passage sets include everything needed to install the lock onto your door.
  • Slim, clean lines make this lever a beautiful fit for any home.
  • Knob or lever set paired with roses without a privacy or locking feature to close and secure any door with the 2.125" standard door preparation.
  • Passage sets include everything needed to install the lock onto your door.

Specifications

all measurements in inches

  • Lock Type : Tubular
  • Style : Contemporary
  • Lock Function : Passage
  • Backset Size : Adjustable
  • Lever Grip Length : 4.25
  • Projection : 2.28
  • Maximum Door Thickness : 1.75
  • Minimum Door Thickness : 1.375
  • Partial Model : PS.TUB.R.CFR.190
  • Lever Handing : Reversible
  • Lever Rose Shape : Square

Product Specs

Product Group:
Door Trim and Accessories
Product Type:
Door Rosette
Subcategory:
Parts and Accessories
Product Subgroup:
Lever Handle
Commercial/Residential:
Residential
Collection:
Estate Series
Lock Function:
Passage
Product Model:
R052
Product Projection:
2.28"
Product Substrate:
Brass
Product Category:
Door Trim and Accessories
Department:
Door Hardware

Baldwin R052190PS – Frequently Asked Questions

1) Will the Baldwin R052 passage lever fit a 1-3/8 inch interior door?
Yes. The R052 tube lever set covers a door thickness range of 1-3/8 to 1-3/4 inches, so it works on both older 1-3/8 inch interior doors and standard 1-3/4 inch doors. The backset is adjustable, so it suits either of the common bore locations without ordering a different part.
2) Does the R052 lever need a special door prep, or will it drop into an existing bore?
It installs into the standard 2-1/8 inch cross bore prep, so on a door already drilled for a common residential knob or lever you can swap straight over without new boring. The adjustable backset handles either standard bore location.
3) Is the Baldwin R052 lockable, or is it just a passage set?
Passage only. The R052 has no privacy button, no keyway and no locking feature, so it latches the door shut but will not secure it. Use it on hallways, closets and pantry doors. For a bathroom or bedroom you need a privacy set instead, and for an entry you need a keyed function.
4) Is the Baldwin R052 rated for commercial use in an office or apartment corridor?
It is a residential-duty Estate Series set, built as a tubular lock rather than a heavy commercial cylindrical or mortise lock. Fine for apartment interiors and homes; for a commercial corridor or a high-traffic institutional opening, specify a commercial cylindrical lockset instead.
5) Do I have to order the Baldwin R052 handed for a left or right door?
No handing to specify. The lever is reversible, so one set covers left hand and right hand openings, which is what a property manager wants when buying a batch for mixed doors.
6) What finishes does the Baldwin R052 contemporary lever come in?
Two: 044 Satin Brass and 190 Satin Black. The set is solid brass substrate, which is what holds those finishes on a lever that gets handled constantly.
7) How far does the Baldwin R052 lever stick out from the door face?
Projection is 2.28 inches from the door face, with a 4.25 inch lever grip length. Worth checking against tight door-to-wall clearances or a door that swings back against casing or a cabinet.
8) What comes in the box with the Baldwin R052 passage set, and do I need extra hardware?
The passage set ships complete with the latch and the mounting hardware needed to install it on the door, so nothing additional is required beyond a strike prep in the frame. Both roses are the contemporary square 5 inch style.
9) Will the R052 match other Baldwin Estate levers already on my doors?
It belongs to Baldwin's Estate Series and uses the contemporary square rose, so it matches other Estate contemporary square-rose trim in the same finish. If your existing doors use a round rose or a different Baldwin collection, the rose shape will not visually match even in the same finish.
