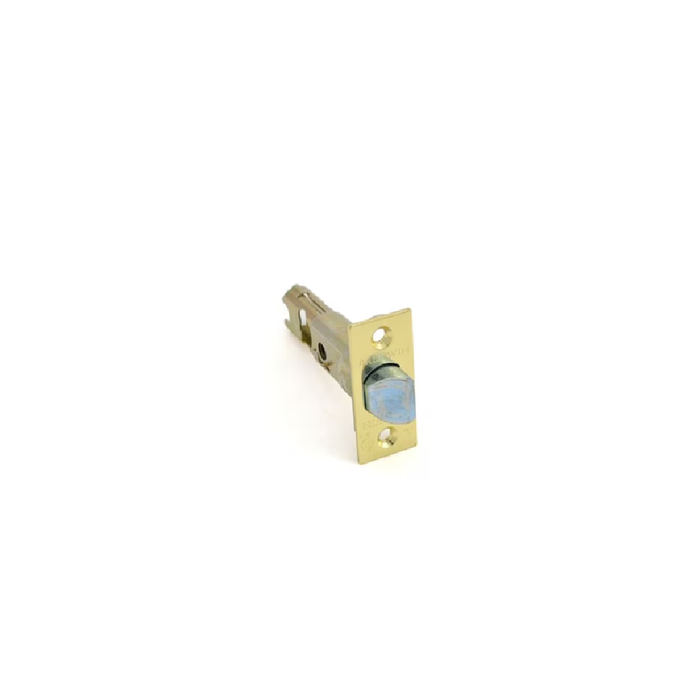

BALDWIN Reserve 8BR0310001 UL Square Corner Adjustable Springlatch
- Series Reserve
- Backset Adjustable 2-3/8" or 2-3/4" Backset
- Limited Lifetime Mechanical Warranty and Limited 5 Year Finish Warranty
- Material Brass
- Latch Faceplate Dimension 1" x 2-1/4"
- Ul Listing Type 20 Minute Certified UL
Manufacturer Resources
Baldwin 2025 Cabinet Hardware Lookbook
Product Specs
- Subcategory:
- Parts and Accessories
- Product Group:
- Door Trim and Accessories
- Product Subgroup:
- Lever Handle
- Product Type:
- Parts and Accessories
- Commercial/Residential:
- Residential
- Series:
- Reserve Series
- Collection:
- Reserve Series
- Product Model:
- 8BR0310001
- Product Category:
- Door Trim and Accessories
- Department:
- Door Hardware
Baldwin 8BR0310001 – Frequently Asked Questions
1) Does the Baldwin Reserve 8BR0310001 springlatch work with a 2-3/8 inch or a 2-3/4 inch backset?
Both. The 8BR0310001 is an adjustable springlatch, so it sets to either 2-3/8 inches or 2-3/4 inches without swapping parts. Those are the two standard residential door bores, so you can order it without measuring the existing prep first and adjust it at the door.
2) Will this Baldwin latch drop into an existing square corner faceplate mortise?
It will if the existing cutout is square cornered and measures 1 by 2-1/4 inches. The 8BR0310001 has a square corner faceplate at that size, so it seats in a standard square edge-bore mortise. If the door edge is prepped with a radius corner cutout, this faceplate won't sit flush and you want the radius corner version instead.
3) Is the 8BR0310001 latch fire rated for a 20 minute door?
Yes. It carries a 20 minute UL certification, so it can be used in a 20 minute rated residential opening, such as a house to garage door. Nothing beyond 20 minutes is covered by that listing.
4) Is this Baldwin springlatch rated for commercial use?
No. The Reserve 8BR0310001 is a residential grade part. For a commercial opening with heavy traffic or a Grade 1 or Grade 2 spec on the drawing, you want a commercial latch rather than this one.
5) Can I use this springlatch on a Baldwin Reserve lever that locks?
A springlatch is a passage or keyed latch component, not a deadbolt. It retracts with the lever every time it's turned, so it's the latch behind a Reserve knob or lever set. If you need a bolt that stays thrown independently of the handle, you need a deadbolt latch, not this part.
6) I manage a building with several Baldwin Reserve doors. Is this the right replacement latch for all of them?
Only for the ones with a square corner faceplate cutout in the door edge. The 8BR0310001 fits either standard backset, 2-3/8 or 2-3/4 inches, so backset won't split your fleet, but faceplate corner shape will. Check each door edge: square corner takes this latch, radius corner does not.
7) What is the Baldwin 8BR0310001 actually made of?
Brass. It's a brass springlatch, which is what Baldwin uses across the Reserve line rather than a plated steel latch body.
8) What finish does the 8BR0310001 come in?
One finish: 001, Lifetime PVD Brass. PVD holds up better against tarnish than a lacquered brass, which matters on an exterior door. If the rest of the trim on the opening is a different Baldwin finish, the latch face is what will show on the door edge, so match it there.
