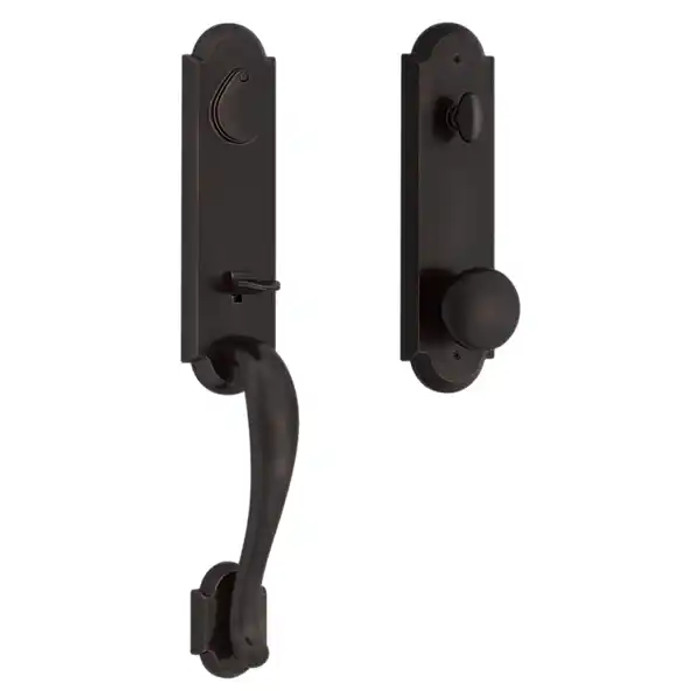

Baldwin Reserve Kodiak Single Cylinder Keyed Entry Handleset with Interior Trim and Emergency Egress Function

The Kodiak works with either a 2-3/8 or 2-3/4 inch backset, the two standard residential bores, so it lands on an existing prep either way. The edge bore is 1 inch. If your door was drilled for a standard cylindrical lock and deadbolt you are typically fine; check that the edge hole is 1 inch and not a smaller older bore.

It interconnects the lock so one motion of the interior lever or knob retracts the deadbolt and the latch together. Nobody inside has to find the thumbturn first and then the handle, which is the point of it on a bedroom-to-exterior or rental door. From outside, the deadbolt still needs the key.

Handing matters if you pick a lever. The arch lever (ARC) and taper lever (TAP) are each ordered left handed or right handed. The rustic knob (RUS) has no handing, so if you are not sure which way the door swings, the knob avoids the question entirely.

Yes. Keyed alike or keyed different is chosen at order time, and there is a key code field if you are matching an existing Baldwin system. The cylinder is Baldwin's 5-pin C-keyway, so it keys into other Baldwin C-keyway hardware, not into Kwikset or Schlage keyways.

The Baldwin Reserve Kodiak starts at 1-3/4 inches. For a 1-3/8 inch door, the Pamex FS7P31 Lexington single cylinder handleset in satin nickel is an entry-function set covering 1-3/8 to 1-3/4 inches, the Schlage Residential F60 Addison with Accent lever is a Grade 2 keyed entrance covering the same 1-3/8 to 1-3/4 inch range, and the Weslock 2810 Hillcrest with Hudson knob is a single cylinder set covering 1-3/8 to 2 inches.

The Schlage Residential F60 Addison single cylinder keyed entry handleset with Accent lever is the nearest peer: it is a Grade 2 entrance-function keyed handleset with interior lever trim, fitting doors 1-3/8 to 1-3/4 inches. The Kodiak is also a keyed single cylinder entry handleset and is tested to exceed ANSI/BHMA Grade 2, with a 5-pin Baldwin C-Keyway and a choice of 2-3/8 or 2-3/4 inch backset. The difference to weigh is function depth: the Kodiak carries the emergency egress interconnect that retracts the deadbolt and latch together in one motion, where the F60 Addison is a standard entrance handleset.

The Emtek 3002 Memphis, 3004 Hamilton, 3005 Melrose and 3006 Manhattan brass mortise entrance handlesets are all dummy function, as are the Weslock 6695 Belmont with Impresa knob and the Weslock 2815 Hillcrest with New Heaven lever. Dummy sets are surface-applied pulls with no cylinder and no latch, so they cannot replace the Baldwin Reserve Kodiak, which is a keyed single cylinder entry handleset. Use a dummy only on the inactive leaf of a pair of doors where the active leaf carries the lock.

Yes, split finish is available but has to be requested. By default the interior ships in the same finish as the exterior. The two finishes offered are 481 Dark Bronze and 492 White Bronze, and you enter the split finish combination you want in the optional field when ordering.

It is a residential product, tested to exceed ANSI/BHMA Grade 2 security. For an apartment unit door or a single family entrance that is the right class of hardware. If you are specifying for a commercial opening that needs a Grade 1 lock or a fire label, this is not the part.

Interconnected release is the defining feature of the Kodiak, and among comparable sets the Schlage Residential JI18/19 is the other interconnected option, a passage lock with keyed deadbolt and Torino lever, Grade 2, for 1-3/8 to 1-3/4 inch doors. Standard handlesets like the Weslock 2810 Hillcrest or the Kwikset 687AMD Amador use a separate deadbolt turn and latch, so egress takes two motions.

Single cylinder means key outside, thumbturn inside. The deadbolt throws and retracts by key from the exterior or by turning the thumbturn from within. There is no exterior-only version here, the set includes both sides. If you have glass beside the door and want no interior turn, a single cylinder set is not what you want.

Three Yale Real Living Assure sets pair a touchscreen deadbolt with the Ridgefield handleset: the BYRD226CBARX with Wi-Fi and Bluetooth, the BYRD226NRRX as a standalone touchscreen, and the BYRD256 CBARX key-free Wi-Fi version with Ridgefield passage handleset and trim connected by August. All three fit 1-3/4 to 2-1/4 inch doors. The Kwikset 815SCEHFL San Clemente handleset with Halifax lever pairs a contemporary SmartCode keypad electronic deadbolt with an RCAL latch and RCS strike for 1-3/4 inch doors. Against these, the Baldwin Reserve Kodiak is mechanical, keyed on a Baldwin 5-pin C-Keyway, and its emergency egress interconnect retracts the deadbolt and latch together.

For a straightforward keyed entrance, the Kwikset 687AMD Amador single cylinder handleset is a Grade 3 entrance handleset for 1-3/4 inch doors, offered with SmartKey rekeying and, in the 687AMD SMC version, an SC1 keyway. The Kwikset 687BW Belleview is the same Grade 3 SmartKey entrance handleset in a different escutcheon. Both are exterior-only and take separate interior trim, while the Baldwin Reserve Kodiak ships with both the interior and the exterior for a complete entrance and adds the emergency egress interconnect.

No. The Schlage Residential JE285 Barcelona style handleset with Seville lever is a non-keyed entry function, Grade 2, for 1-3/8 to 1-3/4 inch doors - there is no exterior cylinder, so the exterior handle always opens. The Baldwin Reserve Kodiak is keyed single cylinder with a key outside and a thumbturn inside. Pick the JE285 only where the opening is secured by a separate deadbolt or does not need to lock.

The Baldwin Reserve Kodiak is tested to exceed ANSI/BHMA Grade 2 security. Peers at that grade include the Schlage Residential F60 Addison and JE285 Barcelona and JI18/19 interconnected sets, all Grade 2 for 1-3/8 to 1-3/4 inch doors, and the Master Lock HDLB Series single cylinder deadbolt handleset, a Grade 2 entrance set. The Kwikset 687AMD Amador and 687BW Belleview sit at Grade 3. Note that the Kodiak is specified for residential use, so confirm that suits the occupancy you are standardizing.

Both are egress roses for the interior side. RAE is the Rustic Arched Interior Egress and SBE is the Square Bevel Interior Egress, so it comes down to whether the interior trim reads curved or squared against your other doors. Either rose can be had with the arch lever, taper lever, or rustic knob, in Dark Bronze or White Bronze.

That is the design intent of the Kodiak, a rustic Reserve Series handleset in Dark Bronze or White Bronze, with rustic arched or square bevel interior trim and a rustic knob option. For a matching fleet across several units, order all of them in one finish and one lever style and specify keyed alike.

Deltana offers four entry-function handlesets in solid brass: the 803871B Hanover, the 815871 St. Ann, the 825871 Kingston, and the 810871 Montego, which fits doors 1-3/8 to 2 inches. All are entry handlesets in distinct series styling. The Baldwin Reserve Kodiak is a rustic-design entry handleset from the Reserve Series, sold in 481 Dark Bronze and 492 White Bronze, with a single cylinder keyed function and the interior trim included in the same finish unless a split finish is specified.
