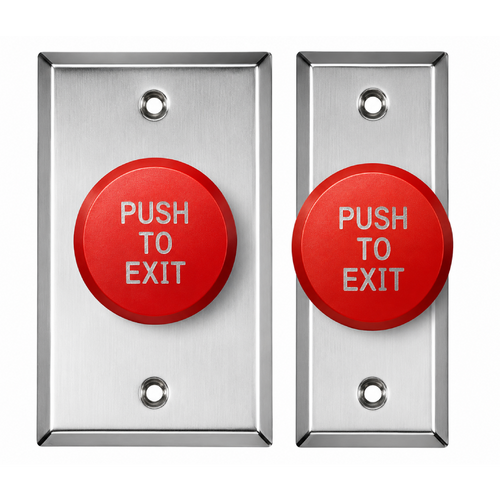

You may also like

BEA 10ACPBDAX Pneumatic Access Control Push Button with Adjustable Time Delay

Professional Pneumatic Push Button for Access Control Applications

The BEA 10ACPBDAX pneumatic access control push button delivers reliable, self-contained operation with mechanical pneumatic hold time functionality. This ruggedized device features stainless steel faceplates and colored, anodized aluminum buttons with adjustable time delay of 2-60 seconds. The unique design minimizes moving parts to reduce wear and extend device life, while providing user-defined time delay without external power requirements.

Professional Features & Benefits

  • Adjustable Time Delay: Customizable 2-60 second delay provides flexible timing for various access control applications without external power requirements.
  • Ruggedized Construction: Stainless steel faceplates and colored, anodized aluminum buttons ensure durability for demanding commercial environments.
  • Minimized Moving Parts: Unique design reduces wear and tear while extending device life through simplified mechanical operation.
  • Self-Contained Operation: Pneumatic mechanism initiates user-defined time delay without additional mechanical action or external power supply.
  • UL Listed Compliance: Listed UL 508 / CSA C22.2 No 14-10 with MET LABS certification (File #E113051) ensures code compliance and safety standards.
  • Customizable Options: Available in various combinations of color, text, and logo configurations to meet specific application requirements.
  • Multiple Size Options: Available in standard 1-5/8 inch or large 2 inch button sizes for different installation needs.
  • Indoor Application Ready: Designed and tested for reliable performance in most indoor commercial environments.

Technical Specifications

  • Technology: Pneumatic
  • Faceplate Dimensions (Single): 2.75 in (W) x 4.5 in (H)
  • Faceplate Dimensions (Jamb): 1.75 in (W) x 4.5 in (H)
  • Visual Style: Red Button with Push to Exit Text | Blue Button with Handicap Logo | Green Button with Push to Exit Text
  • Materials: Stainless steel faceplate with colored, anodized aluminum button
  • Switch Rating: 5 A @ 125 VAC
  • Time Range: 2 s - 60 s; adjustable
  • Relative Timing Accuracy: +/-5% @ 72 deg. F
  • Contactor: NO or NC
  • Operating Temperature: Rated for indoor use only; -15 deg. F - 120 deg. F
  • Product Life Test: 1 million operations

Installation & Operation

  1. Select appropriate mounting location ensuring adequate clearance for button operation and user accessibility per ADA requirements.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on wall or door frame surface.
  3. Prepare mounting surface by drilling required holes per manufacturer specifications for chosen mounting style (jamb or single gang).
  4. Install mounting hardware and secure the pneumatic push button assembly to the prepared surface.
  5. Adjust pneumatic time delay mechanism to desired 2-60 second range per application requirements using manufacturer adjustment procedures.
  6. Test button operation to verify proper pneumatic function, timing accuracy, and mechanical reliability throughout the adjustment range.
  7. Complete final inspection and document time delay settings. Refer to manufacturer documentation for complete installation details and maintenance procedures.

Professional Applications

  • Commercial Building Access Control Systems
  • Healthcare Facility Entry Points
  • Educational Institution Security Systems
  • Industrial Facility Access Management
  • Retail Store Employee Areas
  • Government and Municipal Building Security
  • Multi-Tenant Residential Access Control

Why Choose BEA Quality?

BEA pneumatic push button products deliver professional-grade reliability with stainless steel and anodized aluminum construction designed to minimize wear and extend device life. UL 508 / CSA C22.2 No 14-10 listing with MET LABS certification ensures compliance with safety standards. Engineered for demanding commercial applications where dependable, self-contained pneumatic operation is essential for access control systems.

Product Specs

Product Type:
Pneumatic Push Buttons
Series:
10ACPBDAX
Subcategory:
Parts and Accessories
Commercial/Residential:
Commercial
Electronic:
Yes
Product Group:
Electronic Access Controls
Product Subgroup:
Parts and Accessories
Product Category:
Electronic Access Control
Department:
Door Hardware

BEA 10ACPBDA1 – Frequently Asked Questions

1) Does the BEA 10ACPBDAX push button need power or a separate timer to hold a door open?
No power supply and no external timer. The 10ACPBDAX holds its own delay pneumatically, so the mechanism itself runs the 2 to 60 second hold time once the button is pressed. You still wire the switch contacts into whatever it releases, and those contacts are rated 5 A at 125 VAC. For a locksmith replacing a powered timer relay, this collapses that whole piece of the install into the button.
2) Can I use the 10ACPBDAX pneumatic push button outdoors or in an unheated garage?
Indoor only. The 10ACPBDAX is rated for indoor use, with an operating range of -15 to 120 deg. F. An unheated but enclosed space inside that temperature band is within rating; an exposed exterior location is not, and you should be specifying a weather-rated exterior actuator instead.
3) Do I have to order a normally open or normally closed contact on the BEA pneumatic push button?
The contactor is available NO or NC, so decide from what you are releasing. A fail-secure electric strike or maglock circuit that is broken to release wants NC; most door operator and strike release inputs want NO. Confirm the input on your controller before you place the order, because the button is a self-contained mechanical switch and there is no board inside to reconfigure.
4) Which button color and marking should I order for an ADA handicap door operator?
For an accessible entrance actuator, order the blue button with the handicap logo. Red with Push to Exit text and green with Push to Exit text are the other two markings, and those are the ones you want on an egress or release application rather than a barrier-free operator. All three colors come in both the 1-5/8 inch and 2 inch button sizes and in both jamb and single-gang faceplates.
5) How accurate is the hold time on the BEA pneumatic push button, and can I set it after it is installed?
The delay is field adjustable anywhere from 2 to 60 seconds and holds to within +/-5% at 72 deg. F. It is a mechanical adjustment on the pneumatic mechanism, so you can dial it in on the wall after the plate is up and re-set it later if the traffic pattern changes. Note the accuracy figure is referenced at 72 deg. F, so a cold vestibule will drift more than a conditioned corridor.
6) Should I use a pneumatic push button or an electronic timer button for a high traffic entry?
A pneumatic button like the 10ACPBDAX is the choice when you do not want to run power to the actuator and do not want electronics in the wall. It carries a product life test of 1 million operations and the design deliberately minimizes moving parts. Where it does not fit is anything needing wireless transmit, low energy operator handshaking, or a timing range past 60 seconds; those call for an electronic actuator with its own supply.
7) Which button size should I specify, the 1-5/8 inch or the 2 inch?
Two sizes are offered: 1-5/8 inch standard and 2 inch large. The larger face is easier to strike with an elbow, a cart, or a gloved hand, which is why it tends to go on healthcare and accessible entries. Both sizes are available on the jamb and the single-gang plate, and both cover the faceplate footprints stated for those plates, so the size choice does not change your wall prep.
8) Will the stainless faceplate on this pneumatic button hold up in a hospital corridor or a school hallway?
Construction is a stainless steel faceplate with a colored, anodized aluminum button, which is why it goes into healthcare entry points, schools, and municipal buildings. The wear case is covered by the 1 million operation life test. For a property manager standardizing a building, the same three markings and two button sizes run across every jamb and single-gang plate, so the openings match.
