Professional Touchless Activation Solution for Harsh Environments

The BEA MS09 Series touchless actuator delivers reliable hands-free activation using advanced microwave motion technology with IP65 environmental protection rating. This surface-mount device features an adjustable detection zone specifically engineered for harsh and industrial environments, including wash-down facilities. The MS09 detects moving objects such as hands, pallet jacks, or forklifts, making it ideal for hospitals, pharmacies, clean rooms, and food service applications where touchless operation is essential.

Professional Features & Benefits

• IP65 Environmental Protection: Fully sealed against dust and water jets for reliable operation in harsh industrial environments and wash-down facilities.
• Microwave Motion Technology: Advanced detection system ensures consistent and dependable activation regardless of environmental conditions or surface contamination.
• Adjustable Detection Zone: Customizable sensing area allows precise configuration for specific application requirements and reduces false activations.
• Versatile Object Detection: Detects hands, pallet jacks, forklifts, and other moving objects for flexible activation in various industrial and commercial settings.
• Surface Mount Design: Easy installation with conduit connectivity ensuring watertight connections in demanding environments.
• Industrial-Grade Construction: Built to withstand harsh conditions including temperature extremes, moisture, and chemical exposure common in industrial facilities.
• Touchless Hygiene Solution: Eliminates cross-contamination risks in healthcare, food service, and clean room applications where sanitation is critical.

Technical Specifications

• Technology: Microwave Doppler Radar
• Radiated Frequency: 24.125 GHz
• Radiated Power Density: 5 mW / cm2
• Detection Mode: Motion (bidirectional)
• Detection Range: 4 in - 24 in (adjustable)
• Output: Relay with switch-over contact (free of potential)
• Max. Contact Current: 1 A (resistive)
• Max. Contact Voltage: 60 VDC / 125 VAC
• Max. Switching Power: 30 W (DC) / 60 VA (AC)
• Output Hold Time: 0.5 s (in pulse mode)
• Supply Voltage: 12 - 24 VAC +/-10% | 12 - 24 VDC 30% / -10%
• Power Consumption: < 1.2 W
• Material / Colors: ABS / PC, White
• Cable Type: Compatible with standard, 4-conductor low voltage cable (cable not supplied)
• Temperature Range: -4 deg. F - 131 deg. F (-20 deg. C - 55 deg. C)
• Degree of Protection: NEMA 4 / IP65
• Dimensions: 3.15 in (W) x 3.23 in (H) x 2.165 in (D)
• Norm Conformance: EMC: 2004/108/EC; FCC: G9B-MS08 / 2ABWS-10TD900PB; IC: 4680A-MS08 / 4680A-10TD900PB

Installation & Operation

1. Verify electrical requirements match available power supply and confirm current capacity before proceeding with installation.
2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
3. Mount the unit in the specified location ensuring adequate clearance for wiring access, ventilation, and future service requirements.
4. Route and connect wiring according to manufacturer wiring diagrams using conduit connectivity for watertight installation. Use appropriate wire gauge and connectors for the application.
5. Configure operational settings including detection zone adjustment per application requirements to minimize false activations.
6. Restore power and test all functions including normal operation, detection sensitivity, and integration with connected door systems or access control equipment.
7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

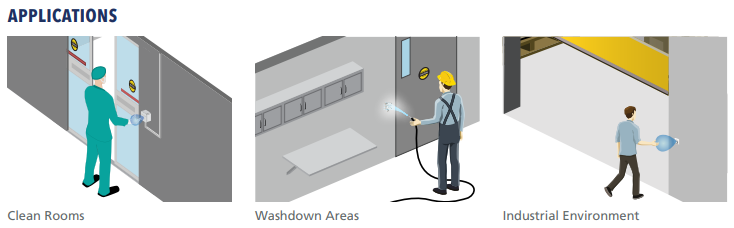

Professional Applications

• Healthcare Facility Automatic Door Systems
• Food Service and Processing Facilities
• Pharmaceutical Clean Room Environments
• Industrial Warehouse Loading Docks
• Chemical Processing and Wash-Down Areas
• Commercial Kitchen Access Points
• Laboratory and Research Facility Entrances

Why Choose BEA Quality?

BEA MS09 Series touchless actuators deliver professional-grade reliability with IP65 environmental protection and microwave motion technology engineered for demanding industrial applications. The adjustable detection zone and surface-mount design with conduit connectivity ensure dependable performance in harsh environments where traditional activation methods fail. Built for commercial applications where consistent touchless operation and environmental durability are essential.
