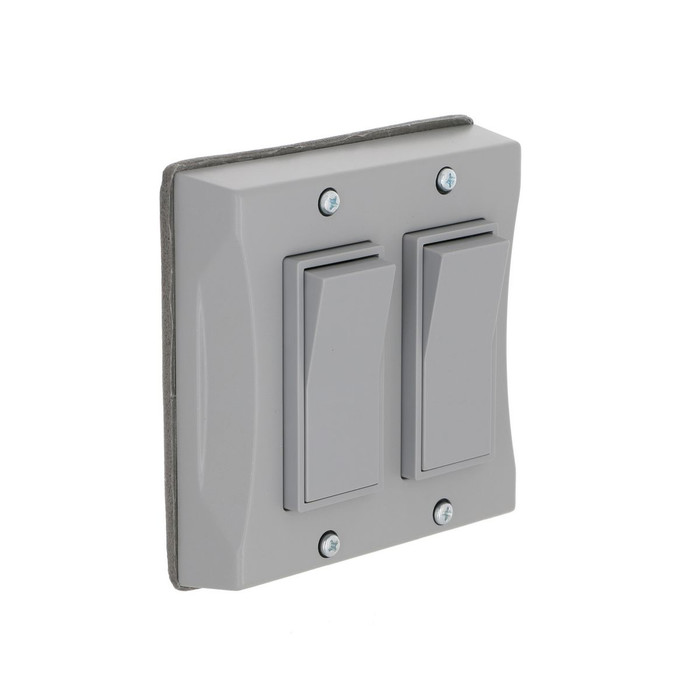

Bell 5127-0 Outdoor Comforts Series 2-Gang Vertical Decorator Weatherproof Cover, Gray
The Bell 5127-0 Outdoor Comforts Series 2-Gang Vertical Decorator Weatherproof Cover is a nonmetallic, gray device cover engineered to protect two decorator-style switches from the elements in outdoor and exterior installations. Featuring a vertical mounting orientation and a compact 1.545 in depth profile, this cover is built for durable, weather-resistant performance and is cULus Listed for code-compliant electrical work.
Key Features
- Trade Size: 1.545 in depth profile keeps the cover low and unobtrusive on exterior device boxes.
- Durable Construction: Nonmetallic material resists corrosion and weather exposure for long-lasting outdoor performance.
- Configuration: 2-Gang decorator switch configuration accommodates two Decora-style switches or devices in a single cover plate.
- Mounting Method: Vertical mounting orientation for standard exterior device box installations.
- Cover Type: Decorator switch cover style designed to seal and shield decorator-style switches from moisture and debris.
- Finish: Gray finish complements common exterior wall colors and siding.
- Series: Part of the Bell Outdoor Comforts® Series, built for weatherproof protection of outdoor electrical devices.
Certifications & Compliance
- cULus Listed
Technical Specifications
- Product Material: Nonmetallic
- Product Color: Gray
- Product Depth: 1.545 in
- Construction: Nonmetallic
- Box Type: 2-Gang
- Configuration: 2 Decorator Switch
- Cover Type: Decorator Switch
- Mounting Method: Vertical
- Series: Outdoor Comforts® Series
- Certified Listed: cULus Listed
Typical Applications
- Outdoor Decorator Switch and Device Protection
- Exterior Wall Switch Installations
- Residential and Light Commercial Outdoor Electrical
- Weatherproof Cover Replacement for Existing 2-Gang Boxes
- Vertical Device Box Configurations
Why Bell?
Bell's Outdoor Comforts Series is purpose-built for exterior electrical protection, combining nonmetallic, weather-resistant construction with a decorator-style profile that blends into residential and light commercial exteriors. With cULus Listing, the 5127-0 delivers dependable, code-compliant coverage for two decorator switches, making it a reliable choice for professionals and homeowners upgrading outdoor device protection.
Manufacturer Resources
Spec Sheet
Product Specs
- list_batch:
- BELL-20260916
- Product Material:
- Nonmetallic
- Product Color:
- Gray
- Product Depth:
- 1.545 in
- Construction:
- Nonmetallic
- Box Type:
- 2-Gang
- Configuration:
- 2 Decorator Switch
- Cover Type:
- Decorator Switch
- Mounting Method:
- Vertical
- Series:
- Outdoor Comforts® Series
- Certified Listed:
- cULus Listed
- Product Type:
- Weatherproof Receptacle Cover
- Department:
- Electrical
- Product Subgroup:
- Weatherproof Covers
- Product Group:
- Wiring Devices
Bell 5127-0 – Frequently Asked Questions
1) Will the Bell 5127-0 cover fit a 2-gang outdoor box mounted vertically?
That is exactly the orientation it is built for. The 5127-0 is a 2-gang cover with vertical mounting, so the two decorator openings stack one above the other. If your exterior box is set horizontally (gangs side by side), this plate will not line up and you need the horizontal version instead.
2) Does the Bell 5127-0 fit toggle switches or only Decora-style devices?
Decorator devices only. The 5127-0 is configured for 2 decorator switches, so the openings are rectangular Decora cutouts. Standard toggle switches or duplex receptacles will not seat in it.
3) Can I use the Bell 5127-0 over an outdoor receptacle that has a cord plugged in all the time?
No. The 5127-0 is a decorator switch cover, not an in-use (while-in-use) enclosure, and it has no room for a cord to exit. For a cord left plugged in, use an in-use cover such as the TayMac MM420W 1-gang Extra Duty polycarbonate cover.
4) Can I swap the Bell 5127-0 onto an existing 2-gang outdoor box without changing the box?
Yes, provided the existing box is a 2-gang vertical configuration and the devices inside are decorator style. It is sold as a replacement cover for existing 2-gang boxes, so the box, conduit, and wiring stay as they are. If the old devices are toggles, plan on swapping them for Decora switches at the same time.
5) Is the Mulberry 30552 a substitute for the Bell 5127-0 on a two-gang outdoor switch box?
No. The Mulberry 30552 (BAC1SV) is a weatherproof 1-gang single receptacle cover and is sold in packs of 100, so it fits neither the gang count nor the device style of a two-gang decorator switch opening. The Bell 5127-0 is configured for two decorator switches with vertical mounting. Use the 30552 only where a single round receptacle needs covering.
6) What should I use instead of the Bell 5127-0 if the box holds receptacles that stay plugged in outdoors?
The Bell 5127-0 is a 2-gang decorator switch cover, so it seals around two Decora-style devices rather than around a plugged-in cord. For an opening where a cord stays connected, the TayMac MM420W is a 1-gang weatherproof in-use cover in the EXTRA DUTY Series, molded in polycarbonate and finished in white, which encloses the device while a plug remains inserted. The trade-off is gang count and device style: one gang and an in-use hood versus the Bell's two decorator openings in gray nonmetallic.
7) How far off the wall does the Bell 5127-0 weatherproof cover stick out?
Depth is 1.545 in, which keeps it fairly flat against the siding. That matters where a shutter, trim board, or door swing is close to the box, and it is enough clearance to enclose the switch bodies and the lid mechanism.
8) Is the Bell 5127-0 an approved cover for a code inspection on exterior switches?
It is cULus Listed, so it carries both US and Canadian listing for the weatherproof device cover application. Gray nonmetallic construction, which will not corrode on a coastal or high-humidity wall the way a painted metal plate can.
9) For a bulk order covering many outdoor boxes, how does the Mulberry 11525 differ from the Bell 5127-0?
The Mulberry 11525 (CV72R3330R) is a 5 inch square weatherproof cover rated 30A, from the 3330 series, supplied in packs of 100 - it is sized for a 5 inch square box and a single high-amperage device. The Bell 5127-0 is a 2-gang decorator switch cover in gray nonmetallic, cULus Listed, with a 1.545 in depth profile for a standard exterior two-gang device box. Match the cover to the box: 5 inch square versus 2-gang decorator.
10) My drawing calls for an extra duty in-use cover. Does the Bell 5127-0 meet that, or do I need a different part?
The Bell 5127-0 is a decorator switch cover in nonmetallic gray, cULus Listed - it shields two decorator switches but is not an in-use style hood. Where the spec calls for extra duty in-use protection, the TayMac MM420W is a polycarbonate 1-gang in-use cover in the EXTRA DUTY Series. If the opening is genuinely two gangs of switching, the Bell part is the device match; if the spec language governs, the in-use cover is the one to quote.
11) What part number do I order for the Bell 2-gang vertical decorator weatherproof cover in gray?
Order Bell 5127-0, part of the Outdoor Comforts Series. That single number covers the gray nonmetallic 2-gang vertical decorator configuration; there are no separate finish or size choices to specify.
