BEST BEST 1W7B2 Electric Switch Lock, Single Switch, SPDT, Key Position 2 - 12 o'clock BES-1W7B2

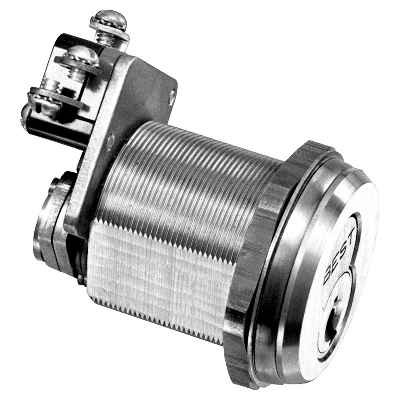

BEST 1W7B2 Electric High Security Key Switch Lock with SPDT Single Switch

(No reviews yet) Write a Review

Model: 1W7B2626
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$350.00
$135.00
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

BEST 1W7B2 Electric High Security Key Switch Lock with SPDT Single Switch

Professional Electric Switch Lock for High Security Applications

The BEST 1W7B2 electric switch lock delivers high security key switch functionality with SPDT (Single Pole-Double Throw) configuration and maintained switch action. This Grade 1 heavy-duty unit features a double D lock cylinder design that prevents slipping and turning, with screw terminals for easy installation. Operating at temperatures up to +176°F (+80°C) with 1/2 HP rating at 125-250 VAC, this UL recognized switch lock integrates seamlessly into BEST interchangeable core systems for versatile electrical control applications.

Professional Features & Benefits

  • High Security Double D Cylinder: Double D lock cylinder design prevents slipping and turning for enhanced security and reliable operation.
  • SPDT Switch Configuration: Single pole-double throw maintained switch action provides flexible circuit control options for various applications.
  • Heavy-Duty Contact Ratings: Handles up to 15 amps resistive at 125 VAC/VDC and 250 VAC, with 1/2 HP rating for demanding electrical loads.
  • High Temperature Operation: Operates reliably at temperatures up to +176°F (+80°C) for challenging environmental conditions.
  • Easy Installation Design: Screw terminals provide secure connections and simplified wiring for professional installation.
  • BEST System Integration: Compatible with BEST interchangeable core systems for unified key control and management.
  • UL Recognition: UL recognized components ensure compliance with electrical safety standards for commercial applications.
  • Grade 1 Construction: Heavy-duty Grade 1 rating provides exceptional durability for high-traffic commercial environments.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Duty Level: Heavy Duty
  • Electronic: Yes
  • Grade: Grade 1
  • Keyed: Yes
  • Product Category: Mechanical Locks
  • Product Group: Mechanical Locks
  • Product Subgroup: Bored Locksets
  • Product Type: Electric Switch Lock
  • Series: 1W Series
  • Subcategory: Bored Locksets

Installation & Operation

  1. Verify electrical requirements match available power supply. Confirm voltage and amperage capacity meets the contact ratings: 15 amps resistive at 125 VAC/VDC, 0.6 amps at 125 VDC, 0.3 amps at 250 VDC.
  2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
  3. Mount the unit in the specified location ensuring adequate clearance for wiring access, ventilation, and future service requirements.
  4. Route and connect wiring to screw terminals according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the SPDT switch configuration.
  5. Configure operational settings including maintained switch action per application requirements and verify proper key operation.
  6. Restore power and test all functions including normal operation, switch contact operation, and integration with connected electrical systems.
  7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

  • Commercial Building Security Systems
  • Industrial Control Panel Access
  • Electrical Equipment Protection
  • Machine Operation Controls
  • Emergency System Activation
  • High Security Facility Access Points
  • Critical Infrastructure Protection

Why Choose BEST Quality?

BEST electric switch locks deliver professional-grade reliability with Grade 1 heavy-duty construction and UL recognized components rated for demanding commercial applications. The double D cylinder design and high-temperature operation capability ensure dependable performance in challenging environments. Engineered for seamless integration with BEST interchangeable core systems where unified security management and electrical control reliability are essential.

Product Specs

Series:
1W Series
Subcategory:
Bored Locksets
Grade:
Grade 1
Duty Level:
Heavy Duty
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Product Type:
Electric Switch Lock
Keyed:
Yes
Electronic:
Yes
Commercial/Residential:
Commercial
Tags:
best key switcheskey lock switch electrical, lfic switch
Product Category:
Mechanical Locks
Department:
Door Hardware

BEST 1W7B2626 – Frequently Asked Questions

1) What applications is the 1W7B2 electric key switch best suited for?
The 1W7B2 electric high security key switch is designed for access control systems, security panels, and electrical equipment requiring keyed activation. Common uses include gate operators, alarm panels, and industrial control circuits.
2) What does SPDT mean and how does it affect wiring?
SPDT stands for Single Pole Double Throw. This switch has one common terminal and two switched terminals, allowing it to control two separate circuits or switch between normally open and normally closed positions.
3) What are the key positions on this switch?
The 1W7B2 has key positions at 2 and 12 o'clock. The key can be removed in both positions, providing secure operation whether the switch is activated or deactivated.
4) What electrical ratings should I verify for my application?
Check the voltage and current ratings on the switch specification sheet. Verify your circuit load does not exceed the switch's electrical capacity. Contact the manufacturer for specific electrical ratings if not clearly marked.
5) How do I determine the correct mounting requirements?
Measure the panel thickness and cutout diameter required. Check the manufacturer's installation template for exact dimensions. Ensure adequate clearance behind the panel for wiring connections and switch body.
6) What makes this a high security key switch?
High security features typically include restricted key blanks, pick-resistant cylinders, and reinforced construction. The exact security features depend on the cylinder type and manufacturer specifications.
7) Can keys be removed in both positions?
Yes, the 2-12 o'clock key positions indicate the key can be removed at both the 2 o'clock and 12 o'clock positions, providing flexibility for different operational requirements.
8) What wire gauge should I use for connections?
Wire gauge depends on the current load and circuit requirements. Use wire rated for the actual load current, not just the switch rating. Follow NEC guidelines for your specific installation.
9) How do I maintain this type of key switch?
Keep the key cylinder clean and lubricated with appropriate lock lubricant. Check electrical connections periodically for tightness. Protect from moisture and corrosive environments unless rated for such conditions.
10) What environmental factors should I consider?
Consider temperature range, humidity, dust, and vibration in the installation environment. Check the switch's IP rating if moisture protection is needed. Indoor switches may not be suitable for outdoor applications.
11) Are replacement parts available for this switch?
Replacement availability depends on the manufacturer and specific model. Key cylinders may be replaceable separately from the switch body. Check with the manufacturer for parts availability and service options.
