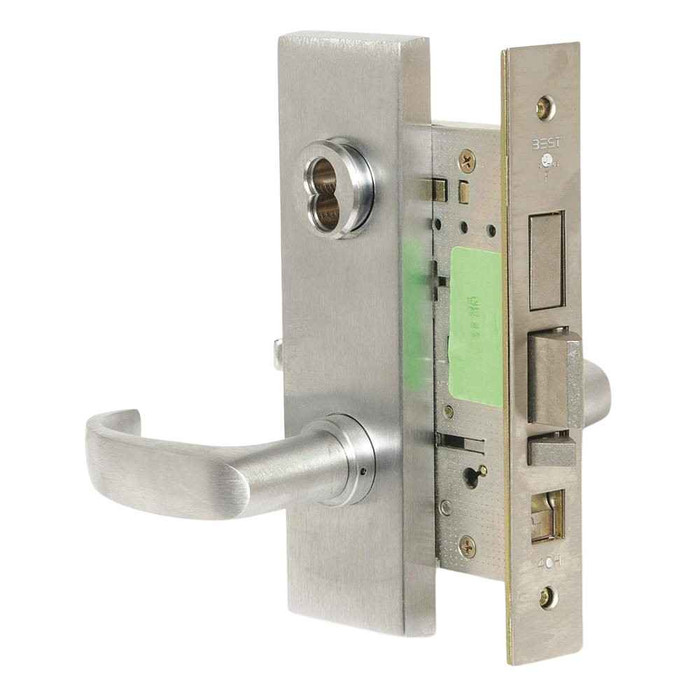

BEST 45H Series Heavy Duty Mortise Lock with Privacy Function and Escutcheon Trim

(No reviews yet) Write a Review

Model: 45H0LB3J626
$1,302.00
$806.69
Selected Finish is
Selected Lever Style is
Selected Trim Style is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,302.00
$806.69
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

BEST 45H Series Heavy Duty Mortise Lock with Privacy Function and Escutcheon Trim

Professional Privacy Function Mortise Lock Solution

The BEST 45H Series Heavy Duty Mortise Lock delivers commercial-grade security with privacy function operation and escutcheon trim design. Featuring a 2-3/4" backset and 8" H x 1-1/4" W x 1/16" T stainless steel faceplate, this lock meets ANSI A156.13 Series 1000 Grade 1 Operation and Strength standards. Constructed with 0.095" cold rolled steel case and solid stainless steel latchbolt with 3/4" throw for reliable commercial applications.

Professional Features & Benefits

  • Heavy-Duty Construction: 0.095" cold rolled steel case, cover, and armored front provide exceptional strength and durability for demanding commercial environments.
  • Enhanced Latch Design: Solid one-piece stainless steel anti-friction latch provides 50% more surface contact with strike for superior strength and security with precision-engineered curve for enhanced cycle life.
  • Roller Bearing Hub Mechanism: Provides smooth, wear-resistant operation with lever return spring mechanism located in trim for enhanced protection against lever droop.
  • Field Reversible Operation: Reversible latch rotates 180 degrees for easy handing change without opening case, with four position hub toggle design for flexible configuration.
  • Armored Front Protection: Completely surrounds latch and deadbolt providing increased lateral strength with staked assembly design for self-alignment during installation.
  • Enhanced Case Integrity: Four case cover screws at each corner plus interlocking armored front and cover design at the latch for maximum security.
  • Visual Lock Indication: Locking toggle includes clear indication of "locked" and "unlocked" states with optional padlock icon indicators.
  • Self-Aligning Installation: Self-aligning trim mechanism and faceplate automatically adjusts to proper bevel during installation for fast, accurate mounting.

Technical Specifications

45H Series –The design and operation of the BEST® mortise lock meets the intent
of the standard for ANSI A117.1 section 404.2.6.
Builders Hardware Manufacturers Association:
45H Series –ANSI A156.13, Series 1000, Grade 1 Operation and Strength, Grade 2 Security. To meet Grade 1 Security, a drill resistant core
(1CD, 1CDP, 1CDF, or 1CDX) must be used with escutcheon trims, and 1EK7K4 high security cylinder must be used with sectional trims.
47H Series – ANSI A156.13, Series 1000, Grade 1 Operational, Strength, and Security

Auxiliary bolt – Stainless steel, non-handed.
Backset – 2-3/4"
Case –0.095” cold rolled steel, 5- 7/8" H x 7/8" D x 4-1/16" W. Steel is zinc dichromate plated for corrosion protection.
Deadbolt – Stainless steel, 1" throw.
Latchbolt –Solid stainless steel, 3/4" throw. Latch is oil-impregnated for anti-friction operation. Reversible without opening case.
Strike – For complete strike package spec’s see page 5.
Door Thickness – Standard lock configuration designed for doors 1-3/4" thick. Thick door configuration available for doors up to
5" thick (specify thickness when ordering).
Faceplate –Stainless steel, brass or bronze material, 8" H x 1-1/4" W x 1/16" T. Lock face automatically adjusts to proper bevel during
installation.
Products protected by one or more of the following patents: 4,873,853 5,590,555 5,794,472
Finishes –
• 605 - bright brass, clear coated
• 606 – satin brass, clear coated
• 611 – bright bronze, clear coated
• 612 – satin bronze, clear coated
• 613* – oxidized satin bronze, oil rubbed
• 618 – bright nickel plated, clear coated (brass base material)
• 619 – satin nickel plated, clear coated (brass base material)
• 622 – flat black coated (brass base material) 625 – brightchromium plated (brass base material)
• 626 – satin chromium plated (brass base material)
• 629 – bright stainless steel
• 630 – satin stainless steel
• 690* – dark bronze coated (brass base material)
*613 finish is designed to wear over time, providing an “antique” appearance.
*690 finish will continue as a dark brown appearance over time.
Antimicrobial Finish –
• 626AM – satin chrome plated with UltraShield™ antimicrobial protected coating
• 630AM – satin stainless steel with UltraShield™ antimicrobial protected coating
The BEST UltraShield finish inhibits the growth of bacteria and other microbes on the surface of the hardware.
NOTE: BEST UltraShieldTM option is recommended for use on any hardware application where product cleanliness is a high priority. i.e;.
Hospital/Healthcare, Elderly Care, Education, Transportation, Food-Service, Hospitality.

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness (standard 1-3/4" or up to 5" thick door configuration), stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces with 2-3/4" backset measurement.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions for mortise lock installation.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications, utilizing self-aligning trim mechanism for proper positioning.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion, ensuring latch and deadbolt function correctly.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose BEST Quality?

BEST 45H Series mortise locks deliver professional-grade reliability with 0.095" cold rolled steel construction and solid stainless steel components engineered for demanding commercial applications. Meeting ANSI A156.13 Series 1000 Grade 1 Operation and Strength standards, these locks provide the dependable performance essential for high-traffic commercial environments. Enhanced features like roller bearing hub mechanism and anti-friction latch design ensure long-term operational reliability where consistent performance is critical.

Product Specs

Series:
45H
Standard Cylinder:
SFIC Prep Less Core
Duty Level:
Heavy Duty
Keyed Function:
Non-Keyed
Product Group:
Mechanical Locks
Product Subgroup:
Mortise Locks and Trim
Product Type:
Mortise Locks
Subcategory:
Mortise
Keyed:
No
Commercial/Residential:
Commercial
Lock Type:
Mortise
Lock Function:
Privacy/Bed/Bath
Product Attribute:
Mortise Locks
Electronic:
No
Product Function:
Privacy/Bed/Bath
Face Plate:
8" H x 1-1/4" W x 1/16" T
Product Category:
Mechanical Locks
Backset (Distance):
2-3/4"
Department:
Door Hardware

BEST 45H0LB3J626 – Frequently Asked Questions

1) Will the BEST 45H privacy mortise lock fit a door thicker than 1-3/4 inches?
The standard 45H configuration is built for 1-3/4 inch doors. BEST also builds a thick door configuration for doors up to 5 inches, but the thickness has to be specified at time of order, so it isn't something you adapt in the field. Measure the leaf before ordering.
2) Does the 45H privacy mortise lock need a key or cylinder?
No. The LB privacy function is non-keyed, operated by a thumbturn inside with the locking toggle showing locked or unlocked. The 45H case does come with an SFIC prep less core as the standard cylinder arrangement, so a small format interchangeable core can be added where the trim calls for it, but nothing is required for the privacy function to work.
3) Do I have to order the BEST 45H privacy lock handed?
No. The latch is reversible and rotates 180 degrees for a handing change without opening the case, and the hub uses a four position toggle. The auxiliary bolt is non-handed as well. That makes it practical to stock one lock for both hands across a building.
4) Will the 45H latch engage my existing ANSI strike?
The latchbolt is solid one-piece stainless with a 3/4 inch throw, and the privacy function also carries a stainless deadbolt with a 1 inch throw thrown by the inside turn. A standard ANSI mortise strike with a deadbolt cutout will take both. If your current frame only has a latch-only strike prep, you need the full strike package for the deadbolt.
5) Is the BEST 45H Grade 1, and what does it take to get Grade 1 security?
The 45H meets ANSI A156.13 Series 1000, Grade 1 Operation and Strength, with Grade 2 Security as built. To reach Grade 1 Security with escutcheon trim, a drill resistant core (1CD, 1CDP, 1CDF or 1CDX) must be used; with sectional trims it takes the 1EK7K4 high security cylinder. If your spec demands Grade 1 across operation, strength and security out of the box, the 47H Series is the one that carries all three.
6) What is a direct alternative to the BEST 45H privacy mortise lock from another manufacturer?
The Cal-Royal NM8440 is a heavy duty Grade 1 privacy mortise lockset with a deadbolt, and the Hager 3840S is a Grade 1 privacy mortise lock with a 2-3/4 inch backset like the 45H. The BEST 45H privacy lock uses a 2-3/4 inch backset and is supplied with SFIC prep less core, so if you are keying a building on Best small format cores the 45H keeps that program intact while the Cal-Royal and Hager bodies are their own platforms.
7) The door does not need to lock at all - what should I use instead of a privacy mortise lock?
For a door that only needs to latch, a passage function mortise lock is the right part: the Falcon MA101 is a Grade 1 heavy-duty mortise passage lock with field reversible operation, the Hager 3810E is a Grade 1 passage mortise lock with escutcheon trim and a 2-3/4 inch backset, and the Schlage PM010 is a Grade 1 passage latch mortise lock. The BEST 45H with LB privacy function adds the inside locking toggle and thumbturn operation those passage locks do not have.
8) I need the same 45H body but the door has to be keyed - what do I order instead?
The 45H in the LB privacy configuration is non-keyed, so for a keyed opening look at a keyed mortise function instead: the Accentra 8805FL is a Grade 1 storeroom mortise lock, the Cal-Royal NM8080 is a Grade 1 storeroom mortise lockset with an interchangeable core option, the Cal-Royal NM8050 is a Grade 1 office/entrance mortise lockset with auxiliary deadlatch, and the Corbin Russwin ML2003 is a Grade 1 mortise classroom lockset.
9) For a behavioral health or patient room, is the 45H privacy lock the right choice or is there a ligature resistant option?
For anti-ligature openings, TownSteel makes the MRX-L-01 stainless steel Grade 1 heavy duty anti-ligature lever mortise lockset and the MRX-A-01 ligature resistant arch trim mortise lockset, both passage function for 1-3/4 inch doors, and the Marks USA 5PDN is a Grade 1 hospital passage push/pull paddleset that is ligature resistant and ADA compliant. The BEST 45H offers 626AM and 630AM UltraShield antimicrobial finishes for healthcare cleanliness but uses conventional lever and knob trim.
10) A classroom needs to be securable from inside - is the 45H privacy function acceptable?
Classroom security openings are usually specified with a dedicated classroom function instead. The Marks USA LA318GJ is a Grade 1 classroom security indicator mortise lockset with ANSI strike and steel escutcheon for 1-3/4 inch doors, the Cal-Royal NM8070 is a Grade 1 classroom mortise lockset with auxiliary deadlatch, and the Corbin Russwin ML2003 is a Grade 1 mortise classroom lockset. The BEST 45H LB is a privacy/bed/bath function and is non-keyed.
11) What do I have to specify when ordering a BEST 45H privacy mortise lock?
Four things decide the part: trim style (J wrought escutcheon, M forged escutcheon, or N forged escutcheon with concealed cylinder), lever or knob design (3 solid tube with return, 12 solid tube no return, 4 round knob, contour with angle return, curved with or without return, or gull wing), finish, and door thickness if the leaf is over 1-3/4 inches.
12) Which BEST 45H finish should I use in a hospital or elderly care facility?
Two antimicrobial options are offered: 626AM satin chrome and 630AM satin stainless, both with the UltraShield coating that inhibits bacteria and microbe growth on the hardware surface. BEST recommends them for healthcare, elderly care, education, transportation, food service and hospitality. Twelve standard finishes are also available, from 605 bright brass through 690 dark bronze.
13) What are the alternatives to the BEST 45H if I need a privacy mortise lock from another brand?
Two direct peers we carry: the Hager 3840S 3800 Series Grade 1 privacy mortise lock with a 2-3/4 inch backset, listed for 1-3/4 to 2 inch doors, and the Cal-Royal NM8440 Grade 1 privacy mortise lockset with deadbolt for 1-3/4 inch doors. If you want privacy function with electronic credentialing instead of a thumbturn, the Schlage CO-100 standalone electronic mortise lock is a Grade 1 privacy unit with a keypad reader for 1-3/4 inch doors. The 45H is the one to pick when you are standardizing on BEST SFIC across the building.
14) Is escutcheon trim or sectional rose trim the right choice on a BEST 45H?
Escutcheon trim covers the mortise pocket with one long plate, which is what you want if the door face is scarred from a previous lock, and on the 45H it is also the trim that reaches Grade 1 Security when paired with a drill resistant core. Sectional trim needs the 1EK7K4 high security cylinder to get there instead. Three escutcheon options are offered: J wrought, M forged, and N forged with a concealed cylinder for a clean face where no key is used.
15) Does the BEST 45H privacy lock meet accessibility requirements for lever operation?
BEST states the design and operation of the 45H mortise lock meets the intent of ANSI A117.1 section 404.2.6. If you are specifying for an accessible opening, choose one of the lever designs rather than the 4 round knob, since a knob is not an accessible operating device.
16) Is there an electronic privacy mortise lock if I want keypad credentials instead of a mechanical thumbturn?
The Schlage CO-100-MS-40-KP is a standalone electronic mortise lock with privacy function and a keypad reader, Grade 1 heavy duty for 1-3/4 inch doors. The Schlage Electronics LEBMB-ADD is a mobile-enabled mortise lock covering privacy, office and apartment functions at Grade 2 with a 3 hour fire rating. The BEST 45H is a mechanical, non-electronic lock, so it needs no power or credential management.
17) Will a Baldwin 6301 mortise body drop into a door prepped for the BEST 45H?
No. The Baldwin 6301 entry/apartment mortise lock body uses a 2-1/2 inch backset, while the BEST 45H is a 2-3/4 inch backset, so the trim and cylinder centerlines will not line up in an existing 45H mortise pocket. The Baldwin is also an entrance/apartment function rather than privacy.
18) What is the difference between the BEST 45H escutcheon privacy lock and the Hager 3840S privacy mortise lock?
Both are 2-3/4 inch backset privacy mortise locks. The Hager 3840S is listed for doors 1-3/4 to 2 inches thick. The BEST 45H standard configuration is built for 1-3/4 inch doors with a thick door configuration available up to 5 inches when specified at order, and it is offered in wrought, forged, and forged concealed cylinder escutcheon trims across fourteen finishes including two UltraShield antimicrobial options.
19) Can I just add a mortise thumbturn to an existing lock instead of buying the 45H privacy lock?
A thumbturn such as the Sargent 130KB standard mortise thumbturn for the 8200 Series or the 130W with round backplate for the 7800 Series is a trim component for a lock body already prepped for it, not a lock in itself. The BEST 45H LB is a complete heavy duty mortise lock with privacy function, escutcheon trim, and an 8 inch stainless faceplate, so it is the part to order when the door has no privacy-capable body in it.
20) What should I use for a dormitory corridor door rather than the 45H privacy lock?
The Sargent 7925 is a Grade 1 heavy duty dormitory exit function mortise lock with rose trim and a single cylinder deadbolt, which is the usual pick for a corridor or dorm room door needing outside key control. The BEST 45H LB is a non-keyed privacy function intended for bed and bath type openings, and it is supplied with escutcheon trim rather than rose.
21) How do the 613 and 690 finishes on the BEST 45H hold up over time?
613 oxidized satin bronze, oil rubbed, is designed to wear over time and develop an antique appearance, so it will not stay uniform across a run of doors. 690 dark bronze coated stays a dark brown appearance over time. If you need a consistent match across a building for years, a plated and clear coated finish like 626 satin chrome or 630 satin stainless is the steadier choice.
22) Will the levers droop on a BEST 45H in a high traffic corridor?
The lever return spring sits in the trim rather than the case, which is the arrangement BEST uses to guard against lever droop, and the hub runs on roller bearings for wear resistance. Case construction is 0.095 inch cold rolled steel, zinc dichromate plated, with four cover screws at the corners and an interlocking armored front. It is catalogued as heavy duty commercial hardware.
23) I only need a dummy or inactive side on the second leaf - what pairs with a 45H opening?
For an inactive leaf you want a dummy trim rather than a working lock body. The Schlage L0170 is a Grade 1 mortise non-keyed half dummy lever trim for 1-3/4 inch doors, and Emtek offers dummy mortise entrance locksets in the Brisbane 3019, Memphis 3102, Hamilton 3104 and Manhattan 3106 designs. The BEST 45H carries a working privacy latch and deadbolt, so it is not the part for a fixed inactive leaf.
