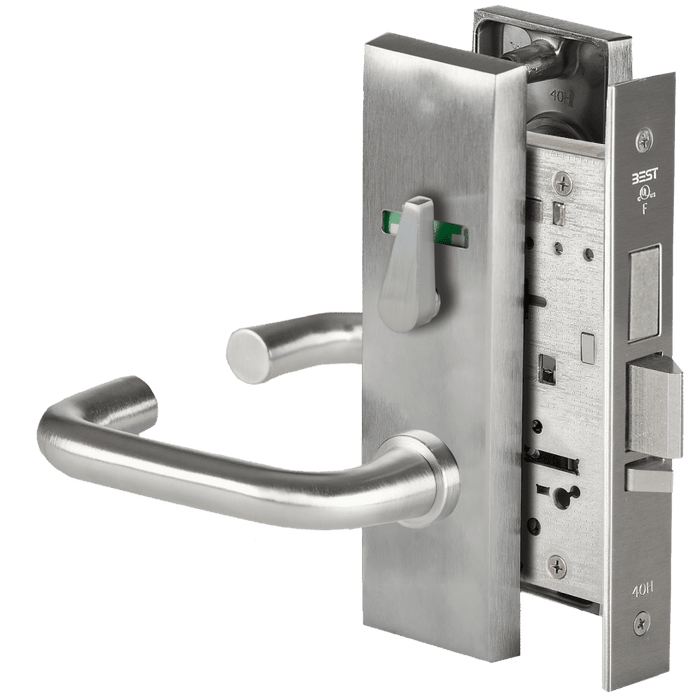

BEST 45H Series Heavy Duty Mortise Lock with Privacy Function and Double Visual Indicator

BEST 45H Series Heavy Duty Mortise Lock with Privacy Function and Double Visual Indicator

Professional Grade Mortise Lock with Enhanced Security Features

The BEST 45H Series Heavy Duty Mortise Lock delivers commercial-grade security with privacy function and double visual indicator capability. Engineered with solid one-piece stainless steel anti-friction latch providing 50% more surface contact with strike, this mortise lock features a 2-3/4" backset and 8" H x 1-1/4" W x 1/16" T stainless steel faceplate. ANSI A156.13 Series 1000 Grade 1 Operation and Strength certified with 0.095" cold rolled steel case construction for maximum durability in demanding commercial applications.

Professional Features & Benefits

• Enhanced Latch Design: Solid one-piece stainless steel anti-friction latch provides 50% more surface contact with strike for superior strength and security with precision-engineered curve for enhanced cycle life.
• Heavy-Duty Construction: 0.095" cold rolled steel case, cover, and armored front manufactured for exceptional strength and durability in commercial applications.
• Visual Indicator System: Double visual indicator shows padlock icon open for unlocked and padlock icon closed and painted red for locked states for clear operational status.
• Reversible Operation: Non-handed design with reversible latch that rotates 180 degrees for easy handing change without opening case, plus four position hub toggle for flexible configuration.
• Armored Front Protection: Completely surrounds latch and deadbolt providing increased lateral strength with staked assembly design for self-alignment during installation.
• Roller Bearing Mechanism: Roller bearing hub mechanism provides smooth, wear-resistant operation with lever return spring mechanism in trim for enhanced protection against lever droop.
• ANSI Grade 1 Certified: Meets ANSI A156.13 Series 1000 Grade 1 Operation and Strength requirements for commercial applications with ADA compliance per ANSI A117.1 section 404.2.6.
• Antimicrobial Finish Options: Available with UltraShield antimicrobial protected coating (626AM and 630AM finishes) for healthcare and high-cleanliness applications.

Technical Specifications

45H Series –The design and operation of the BEST® mortise lock meets the intent
of the standard for ANSI A117.1 section 404.2.6.
Builders Hardware Manufacturers Association:
45H Series –ANSI A156.13, Series 1000, Grade 1 Operation and Strength, Grade 2 Security. To meet Grade 1 Security, a drill resistant core
(1CD, 1CDP, 1CDF, or 1CDX) must be used with escutcheon trims, and 1EK7K4 high security cylinder must be used with sectional trims.
47H Series – ANSI A156.13, Series 1000, Grade 1 Operational, Strength, and Security

Auxiliary bolt – Stainless steel, non-handed.
Backset – 2-3/4"
Case –0.095” cold rolled steel, 5- 7/8" H x 7/8" D x 4-1/16" W. Steel is zinc dichromate plated for corrosion protection.
Deadbolt – Stainless steel, 1" throw.
Latchbolt –Solid stainless steel, 3/4" throw. Latch is oil-impregnated for anti-friction operation. Reversible without opening case.
Strike – For complete strike package spec’s see page 5.
Door Thickness – Standard lock configuration designed for doors 1-3/4" thick. Thick door configuration available for doors up to
5" thick (specify thickness when ordering).
Faceplate –Stainless steel, brass or bronze material, 8" H x 1-1/4" W x 1/16" T. Lock face automatically adjusts to proper bevel during
installation.
Products protected by one or more of the following patents: 4,873,853 5,590,555 5,794,472
Finishes –
• 605 - bright brass, clear coated
• 606 – satin brass, clear coated
• 611 – bright bronze, clear coated
• 612 – satin bronze, clear coated
• 613* – oxidized satin bronze, oil rubbed
• 618 – bright nickel plated, clear coated (brass base material)
• 619 – satin nickel plated, clear coated (brass base material)
• 622 – flat black coated (brass base material) 625 – brightchromium plated (brass base material)
• 626 – satin chromium plated (brass base material)
• 629 – bright stainless steel
• 630 – satin stainless steel
• 690* – dark bronze coated (brass base material)
*613 finish is designed to wear over time, providing an “antique” appearance.
*690 finish will continue as a dark brown appearance over time.
Antimicrobial Finish –
• 626AM – satin chrome plated with UltraShield™ antimicrobial protected coating
• 630AM – satin stainless steel with UltraShield™ antimicrobial protected coating
The BEST UltraShield finish inhibits the growth of bacteria and other microbes on the surface of the hardware.
NOTE: BEST UltraShieldTM option is recommended for use on any hardware application where product cleanliness is a high priority. i.e;.
Hospital/Healthcare, Elderly Care, Education, Transportation, Food-Service, Hospitality.

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness (standard 1-3/4" or up to 5" thick door configuration), mortise pocket dimensions, and handing requirements.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces for proper alignment of the self-aligning trim mechanism.
3. Prepare door mortise pocket and frame strike preparation according to specifications, ensuring proper clearance for the armored front and strike box assembly.
4. Install mortise lock case in door pocket and secure with appropriate fasteners, allowing the armored front to self-align with door bevel during installation.
5. Configure four position hub toggle to determine locked/unlocked operation for each hub and adjust lever return spring mechanism for proper horizontal positioning.
6. Test lock operation including privacy function, visual indicator display, and latch/deadbolt engagement to verify proper function. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Commercial Office Buildings
• Healthcare Institutions
• Educational Facilities
• Government and Municipal Buildings
• Multi-Tenant Residential Properties
• Industrial and Warehouse Facilities
• Hospitality and Hotel Properties

Why Choose BEST Quality?

BEST 45H Series mortise locks deliver professional-grade reliability with solid stainless steel construction and 0.095" cold rolled steel case rated for heavy-duty commercial applications. ANSI Grade 1 certification ensures dependable performance with enhanced security features including armored front protection and anti-friction latch design. Engineered for demanding commercial applications where dependable security and operational reliability are essential.
