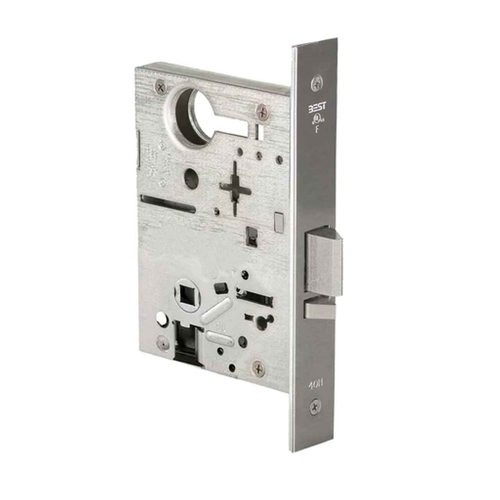

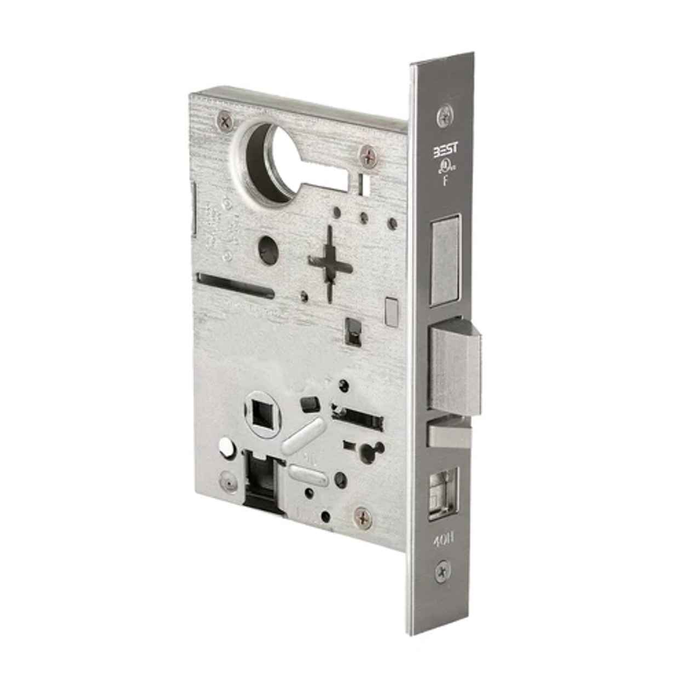

The BEST 45H Series mortise lock body delivers heavy-duty performance with office function operation and field reversible design. This lockbody-only unit features a 2-3/4" backset, 1" deadbolt throw, and 3/4" latchbolt throw for comprehensive security. Constructed from 0.095" cold rolled steel with stainless steel components, this ANSI A156.13 Grade 1 Operation and Strength rated lock provides reliable performance for demanding commercial environments.

Professional Features & Benefits

• Heavy-Duty Steel Construction: 0.095" cold rolled steel case, cover, and armored front provide exceptional strength and durability for high-traffic commercial applications.
• Field Reversible Design: Reversible latch rotates 180 degrees for easy handing change without opening the case, reducing installation time and inventory requirements.
• Enhanced Security Features: Solid one-piece stainless steel anti-friction latch provides 50% more surface contact with strike for superior strength and security performance.
• Roller Bearing Hub Mechanism: Provides smooth, wear-resistant operation with enhanced cycle life and reduced maintenance requirements.
• Armored Front Protection: Completely surrounds latch and deadbolt providing increased lateral strength with self-aligning installation capability.
• ANSI Grade 1 Performance: Meets ANSI A156.13 Series 1000 Grade 1 Operation and Strength requirements for commercial-grade reliability.
• Comprehensive Bolt Configuration: 1" throw stainless steel deadbolt and 3/4" throw solid stainless steel latchbolt for complete security coverage.
• Anti-Microbial Finish Options: Available with UltraShield antimicrobial protected coating (626AM, 630AM) for healthcare and high-cleanliness applications.

Technical Specifications

45H Series –The design and operation of the BEST® mortise lock meets the intent
of the standard for ANSI A117.1 section 404.2.6.
Builders Hardware Manufacturers Association:
45H Series –ANSI A156.13, Series 1000, Grade 1 Operation and Strength, Grade 2 Security. To meet Grade 1 Security, a drill resistant core
(1CD, 1CDP, 1CDF, or 1CDX) must be used with escutcheon trims, and 1EK7K4 high security cylinder must be used with sectional trims.
47H Series – ANSI A156.13, Series 1000, Grade 1 Operational, Strength, and Security

Auxiliary bolt – Stainless steel, non-handed.
Backset – 2-3/4"
Case –0.095” cold rolled steel, 5- 7/8" H x 7/8" D x 4-1/16" W. Steel is zinc dichromate plated for corrosion protection.
Deadbolt – Stainless steel, 1" throw.
Latchbolt –Solid stainless steel, 3/4" throw. Latch is oil-impregnated for anti-friction operation. Reversible without opening case.
Strike – For complete strike package spec’s see page 5.
Door Thickness – Standard lock configuration designed for doors 1-3/4" thick. Thick door configuration available for doors up to
5" thick (specify thickness when ordering).
Faceplate –Stainless steel, brass or bronze material, 8" H x 1-1/4" W x 1/16" T. Lock face automatically adjusts to proper bevel during
installation.
Products protected by one or more of the following patents: 4,873,853 5,590,555 5,794,472
Finishes –
• 605 - bright brass, clear coated
• 606 – satin brass, clear coated
• 611 – bright bronze, clear coated
• 612 – satin bronze, clear coated
• 613* – oxidized satin bronze, oil rubbed
• 618 – bright nickel plated, clear coated (brass base material)
• 619 – satin nickel plated, clear coated (brass base material)
• 622 – flat black coated (brass base material) 625 – brightchromium plated (brass base material)
• 626 – satin chromium plated (brass base material)
• 629 – bright stainless steel
• 630 – satin stainless steel
• 690* – dark bronze coated (brass base material)
*613 finish is designed to wear over time, providing an “antique” appearance.
*690 finish will continue as a dark brown appearance over time.
Antimicrobial Finish –
• 626AM – satin chrome plated with UltraShield™ antimicrobial protected coating
• 630AM – satin stainless steel with UltraShield™ antimicrobial protected coating
The BEST UltraShield finish inhibits the growth of bacteria and other microbes on the surface of the hardware.
NOTE: BEST UltraShieldTM option is recommended for use on any hardware application where product cleanliness is a high priority. i.e;.
Hospital/Healthcare, Elderly Care, Education, Transportation, Food-Service, Hospitality.

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness (standard 1-3/4" or thick door configuration up to 5"), mortise pocket dimensions, and handing requirements.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces for proper backset alignment.
3. Prepare door mortise pocket to accommodate case dimensions of 5-7/8" H x 7/8" D x 4-1/16" W and route for faceplate installation.
4. Install lockbody into mortise pocket and secure with appropriate fasteners per manufacturer torque specifications.
5. Adjust latch and deadbolt operation for proper alignment with strike, utilizing the field reversible design as needed for door handing.
6. Test lock operation to verify proper function of office function operation, latch engagement, and deadbolt extension. Refer to manufacturer documentation for complete installation details and troubleshooting.
