BEST 45H Series Heavy Duty Mor...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$635.00
$404.59

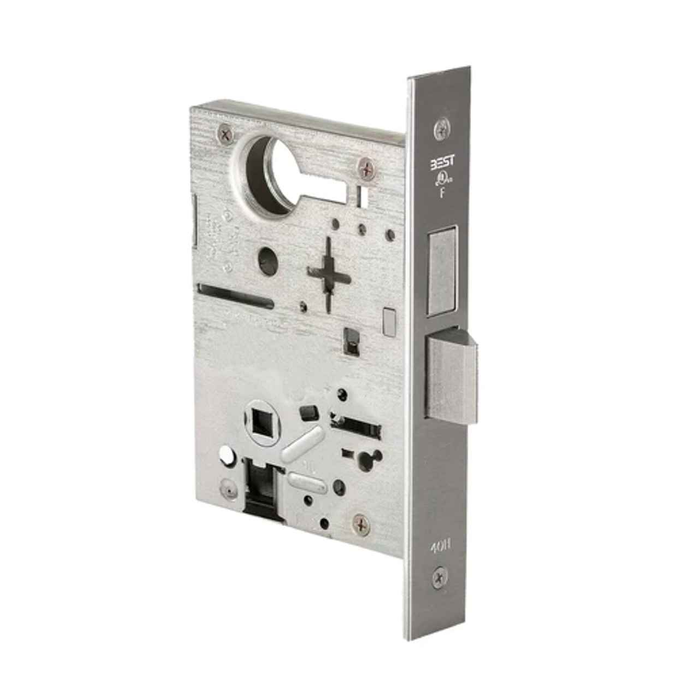

BEST 45H Series Heavy Duty Mortise Lock Case Privacy Function Field Reversible

BEST 45H Series Heavy Duty Mortise Lock Case Privacy Function Field Reversible

(No reviews yet) Write a Review

Model: 45HCAL626
$635.00
$404.59
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$635.00
$404.59
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

BEST 45H Series Heavy Duty Mortise Lock Case Privacy Function Field Reversible

Professional Heavy Duty Mortise Lock Solution

The BEST 45H Series mortise lock case delivers Grade 1 operational and strength performance with privacy function capability. This field reversible lock case features a 2-3/4" backset and accommodates doors 1-3/4" thick with thick door configurations available up to 5" thick. Constructed from 0.095" cold rolled steel with zinc dichromate plating for corrosion protection, this heavy duty mortise lock meets ANSI A156.13 Series 1000 Grade 1 standards.

Professional Features & Benefits

  • Heavy Duty Construction: 0.095" cold rolled steel case, cover, and armored front provide exceptional strength and durability for demanding commercial applications.
  • Enhanced Case Integrity: Four case cover screws at each corner plus interlocking armored front and cover design at the latch ensure superior structural performance.
  • Solid Stainless Steel Anti-Friction Latch: One-piece design provides 50% more surface contact with strike for superior strength and security with precision-engineered curve for enhanced cycle life.
  • Field Reversible Design: Reversible latch rotates 180 degrees for easy handing change without opening case, with four position hub toggle design for flexible configuration.
  • Roller Bearing Hub Mechanism: Provides smooth, wear-resistant operation for long-term reliability in high-traffic applications.
  • Self-Aligning Installation: Armored front self-aligns with door bevel during installation, and trim mechanism ensures fast, easy, and accurate installation.
  • Grade 1 Performance: ANSI A156.13 Series 1000 Grade 1 Operation and Strength certification with Grade 2 Security rating for professional applications.
  • Antimicrobial Finish Options: Available with UltraShield antimicrobial protected coating in 626AM and 630AM finishes for healthcare and high-cleanliness applications.

Technical Specifications

45H Series –The design and operation of the BEST® mortise lock meets the intent
of the standard for ANSI A117.1 section 404.2.6.
Builders Hardware Manufacturers Association:
45H Series –ANSI A156.13, Series 1000, Grade 1 Operation and Strength, Grade 2 Security. To meet Grade 1 Security, a drill resistant core
(1CD, 1CDP, 1CDF, or 1CDX) must be used with escutcheon trims, and 1EK7K4 high security cylinder must be used with sectional trims.
47H Series – ANSI A156.13, Series 1000, Grade 1 Operational, Strength, and Security

Auxiliary bolt – Stainless steel, non-handed.
Backset – 2-3/4"
Case –0.095” cold rolled steel, 5- 7/8" H x 7/8" D x 4-1/16" W. Steel is zinc dichromate plated for corrosion protection.
Deadbolt – Stainless steel, 1" throw.
Latchbolt –Solid stainless steel, 3/4" throw. Latch is oil-impregnated for anti-friction operation. Reversible without opening case.
Strike – For complete strike package spec’s see page 5.
Door Thickness – Standard lock configuration designed for doors 1-3/4" thick. Thick door configuration available for doors up to
5" thick (specify thickness when ordering).
Faceplate –Stainless steel, brass or bronze material, 8" H x 1-1/4" W x 1/16" T. Lock face automatically adjusts to proper bevel during
installation.
Products protected by one or more of the following patents: 4,873,853 5,590,555 5,794,472
Finishes –
• 605 - bright brass, clear coated
• 606 – satin brass, clear coated
• 611 – bright bronze, clear coated
• 612 – satin bronze, clear coated
• 613* – oxidized satin bronze, oil rubbed
• 618 – bright nickel plated, clear coated (brass base material)
• 619 – satin nickel plated, clear coated (brass base material)
• 622 – flat black coated (brass base material) 625 – brightchromium plated (brass base material)
• 626 – satin chromium plated (brass base material)
• 629 – bright stainless steel
• 630 – satin stainless steel
• 690* – dark bronze coated (brass base material)
*613 finish is designed to wear over time, providing an “antique” appearance.
*690 finish will continue as a dark brown appearance over time.
Antimicrobial Finish –
• 626AM – satin chrome plated with UltraShield™ antimicrobial protected coating
• 630AM – satin stainless steel with UltraShield™ antimicrobial protected coating
The BEST UltraShield finish inhibits the growth of bacteria and other microbes on the surface of the hardware.
NOTE: BEST UltraShieldTM option is recommended for use on any hardware application where product cleanliness is a high priority. i.e;.
Hospital/Healthcare, Elderly Care, Education, Transportation, Food-Service, Hospitality.

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness (standard 1-3/4" or thick door up to 5"), backset requirements, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose BEST Quality?

BEST 45H Series mortise locks deliver professional-grade reliability with 0.095" cold rolled steel construction and Grade 1 ANSI A156.13 certification. The solid stainless steel anti-friction latch and roller bearing hub mechanism provide enhanced durability for demanding commercial applications. Engineered for demanding commercial applications where dependable performance and field flexibility are essential.

Product Specs

Series:
45H
Standard Cylinder:
SFIC Prep Less Core
Duty Level:
Heavy Duty
Keyed Function:
Non-Keyed
Product Group:
Mechanical Locks
Product Subgroup:
Mortise Locks and Trim
Product Type:
Mortise Lock Body
Subcategory:
Mortise
Keyed:
Yes
Commercial/Residential:
Commercial
Lock Type:
Mortise
Lock Function:
Privacy
Product Attribute:
Mortise Locks
Electronic:
No
Product Function:
Privacy/Bed/Bath
Face Plate:
8" H x 1-1/4" W x 1/16" T
Product Category:
Mechanical Locks
Backset (Distance):
2-3/4"
Department:
Door Hardware

BEST 45HCAL626 – Frequently Asked Questions

1) What exactly comes with the BEST 45H privacy mortise lock, and do I need to order trim separately?
What ships is the mortise lock case only, the 45HCA privacy lockbody. Levers or knobs, roses or escutcheons, and the thumbturn/emergency release trim are ordered separately, as is the strike package. Plan the trim order alongside the case so the door prep, faceplate and trim all land together.
2) Will the BEST 45H mortise lock fit a 1-3/4 inch door, and what about thicker doors?
Standard configuration is built for 1-3/4 inch doors, which is the usual commercial thickness. For anything heavier, a thick door configuration covers doors up to 5 inches, but the thickness has to be specified when the order is placed - it is not a field adjustment.
3) Do I have to specify handing for the BEST 45H, or is it reversible in the field?
Handing is selected at order time - right hand, left hand, right hand reverse bevel or left hand reverse bevel. The latch itself is field reversible, rotating 180 degrees without opening the case, and the hub uses a four position toggle, so a handing change on site does not require a new lock body.
4) Will this BEST mortise lock latch into the strike I already have on the frame?
The latchbolt is solid stainless steel with a 3/4 inch throw and the deadbolt throws 1 inch, so the strike lip and box depth have to suit those. A 7/8 inch lip-to-center strike is available as an ordering option if your frame reveal needs the deeper lip; otherwise the standard strike package applies.
5) Is a privacy mortise lock the right choice for a patient room or dorm bathroom, or should I use an office function?
Privacy function is the one for restrooms, bed/bath and patient toilet rooms: it locks from the inside by thumbturn with no key cylinder for normal operation, and it is non-keyed. If you need the door to be lockable from the corridor side with a key, privacy is the wrong function and an office or entrance function case from the same 45H family is what you want.
6) Is the BEST 45H Grade 1, and does it meet accessibility requirements?
The 45H Series carries ANSI A156.13, Series 1000, Grade 1 Operation and Strength with a Grade 2 Security rating. Its design and operation meet the intent of ANSI A117.1 section 404.2.6. If a project spec demands Grade 1 Security, the 47H Series is the one certified Grade 1 for operational, strength and security.
7) Which finish should I pick for a hospital or food service facility?
For cleanliness-critical areas there are two antimicrobial choices: 626AM satin chrome and 630AM satin stainless, both with the UltraShield coating that inhibits growth of bacteria and other microbes on the hardware surface. BEST recommends it for hospital and elderly care, education, transportation, food service and hospitality. Thirteen standard finishes are also offered, from 605 bright brass through 690 dark bronze.
8) I need to match the 613 oil-rubbed bronze on the rest of my doors - will it stay looking the same?
613 oxidized satin bronze, oil rubbed is a living finish and is meant to wear over time into an antique appearance, so it will not stay uniform across doors installed at different dates. If you want a dark bronze that holds its look, 690 is a coated dark bronze that continues as a dark brown appearance over time.
9) Does this BEST 45H privacy lock take a small format interchangeable core?
The case is prepped for a BEST SFIC and ships less core. On the privacy function there is no keyed operation for everyday use, so the core prep is there for the emergency release side of the application rather than for keying the room like an office door.
10) How durable is the BEST 45H case for a high traffic corridor?
Heavy duty commercial build: 0.095 inch cold rolled steel case, cover and armored front, zinc dichromate plated against corrosion, with four case cover screws at each corner and an interlocking armored front and cover at the latch. The hub runs on roller bearings and the one-piece stainless anti-friction latch gives 50 percent more contact surface with the strike.
11) Can I order the BEST 45H with tamper resistant screws?
Security head screws are an ordering choice on the mortise case, yes or no. Worth taking on restrooms in schools, transit facilities and other public buildings where the faceplate is reachable by anyone using the room.
12) Does the lock face need to be beveled to match my door edge?
No separate bevel order. The armored front self-aligns with the door bevel during installation, so the same case works on a beveled edge without specifying it, and the stainless, brass or bronze faceplate seats flush.
