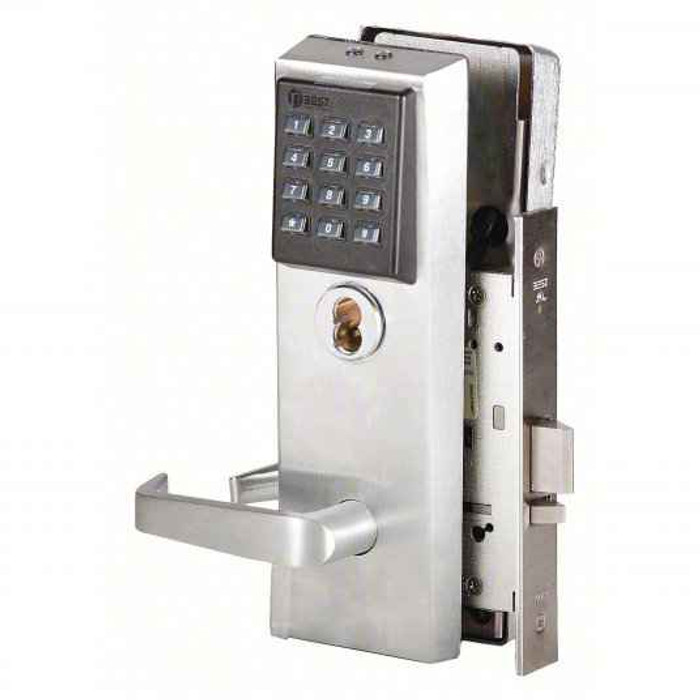

BEST 45HZ EZ Series - (DV) Latch with Key Override Function, Standalone Keypad Mortise Locks

BEST 45HZ Keypad EZ Mortise Locks

The EZ standalone electronic keypad lock is simple to operate, but actually it’s masquerading as a one-door sophisticated access control system.

This heavy-duty mechanical platform is designed and manufactured for the toughest applications and can be utilized with a variety of trim styles.

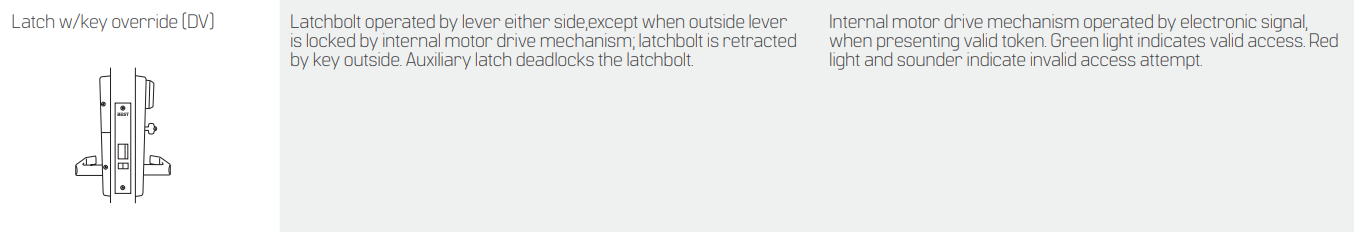

Mortise Function

Mechanical Specifications

• Case – 0.095" cold rolled steel, 5-7/8" H x 7/8" D x 4-1/16" W. Steel is zinc dichromate plated for corrosion protection.
• Faceplate – Brass or bronze material, 8" H x 1-1/4" W x 1/16" T. Automatically adjusts to proper bevel during installation
• Strike – Brass, bronze, or stainless steel base material, 4-7/8" H x 1-1/4" W x 3/32" T. ANSI A115.1. Universal (non-handed) strike supplied standard with lock.
• Backset – 2-3/4"
• Certification – UL listed for GYQS electrically controlled single point locks or latches for use on 3 hour A label doors. The listing applies for both U.S. and Canadian applications.
• Door thickness – Standard lock configuration designed for doors 1-3/4" thick. Thick door configuration available for doors up to 3" thick (specify thickness when ordering).
• Latchbolt – Solid stainless steel, 3/4" throw. Latch is oil-impregnated for anti-friction operation, reversible without opening case.
• Deadbolt – Stainless steel, 1" throw.
• Auxiliary bolt – Stainless steel, non-handed.
• Lever Handle – Brass, bronze, or stainless steel base material. Lever styles 3, 14, and 15 return to a minimum of 1/2" of door surface. Lever 12, 16 and 17 do not return.
• Escutcheon – 10-1/2" H x 3-5/16" W x 1" D (1" at the top, sloping down to 3/4" at the bottom)
