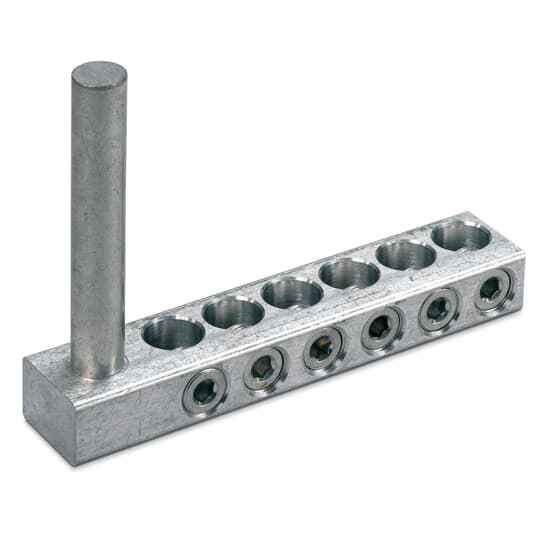

TRANSEYEBOLT CONN 1/0-750 3/4X4 8O
Manufacturer Resources
Product Specs
- Connection Type:
- Mechanical
- Country Of Origin:
- United States (US)
- Insulation Material:
- None
- Number Of Conductors:
- 8
- Product Group:
- Wire & Cable Management
- Product Type:
- Eyebolt Multi-Tap Set-Screw Connector
- Selling Unit Of Measure:
- each
- Standards:
- ANSI C119.4
- Surface Finishing:
- Bare
- Temperature Range:
- up to 90 °C
- Type2:
- Wire connectors
- Wire Size:
- 1/0 to 750 kcmil
- Department:
- Electrical
- Product Subgroup:
- Connectors
- Product Size:
- 12-5/16 inch long, Stud Size 3/4 X 4-1/2
Blackburn ABP 8750 – Frequently Asked Questions
1) What wire sizes does the Blackburn ABP 8750 eyebolt connector accept?
The ABP 8750 takes conductors from 1/0 AWG through 750 kcmil, in any of its 8 set-screw ports. That range lets one block handle a mix of feeder taps and service conductors without changing connectors. Each port is an independent set-screw tap, so the eight openings do not all have to be filled with the same size.
2) How many conductors can I land on a Blackburn ABP 8750 transformer eyebolt connector?
Eight. The ABP 8750 is an 8-port multi-tap set-screw block that mounts on a transformer or equipment stud, so one device services eight taps off a single connection point.
3) What stud size does the ABP 8750 eyebolt connector fit?
It is built for a 3/4 by 4-1/2 inch stud, and the body itself runs 12-5/16 inches long. Measure your transformer or bus stud diameter and usable length before ordering; a smaller-diameter stud or a shorter landing pad will not seat this eyebolt correctly.
4) Is the ABP 8750 insulated, or do I need to cover it after installation?
It ships bare, with no insulation on the body. Any required insulation or re-jacketing has to be added in the field with tape, a molded cover, or an insulating boot appropriate for the system voltage. Plan on that as a separate line item.
5) Is the Blackburn ABP 8750 rated for 90 degree C conductors?
Yes, the connector is rated for service up to 90 degrees C, which covers THHN/THWN-2 and XHHW-2 terminations at their 90 C insulation rating. Ampacity still has to be derated to whatever the terminal rating of the equipment allows.
6) Does this Blackburn multi-tap connector meet ANSI C119.4?
The ABP 8750 is built to ANSI C119.4, the standard covering mechanical connectors for use on electrical conductors. That is the spec an inspector or an engineer typically calls out for set-screw and compression connectors on a submittal.
7) Do I need a crimp tool or dies for the Blackburn ABP 8750?
No. This is a mechanical set-screw connector, so conductors are landed with a hex key or torque wrench rather than a hydraulic crimper and dies. That makes it a practical choice for field taps and retrofits where hauling a crimp tool to the panel is not worth it. Compression lugs are the alternative when the spec requires a crimped, irreversible connection.
8) Is the ABP 8750 made in the USA for Buy American projects?
Country of origin is the United States, which is what a government, school, or transit procurement officer needs for a Buy American or BABA submittal on the electrical package.
9) Is the Blackburn ABP 8750 sold individually or in a box?
Sold each, one connector per order. For a job that needs multiple transformer landings, order one ABP 8750 per stud.
