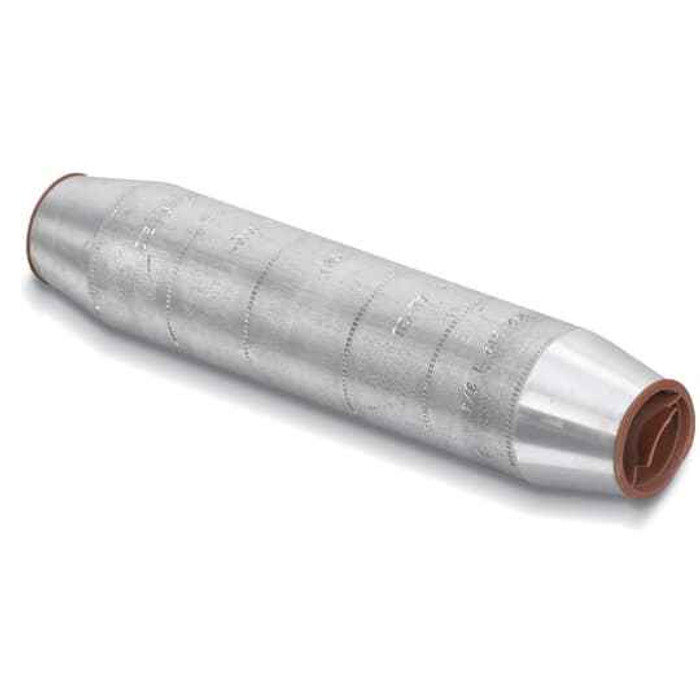

AL TAPERED SPLICE CONCENTRIC 600
Manufacturer Resources
Product Specs
- Connection Type:
- Compression
- Country Of Origin:
- United States (US)
- Insulation Material:
- None
- Number Of Conductors:
- 2
- Product Group:
- Wire & Cable Management
- Product Type:
- Compression Splice Tapered
- Selling Unit Of Measure:
- each
- Standards:
- ANSI C119.4
- Surface Finishing:
- Bare
- Type2:
- Wire or cable compression splice
- Department:
- Electrical
- Product Subgroup:
- Tap Connectors
- Product Size:
- Length 5-29/32 inches
Blackburn ATC 600 – Frequently Asked Questions
1) What is the Blackburn ATC 600 splice used for?
The ATC 600 is a tapered aluminum compression splice for joining two conductors end to end. It takes two conductors, is installed with a compression tool rather than a bolt or set screw, and comes bare with no insulation, so it needs to be insulated or re-covered after crimping if the application calls for it.
2) Does the ATC 600 aluminum splice meet a connector standard for spec work?
Yes. The ATC 600 is built to ANSI C119.4, the standard covering connectors for use between aluminum and copper conductors. If your drawing or utility spec calls out C119.4 compression connectors, this one answers that line.
3) How long is the Blackburn ATC 600 splice barrel?
It measures 5-29/32 inches in length. That matters when you are splicing inside a handhole, pedestal, or pull box: allow for the full barrel plus room for the compression tool head to seat and rotate around it.
4) Does the Blackburn ATC 600 come insulated, or do I need to cover it after crimping?
It ships bare with no insulation. After you compress the splice you cover it yourself, typically with heat shrink or tape build-up, depending on the voltage class and whether the splice is in a wet or direct-buried location.
5) Can I install the ATC 600 splice with a set screw wrench or does it need a crimp tool?
It is a compression connector, so it has to be crimped with a hydraulic or battery compression tool and the correct die. There are no set screws. If you need a tool-free or wrench-installed connection, you want a mechanical set-screw splice instead, not this one.
6) Is the Blackburn ATC 600 sold individually or in a bag?
Each. The ATC 600 is sold as a single splice, manufacturer part number ATC 600, so order one per splice point rather than by the box.
7) Where is the Blackburn ATC 600 splice made?
United States. That answers the Buy American and domestic-content line that shows up on federal, municipal, and utility purchase orders.
