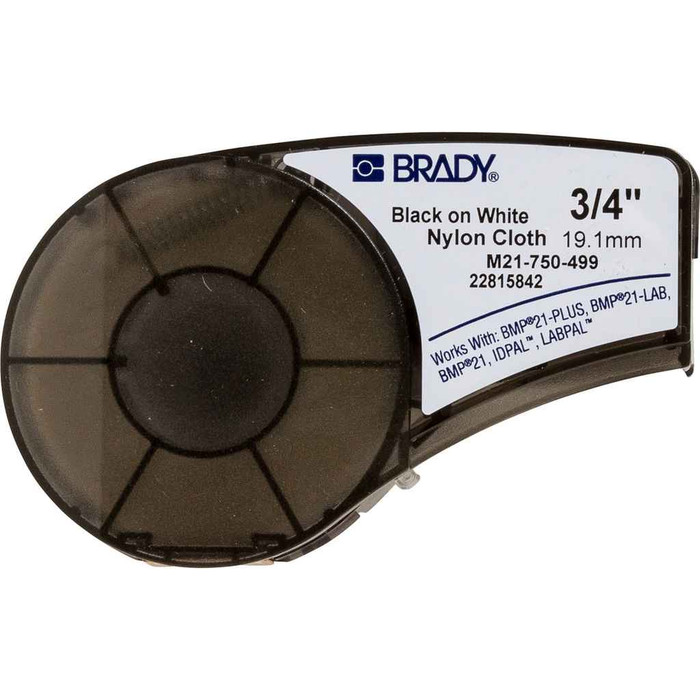

Brady BMP21 Series Nylon Cloth Label Tape 0.75" x 16' Black on White with Permanent Acrylic Adhesive

Brady BMP21 Series Nylon Cloth Label Tape 0.75" x 16' Black on White with Permanent Acrylic Adhesive

Professional Nylon Cloth Labeling Solution for Wire, Cable & General Purpose Applications

Brady BMP21 Series nylon cloth label tape delivers professional-grade identification for wire and cable labeling, laboratory applications, equipment panels, and faceplates. This 0.75" x 16' tape features black text on white nylon cloth material with permanent acrylic adhesive that adheres to smooth, rough, powder coated, and irregular surfaces including those with low surface energy. The all-in-one cartridge design includes both ribbon and label supply for convenient operation with BMP21 series printers.

Professional Features & Benefits

• Nylon Cloth Construction: Provides superior durability and flexibility for demanding industrial and laboratory environments with excellent conformability to irregular surfaces.
• Permanent Acrylic Adhesive: Ensures reliable long-term adhesion to diverse surface types including high surface energy materials for permanent identification needs.
• Wide Temperature Range: Operates from -40�F to 194�F (-40�C to 90�C) enabling use in extreme temperature applications and environments.
• Multi-Surface Compatibility: Adheres effectively to smooth, rough, powder coated, and irregular surfaces providing versatile application capability.
• UL Recognition & CSA Acceptance: Meets rigorous safety standards for electrical and industrial labeling applications ensuring compliance and reliability.
• Chemical & Environmental Resistance: Features abrasion, chemical, humidity, UV, and weather resistance for long-lasting performance in harsh conditions.
• All-in-One Cartridge System: Integrated ribbon and label supply simplifies printer operation and reduces changeover time for increased productivity.

Technical Specifications

• Adhesive Type: Permanent Acrylic
• Adhesive Y N : Yes
• Applications: Data and Telecommunications Labeling; Electrical Labeling; General Identification; Laboratory Label
• Brady Material Number: B-499
• Compatible Surface Types: High Surface Energy
• Contains Ca Prop 65 Substance: Yes Contains-Label not req.
• Contains Heavy Metal S : No - Does not contain
• Continuous Die Cut Materials Supported: Continuous Tapes Only
• Diagram: Icon 5 (circle with centre dot)
• Dimensions Metric : 19.05 mm W x 4.88 m L
• Dot Regulated Product: No = not regulated by DOT
• Enables Industry Compliance: ASTM D 1000; ASTM D 2979; ASTM G 155; CSA Approved; Halogen Free (DIN VDE 0472 part 815); UL Recogn
• Eu Rohs Compliance: Pass 2011/65/EU(Pass 2015/863)
• Eu Rohs Compliant: Yes
• For Use With Printer: BMP�21 LAB Label Printer; BMP�21 Labeler; BMP�21 PLUS Portable Label Printer; IDPAL� Handheld Label
• Label Media Format: Label/Media in Cartridge with Ribbon
• Label Properties: Permanent Adhesive Labels
• Label Tape Size In Ft Yd : 0.75 in W x 16 ft L
• Manufacturer Part Number: M21-750-499
• Material Properties: Autoclavable; Cryogenic storage
• Maximum Service Temperature C: 90 �C
• Maximum Service Temperature F: 194 �F
• Minimum Service Temperature C: -40 �C
• Minimum Service Temperature F: -40 �F
• Primary Noun Basic Function: Label
• Print Technology: Thermal Transfer
• Printer And Label Applications: Wire & Cable
• Printer Compatibility: BMP21-PLUS; BMP21-LAB; BMP21; IDPAL; LABPAL
• Printer Compatibility Print : BMP21-PLUS; BMP21-LAB
• Product Color: Black on White
• Product Finish: Matte
• Product Material: Nylon Cloth
• Pspa Photoluminescence Class: Not Rated
• Quantity Per Row: 1
• Reflective Type: Non-Reflective
• Resistance Properties: Abrasion-Resistant; Chemical-Resistant; Humidity-Resistant; UV-Resistant; Weather-Resistant
• Ribbon Color: Black
• Ribbon Series: R4300
• Roll Length In Ft Yd : 16 ft
• Roll Length Mm Cm M : 4.88 m
• Roll Tape Size Mm Cm M : 19.05 mm W x 4.88 m L
• Roll Width In Ft Yd : 0.75 in
• Roll Width Mm Cm M : 19.05 mm
• Sap B Number: B-499
• Sds Safety Data Sheet Required: No = MSDS/SDS is not required
• Size Length M : 4.88 m
• Size Width Mm : 19.05 mm
• Tape Color: White
• Thickness In Ft Yd : 0.0065 in
• Thickness Mm Cm M : 0.165 mm
• Total Qty Per Pack: 1 / Box
• Trade Name: BMP�21
• Vial Tube Size: 2.0 - 50.0 ml

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Data and Telecommunications Labeling Systems
• Electrical Panel and Equipment Identification
• Laboratory Sample and Equipment Labeling
• Wire and Cable Management Systems
• Industrial Equipment Marking
• Facility Maintenance and Asset Tracking
• General Purpose Identification Applications

Why Choose Brady Quality?

Brady delivers proven reliability with UL recognition and CSA acceptance, ensuring compliance with rigorous safety standards. The autoclavable and cryogenic storage capabilities, combined with comprehensive environmental resistance properties, provide long-lasting performance in the most demanding professional applications.
