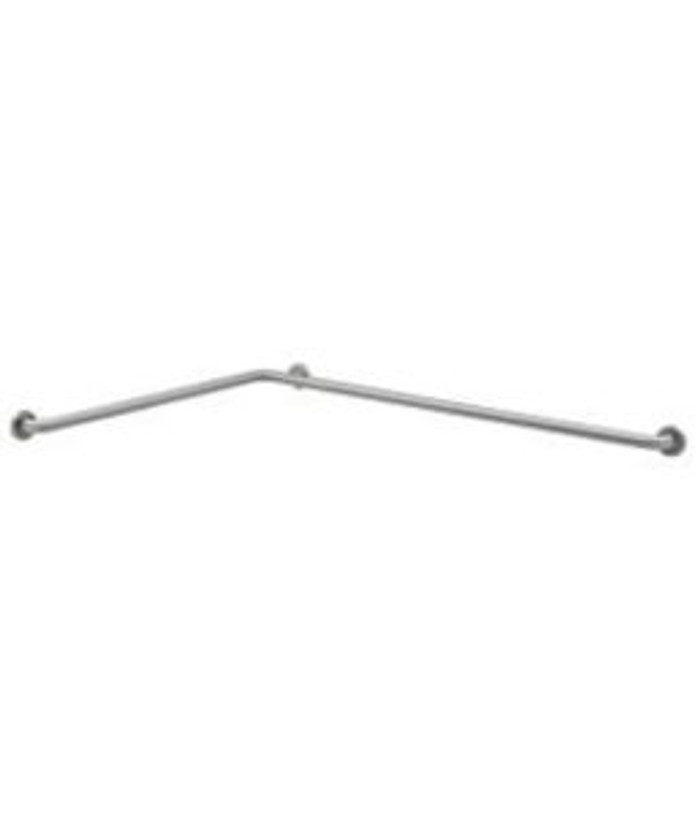

Bobrick 58616 Two-Wall Horizontal Grab Bar

Bobrick 58616 Two-Wall Horizontal Grab Bar

(No reviews yet) Write a Review

Model: 58616

In Stock (leaves warehouse same day if ordered before 3pm ET)

$184.57
$162.69
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Bobrick 58616 Two-Wall Horizontal Grab Bar

1-1/4″ (32mm) diameter tubing. Satin-finish stainless steel with slip resistant surface. Cover snaps over mounting flange to conceal screws. Add .99 for peened surface.

Available finishes:

  • B-58616 Satin
  • B-58616.99 Satin, peened

Features

  • Stainless steel, satin finish
  • Surface Mount
  • 24″ W x 36″ D x 1-1/4″ Diameter
  • Designed to fit into the corner of a compartment, tub, or shower

Products Spec

  • Finish : Satin-Finish Stainless Steel, Satin-Finish Stainless Steel - Peened
  • Configuration : 2 Wall
  • Diameter : 1-1/4" (32mm)

Products Resources

Manufacturer Resources

Product Specs

Gauge:
18 Gauge
Product Style:
Corner
Product Type:
Grab Bars
Features:
ADA Compliant
Product Group:
Washroom/Bath Accessories
Product Subgroup:
Grab Bars
Capacity:
900 lbs
Product Diameter:
1-1/4"
Product Material:
Stainless Steel
Department:
Plumbing
Product Depth:
24"

Bobrick 58616 – Frequently Asked Questions

1) Will the Bobrick 58616 grab bar fit a standard shower or tub corner?
The 58616 is a two-wall corner grab bar, built to run along two adjoining walls of a compartment, tub, or shower. The legs measure 24 inches and 36 inches, with 1-1/4 inch diameter tubing. Both legs mount to the wall surface, so you need solid blocking or backing in both walls at the flange locations, not just one.
2) Is the Bobrick 58616 grab bar ADA compliant, and what load will it hold?
It is listed as ADA compliant, with a 900 lb capacity. The 1-1/4 inch tube diameter is within the ADA gripping surface range for grab bars. The capacity only holds if the mounting substrate does; the flanges need to land on blocking or studs capable of carrying the load.
3) What is the difference between the Bobrick 58616 satin and peened versions?
Same bar, different grip texture. B-58616 is satin-finish stainless steel with a slip resistant surface; B-58616.99 adds a peened (dimpled) gripping surface for wet-hand traction. Both are 18 gauge stainless with 1-1/4 inch tubing and the same 24 x 36 inch two-wall geometry. Wet areas and assisted-use showers usually get the peened version.
4) Are the mounting screws on the Bobrick 58616 grab bar exposed after install?
No. A snap-on cover fits over each mounting flange and conceals the screws once the bar is fastened, which is why it reads clean in a finished restroom and gives vandals nothing obvious to attack.
5) Is the 58616 surface mounted or does it need a recessed wall prep?
Surface mount. The flanges fasten to the finished wall face on both walls, so no recess or chase is required, but you do need adequate backing behind the tile or panel at each of the three flange points.
6) Should I use a two-wall corner grab bar or two straight bars in a shower?
A two-wall bar like the 58616 gives one continuous 24 inch and 36 inch grip that wraps the corner, so a user can transfer around the corner without releasing. Two separate straight bars leave a gap at the corner and need four flange locations instead of three. Choose the corner bar when the layout puts the seat or tub end at an inside corner; choose straight bars when the two required grip runs are on walls that do not meet.
7) Does the Bobrick 58616 match other 1-1/4 inch stainless grab bars already in my building?
Tubing is 1-1/4 inch diameter satin-finish stainless steel, which is the common commercial grab bar size and finish, so it reads consistently alongside existing satin stainless bars of that diameter. If your existing bars are peened, order the B-58616.99 peened version to keep the surface texture uniform.
