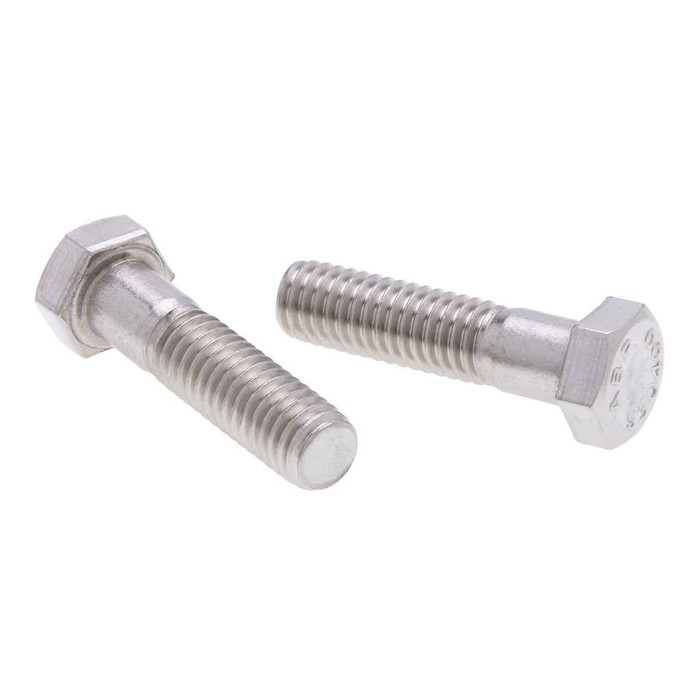

Bolts 10-24 x 1/2 HXBT SS (Jar 100)
Features
- Used in products that require general atmospheric corrosion resistance, such as chemical and food-processing equipment. Some chemical environments may require special corrosion resistant materials and precautions.
- 18-8 and 316 stainless steel cap screws are both made from austenitic alloy
Additional Notes
- Other sizes and quantities available by request
Manufacturer Resources
Product Specs
- Arra Compliant:
- C
- Buy American Compliant:
- C
- Division:
- Electrical H1
- Fastener Head Type:
- Hex
- Fastener Length:
- 2-Jan
- Hardness:
- Rockwell B80-C32
- Language Code:
- EN
- Neurspe:
- https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Hex_Bolt_Dom_18-8_SS_316_SS.pdf
- Order Minimum Imperial:
- 100
- Order Minimum Uom Imperial:
- CT
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Product Height:
- 2.15 in
- Product Length:
- 3 in
- Product Weight:
- 336 g
- Product Width:
- 76.2 MM
- Sub Division:
- Electrical-E H2
- Tensile Strength:
- 85000 - 140000 psi minimum
- Thread Per Inch:
- 24
- Yield Strength:
- 45000 psi minimum
- Department:
- Electrical
- Product Subgroup:
- Bolts
- Product Type:
- Hexagonal Bolt
- Type2:
- Hexagonal Bolt
- Series:
- SBHC and JSBHC
- Product Details:
- Hexagonal Bolt
- Product Material:
- 18-8 Stainless Steel
Metallics JSBH101 – Frequently Asked Questions
1) Will these stainless hex bolts hold up outdoors or in a washdown area?
They're 18-8 stainless steel, which handles general atmospheric corrosion, so outdoor and damp indoor use is fine. The material is also used in chemical and food processing equipment. Aggressive chemical exposure is a different matter, and in that case you want 316 stainless or another specialty alloy rather than 18-8.
2) Are these 18-8 stainless bolts strong enough for structural or load-bearing work?
Tensile strength runs 85,000 to 140,000 psi minimum with a 45,000 psi minimum yield, and hardness is Rockwell B80 to C32. That covers equipment assembly, enclosure and strut hardware, and general mounting. Stainless like this is not a substitute for a graded carbon steel structural bolt, so if a drawing calls out a grade for a load path, match the grade the spec names.
3) How many bolts come in a jar of Metallics JSBH101?
100 pieces per jar, and 100 count is the order minimum, so a jar is the smallest buy. Jar packaging is what keeps a 1/2 inch fastener from scattering in a service van or on a parts shelf. Metallics lists other sizes and quantities by request.
4) Do Metallics JSBH101 bolts meet Buy American or ARRA requirements on a public project?
Metallics lists the JSBH101 as both ARRA compliant and Buy American compliant, with country of origin China. On a federally funded job, give the compliance flags and the origin to the specifying engineer together, since some contracts accept the compliance designation and others enforce a domestic melt and manufacture requirement.
5) Is a hex bolt the right choice here, or should I use a hex cap screw or machine screw?
A hex head is what you want when the fastener gets driven with a wrench or socket rather than a driver, which matters in an electrical enclosure or on equipment where you need controlled torque and no cam-out. In 10-24 x 1/2 the alternative is a slotted or Phillips machine screw, easier in tight quarters but far less torque capacity. The JSBH101 is the hex-head version in 18-8 stainless.
6) Will 18-8 stainless hex bolts cause galvanic corrosion against aluminum or galvanized steel?
Stainless against aluminum or zinc-coated steel is a dissimilar-metal pairing, and in wet or salt-exposed locations the aluminum or zinc is the part that sacrifices. For dry interior use it's a non-issue. Outdoors, isolate with a nylon or neoprene washer, or stay with the same metal family. The 18-8 bolt itself resists general atmospheric corrosion.
7) What does a jar of 100 JSBH101 bolts weigh for a van stock or shipping list?
336 grams, roughly 12 ounces, for the jar of 100. Light enough to carry several sizes on a service truck without a weight penalty.
