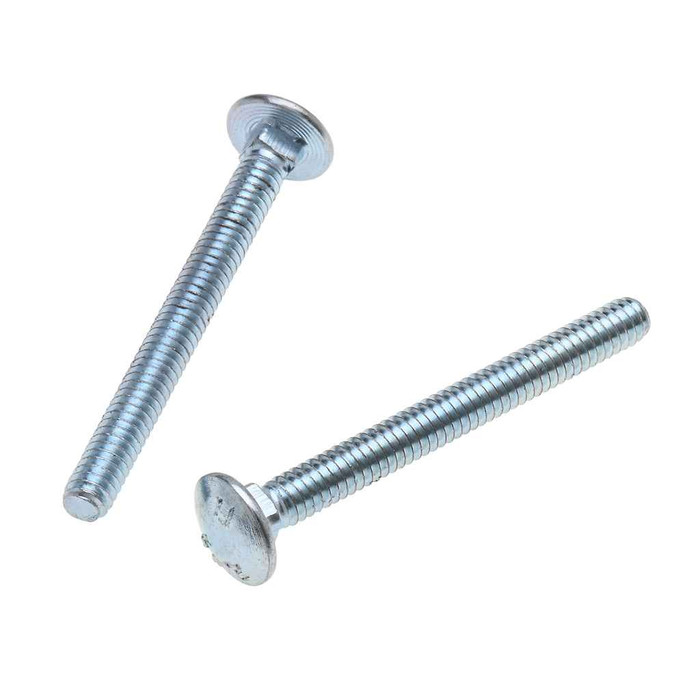

Bolts 1/2-13 X 2 Carriage Blt St-zn (Jar 25)
Additional Notes
- Other sizes and quantities available by request
Manufacturer Resources
Product Specs
- Arra Compliant:
- N
- Buy American Compliant:
- No
- Dimensional Standard:
- ASME B18.5-1990
- Division:
- Electrical H1
- Fastener Head Type:
- Mushroom
- Fastener Head Width:
- 1.032- 1.094 in.
- Fastener Height:
- 0.250 - 0.270
- Fastener Length:
- 2
- Fastener Width:
- 0.492 - 0.515
- Field Application:
- Electrical, Plumbing, Heating, Air Conditioning Industries
- Hardness:
- Rockwell B70-B100
- Language Code:
- EN
- Neurspe:
- https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Carriage_Bolt_18-8_SS_and_316_SS.pdf
- Order Minimum Imperial:
- 25
- Order Minimum Uom Imperial:
- EA
- Outside Diameter:
- 0.483 - 0.515 IN
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Product Height:
- 5.75 in
- Product Length:
- 3.5 in
- Product Weight:
- 1393 g
- Product Width:
- 88.9 MM
- Sub Division:
- Electrical-E H2
- Tensile Strength:
- 60000 psi minimum
- Thread Direction:
- Right Hand
- Thread Per Inch:
- 13
- Yield Strength:
- 36000 psi minimum
- Department:
- Electrical
- Product Subgroup:
- Bolts
- Product Type:
- Hexagonal Bolt
- Type2:
- Hexagonal Bolt
- Series:
- CB and JCB
- Product Finish:
- Zinc
- Product Details:
- Hexagonal Bolt
- Product Material:
- Steel
Metallics JCB33 – Frequently Asked Questions
1) Do carriage bolts come with nuts and washers?
No. The JCB33 jar is bolts only, 25 pieces. You supply the 1/2-13 hex nuts and flat washers separately. Thread is 13 threads per inch, right hand, so any standard 1/2-13 coarse nut threads on.
2) Will this bolt satisfy a Buy American or ARRA requirement on a government job?
No. The JCB33 is marked not Buy American compliant and not ARRA compliant, with country of origin listed as multiple. On federally funded work with domestic sourcing language, you need a domestically produced carriage bolt instead.
3) Is a zinc plated steel carriage bolt okay for outdoor or damp locations?
The JCB33 is plain steel with a zinc finish, which handles general indoor and sheltered outdoor duty but will eventually corrode in wet, coastal, or chemical environments. For continuous moisture or exterior exposure, step up to a stainless carriage bolt in 18-8 or 316 rather than zinc plated.
4) How strong is the Metallics JCB33 carriage bolt?
Rated at 60,000 psi minimum tensile and 36,000 psi minimum yield, with hardness in the Rockwell B70 to B100 range. That is low carbon, general purpose strength, equivalent in class to ordinary unmarked carriage bolt stock. If a drawing calls out a graded structural bolt, this is not a substitute for it.
5) Does the Metallics carriage bolt meet a recognized dimensional spec?
Yes, the CB and JCB carriage bolts are made to ASME B18.5-1990, the round head square neck bolt standard. Head width runs 1.032 to 1.094 inch and the square neck height 0.250 to 0.270 inch, which is why they drop into existing B18.5 prepped holes and fit standard counterbores.
6) Why would an electrical contractor use a carriage bolt instead of a hex bolt?
The mushroom head is smooth and domed with no wrench flats, so nothing snags and there is no sharp corner on the exposed side. The square neck locks in the hole, meaning you tighten from the nut side only, one wrench. Metallics lists these for electrical, plumbing, heating, and air conditioning work, typical for strut, backboards, hanger brackets, and panel standoffs where the head sits where someone can brush against it.
