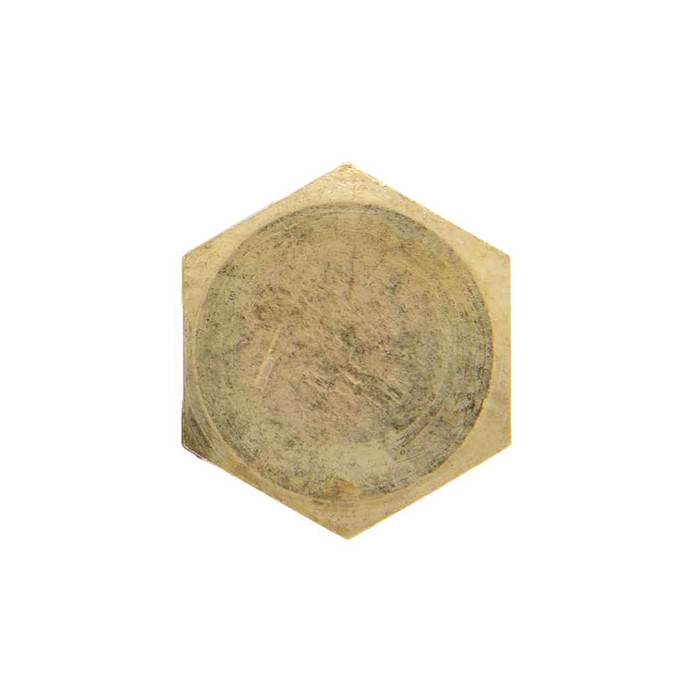

Bolts 1/2-13 X 2 Hxbt Br (Jar 50)
Additional Notes
- other sizes and quantities available by request
Manufacturer Resources
Product Specs
- Arra Compliant:
- C
- Buy American Compliant:
- C
- Division:
- Electrical H1
- Fastener Head Color:
- Brass
- Fastener Head Height:
- 16-May in.
- Fastener Head Type:
- Hex
- Fastener Head Width:
- 0.736 - 0.750 in.
- Fastener Height:
- 0.302 - 0.323
- Fastener Length:
- 2
- Fastener Width:
- 0.840 - 0.866
- Language Code:
- EN
- Order Minimum Imperial:
- 100
- Order Minimum Uom Imperial:
- CT
- Outside Diameter:
- 0.4930 - 0.5000 IN
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Product Height:
- 7.25 in
- Product Length:
- 4.5 in
- Product Weight:
- 6604 g
- Product Width:
- 114.3 MM
- Sub Division:
- Electrical-E H2
- Thread Per Inch:
- 13
- Wrenching Height:
- 0.215
- Department:
- Electrical
- Product Subgroup:
- Bolts
- Product Type:
- Hexagonal Bolt
- Type2:
- Hexagonal Bolt
- Series:
- JBRHC
- Product Details:
- Hexagonal Bolt
- Product Material:
- Brass
Metallics JBRHC33 – Frequently Asked Questions
1) What thread does the Metallics JBRHC33 brass hex bolt take, and will it thread into a 1/2-13 ground lug?
It is a 1/2-13 bolt, 13 threads per inch, with an outside diameter measured at 0.4930 to 0.5000 inch. That is standard 1/2 inch UNC coarse thread, so it mates with any 1/2-13 tapped lug, nut, or ground clamp. Thread length to work with is 2 inches overall.
2) Is the Metallics JBRHC33 bolt solid brass or just brass plated?
Solid brass. The material is listed as brass and the head color as brass, not a plating over steel. That is why it gets specified for grounding and bonding work and in damp or corrosive locations where a plated steel bolt would rust out.
3) Does the JBRHC33 brass bolt meet Buy American or ARRA requirements for a federal or institutional job?
It is flagged compliant for both Buy American and ARRA, which is what a government, school, or healthcare procurement officer needs to see on a funded project. Country of origin is listed as multiple, so if your spec requires a single documented origin per lot, get that confirmed against the lot you receive.
4) How many bolts come in a jar of Metallics JBRHC33, and is there a minimum order quantity?
The JBRHC33 ships as a jar of 50 bolts. The order minimum is 100 count, so plan on two jars as the smallest buy. Metallics does make other sizes and quantities in this brass hex bolt line available by request if 1/2-13 x 2 is not the size you need.
5) Why would an electrician use a brass hex bolt instead of a galvanized or stainless one?
Brass is used where the bolt is part of an electrical path or sits against other non-ferrous metal. It conducts, it will not rust, and it avoids the galvanic pairing you get putting steel against copper bus or copper ground conductors. The JBRHC33 is a 1/2-13 x 2 inch solid brass hex bolt catalogued for electrical work for exactly that reason. For pure structural load with no conductivity requirement, a steel grade bolt is the stronger choice.
