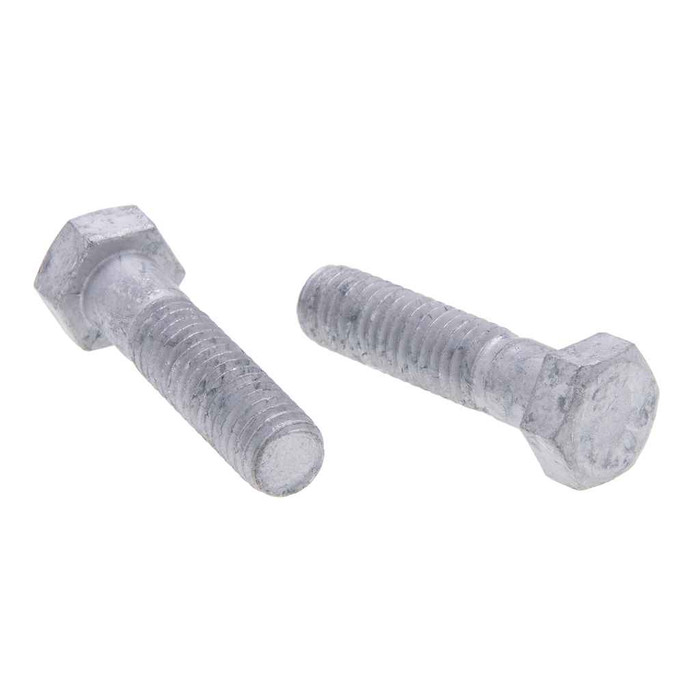

Bolts 1/2-13 X 2 Hxbt Galv (Jar 50)
Additional Notes
- Other sizes and quantities available by request
Manufacturer Resources
Product Specs
- Arra Compliant:
- C
- Buy American Compliant:
- C
- Division:
- Electrical H1
- Fastener Head Height:
- Nov-32 in.
- Fastener Head Type:
- Hex
- Fastener Head Width:
- 0.725 - 0.750 in.
- Fastener Height:
- 0.302 - 0.364
- Fastener Length:
- 2
- Fastener Width:
- 0.826 - 0.866
- Language Code:
- EN
- Order Minimum Imperial:
- 50
- Order Minimum Uom Imperial:
- CT
- Outside Diameter:
- 0.482 - 0.515 IN
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Product Height:
- 7.25 in
- Product Length:
- 4.5 in
- Product Weight:
- 6.79 lbs
- Product Width:
- 4.5 in
- Sub Division:
- Electrical-E H2
- Thread Per Inch:
- 13
- Thread Standard:
- ASME B18.2.1-1996
- Department:
- Electrical
- Product Subgroup:
- Bolts
- Product Type:
- Hexagonal Bolt
- Type2:
- Hexagonal Bolt
- Series:
- BHC and JBHC
- Product Finish:
- Galvanized
- Product Details:
- Hexagonal Bolt
- Product Material:
- Steel
Metallics JBHC33G – Frequently Asked Questions
1) What thread does the Metallics JBHC33G hex bolt take, and what nut do I need?
The JBHC33G is a 1/2-13 bolt, 13 threads per inch, which is standard UNC coarse thread in the 1/2 inch size. Any 1/2-13 UNC nut will thread onto it. Thread form is made to ASME B18.2.1-1996.
2) How much grip length do I get from a 1/2 x 2 bolt through a strut and clamp stack-up?
The JBHC33G is 2 inches long under the head with a shank outside diameter of 0.482 to 0.515 inches, so it takes a 1/2 inch hole. Subtract your material thickness plus nut and washer to confirm enough thread protrudes. For thicker stack-ups, other lengths in the BHC and JBHC series are available by request.
3) Will the JBHC33G hex bolt meet a Buy American requirement on a federal job?
The record flags it as both ARRA compliant and Buy American compliant, while country of origin is listed as China. Because those two statements pull in different directions, have your specifying authority confirm the compliance status against the exact clause in your contract before you submit it.
4) Is this galvanized hex bolt OK for outdoor or damp locations?
It is steel with a galvanized finish, which is the usual choice for outdoor strut, pipe hanger and exterior electrical mounting work where plain steel would rust. For fully submerged or heavy chemical exposure, stainless is the better call.
5) What is the wrench size across the flats on the JBHC33G bolt head?
Head width across the flats runs 0.725 to 0.750 inches, so a 3/4 inch wrench or socket fits it. The head is a standard hex.
6) How many bolts come in a jar of Metallics JBHC33G, and can I buy fewer?
They ship in a jar of 50 and 50 count is the order minimum, so the jar is the smallest buy. The packed jar weighs 6.79 lbs.
7) Is this a full-thread bolt or does it have an unthreaded shoulder?
The JBHC33G is a hex bolt made to ASME B18.2.1-1996 in the 1/2-13 x 2 size. That standard covers hex bolts and cap screws rather than fully threaded tap bolts, so plan on some unthreaded body under the head and set your clamped thickness accordingly.
