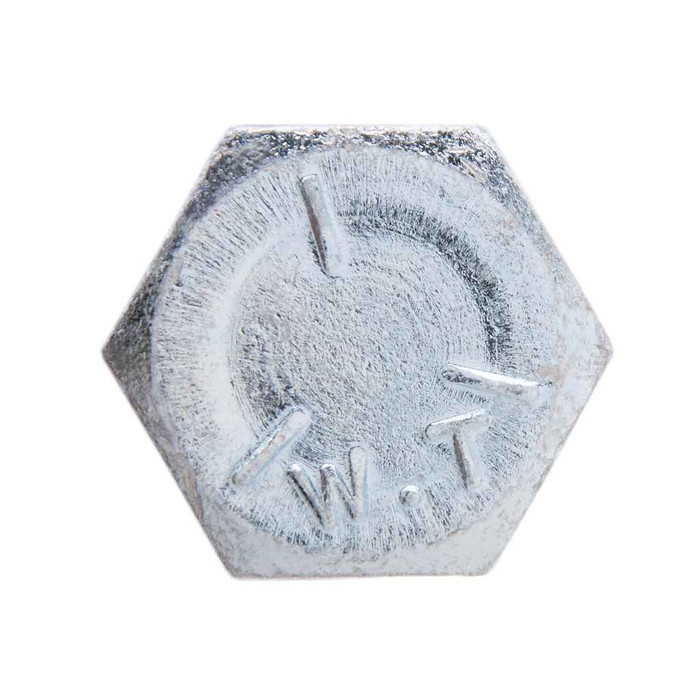

Metallics JG5HTB36 Bolts 1/2-13 X 3-1/2 G5 Hx Tap Blt S (Jar 50)

Metallics JG5HTB36 Bolts 1/2-13 X 3-1/2 G5 Hx Tap Blt S (Jar 50)

(No reviews yet) Write a Review

Model: JG5HTB36
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$53.41
$3.86
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Bolts 1/2-13 X 3-1/2 G5 Hx Tap Blt S (Jar 50)

  • Features

    • Used to mount motor to machinery. Also popular in automotive and truck repair
    • A cap screw made from medium carbon steel and heat-treated

  • Additional Notes

    • Other sizes and quantities available by request

Manufacturer Resources

Product Specs

Arra Compliant:
C
Buy American Compliant:
C
Division:
Electrical H1
Fastener Head Height:
16-May in.
Fastener Head Type:
Hex
Fastener Head Width:
0.736 - 0.750 in.
Fastener Height:
0.302 - 0.323
Fastener Length:
3/1/02
Fastener Width:
0.840 - 0.866
Grade:
5
Hardness:
Rockwell C19-30
Language Code:
EN
Material Standard:
AISI 1008 - 1026
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Hex_Tap_Bolt_St-Zn_and_18-8_SS.pdf
Order Minimum Imperial:
50
Order Minimum Uom Imperial:
CT
Outside Diameter:
0.4930 - 0.5000 IN
Pack Type:
Jar
Product Group:
Fasteners
Product Height:
7.25 in
Product Length:
4.5 in
Product Weight:
4486 g
Product Width:
114.3 MM
Sub Division:
Electrical-E H2
Tensile Strength:
105000 psi minimum
Thread Direction:
Right Hand
Thread Per Inch:
13
Thread Standard:
ASME B18.2.1-2012
Wrenching Height:
0.215
Yield Strength:
105000 psi minimum
Department:
Electrical
Product Subgroup:
Bolts
Product Type:
Hexagonal Bolt
Type2:
Hexagonal Bolt
Series:
G5HTB and JG5HTB
Product Finish:
Zinc
Product Details:
Hexagonal Bolt
Product Material:
Steel

Metallics JG5HTB36 – Frequently Asked Questions

1) Is this bolt threaded all the way to the head, or does it have a shoulder?
A hex tap bolt is fully threaded to the head, which is what separates it from a hex cap screw with a plain shank. That is why it is used for bolting a motor into a tapped hole in a machine frame, where you want thread engagement the full depth. The JG5HTB36 runs 1/2-13 right hand thread, 13 threads per inch, to ASME B18.2.1-2012.
2) Will a 1/2-13 bolt thread into a tapped hole marked 1/2 UNC?
Yes. 1/2-13 UNC is the same thread as 1/2 inch coarse, 13 threads per inch, right hand. The shank outside diameter is 0.4930 to 0.5000 in., so it also drops through a 1/2 inch clearance hole drilled 17/32 or 9/16.
3) What size wrench or socket do I need for a 1/2-13 Grade 5 hex tap bolt?
The Metallics JG5HTB36 hex tap bolt has a head width across flats of 0.736 to 0.750 in., so a 3/4 inch wrench or socket is the right size. Standard hex head, no washer face oddities to work around.
4) Are these zinc plated bolts OK for outdoor or damp locations?
These are steel bolts with a zinc finish, which handles indoor and sheltered use and gives moderate corrosion resistance. For continuous wet exposure, coastal air, or chemical washdown, go to 18-8 stainless or hot dip galvanized instead. Zinc plating on a Grade 5 bolt is a mechanical equipment finish, not a marine one.
5) How many bolts come in a jar, and can I buy fewer than a full jar?
The JG5HTB36 ships as a jar of 50 pieces, and 50 count is the order minimum, so it sells by the full jar rather than loose by the piece. Other sizes and quantities can be requested.
6) Does the jar of fifty 1/2 inch bolts include nuts or washers?
No. The JG5HTB36 jar is bolts only, 50 hex tap bolts, 1/2-13 x 3-1/2. If you are bolting through rather than into a tapped hole, order 1/2-13 hex nuts and 1/2 inch flat and lock washers separately in a matching zinc finish.
7) We have Buy American requirements on a federal job. Where are these bolts made?
Country of origin on the Metallics JG5HTB36 hex tap bolt is China. If your contract carries a domestic sourcing clause on fasteners, that will matter to your submittal, so plan on a domestically produced Grade 5 bolt for those line items.
8) What steel are Metallics G5HTB hex tap bolts made from?
Medium carbon steel in the AISI 1008 to 1026 range, heat treated to reach Grade 5 properties with a minimum 105,000 psi yield. Carbon steel means it is magnetic and will rust if the zinc plating is scraped through, so touch up or seal any field-cut threads.
