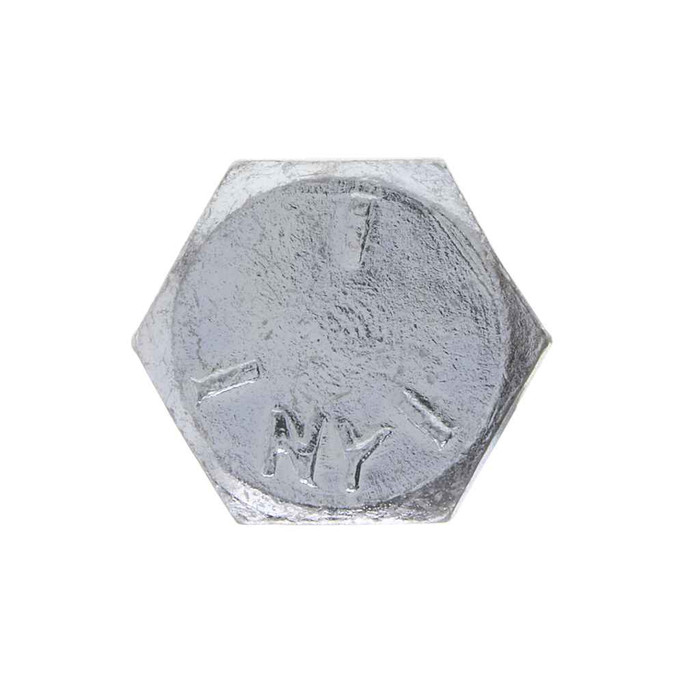

Bolts 1/2-13 X 3/4 G5 Hxbt St-zn (Jar 50)
Additional Notes
- Other sizes and quantities available by request
Features
- Used to mount motor to machinery. Also popular in automotive and truck repair
- A cap screw made from medium carbon steel and heat-treated
Manufacturer Resources
Product Specs
- Arra Compliant:
- N
- Buy American Compliant:
- No
- Division:
- Electrical H1
- Fastener Head Height:
- 16-May in.
- Fastener Head Type:
- Hex
- Fastener Head Width:
- 0.736 - 0.750 in.
- Fastener Height:
- 0.302 - 0.323
- Fastener Length:
- 4-Mar
- Fastener Width:
- 0.840 - 0.866
- Field Application:
- Electrical, Plumbing, Heating and Air Conditioning Industries
- Grade:
- 5
- Hardness:
- Rockwell C25-34
- Language Code:
- EN
- Material Standard:
- AISI 1008 - 1026
- Neurspe:
- https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Gr_5_Hex_Bolt_Dom_St-Zn.pdf
- Order Minimum Imperial:
- 50
- Order Minimum Uom Imperial:
- EA
- Outside Diameter:
- 0.4930 - 0.5000 IN
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Product Height:
- 4.57 in
- Product Length:
- 3 in
- Product Weight:
- 1692 g
- Product Width:
- 76.2 MM
- Sub Division:
- Electrical-E H2
- Tensile Strength:
- 120000 psi minimum
- Thread Per Inch:
- 13
- Thread Standard:
- ASME B18.2.1-2012
- Voltage Rating:
- Zinc Chromate
- Wrenching Height:
- 0.215
- Yield Strength:
- 92000 psi minimum
- Department:
- Electrical
- Product Subgroup:
- Bolts
- Product Type:
- Hexagonal Bolt
- Type2:
- Hexagonal Bolt
- Series:
- G5HC and JG5HC
- Product Finish:
- Zinc
- Product Details:
- Hexagonal Bolt
- Product Material:
- Steel
Metallics JG5HC81 – Frequently Asked Questions
1) How strong is a grade 5 hex bolt and is it strong enough for mounting a motor?
Grade 5 medium carbon steel, heat treated: 120,000 psi minimum tensile and 92,000 psi minimum yield, with hardness in the Rockwell C25-34 range. That's the common structural-duty cap screw class used for mounting motors to machinery and for automotive and truck repair. If an engineer has specified grade 8, this is not a substitute.
2) Do these Metallics bolts meet Buy American or ARRA requirements for a public project?
No. The JG5HC81 is not Buy American compliant and is not ARRA compliant; country of origin is listed as multiple. On a federally funded job with domestic sourcing language, you'll need a domestic grade 5 hex bolt instead.
3) How many bolts come in a jar of Metallics JG5HC81?
They ship 50 pieces in a jar, and 50 each is the minimum order. The jar packaging keeps a single size together on the truck or the shop bench rather than loose in a bin, which is why MRO and service stock buyers use it.
4) What material is a Metallics grade 5 hex cap screw made from?
Medium carbon steel, heat treated, to material standard AISI 1008-1026, with a zinc finish. The heat treat is what takes it to grade 5 property class rather than a plain low carbon bolt.
5) Can I get this grade 5 hex bolt in other lengths or pack sizes?
Yes. The G5HC and JG5HC series runs other sizes and quantities by request; the JG5HC81 is the 1/2-13 x 3/4 jar of 50 within that family.
