Metallics JHTB63 Bolts 1/2-13 ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$59.56
$13.50

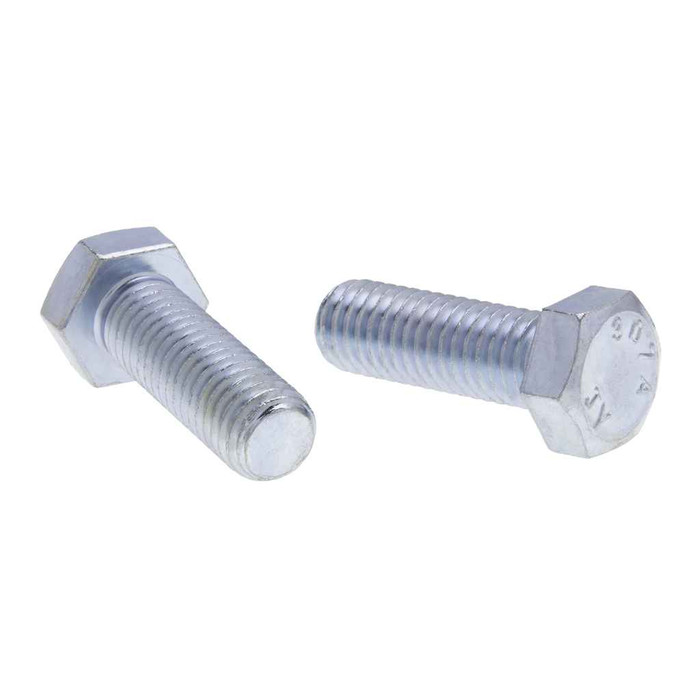

Metallics JHTB63 Bolts 1/2-13 X 6 Hx Tap Blt St-zn (Jar 25)

Metallics JHTB63 Bolts 1/2-13 X 6 Hx Tap Blt St-zn (Jar 25)

(No reviews yet) Write a Review

Model: JHTB63
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$59.56
$13.50
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Bolts 1/2-13 X 6 Hx Tap Blt St-zn (Jar 25)

  • Additional Notes

    • Other sizes and quantities available by request

Manufacturer Resources

Product Specs

Arra Compliant:
C
Buy American Compliant:
C
Division:
Electrical H1
Fastener Head Height:
Nov-32 in.
Fastener Head Type:
Hex
Fastener Head Width:
0.725 - 0.7500 in.
Fastener Height:
0.302 - 0.364
Fastener Length:
6
Fastener Width:
0.826 - 0.866
Hardness:
Rockwell B69-B100
Language Code:
EN
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Hex_Tap_Bolt_St-Zn_and_18-8_SS.pdf
Order Minimum Imperial:
25
Order Minimum Uom Imperial:
EA
Pack Type:
Jar
Product Group:
Fasteners
Product Height:
7.25 in
Product Length:
4.5 in
Product Weight:
4581 g
Product Width:
114.3 MM
Sub Division:
Electrical-E H2
Tensile Strength:
60000 psi minimum
Thread Per Inch:
13
Thread Standard:
IFI-199 (2014)
Department:
Electrical
Product Subgroup:
Bolts
Product Type:
Hexagonal Bolt
Type2:
Hexagonal Bolt
Series:
HTB, JHTB, and JSHTB
Product Finish:
Zinc
Product Details:
Hexagonal Bolt
Product Material:
Steel

Metallics JHTB63 – Frequently Asked Questions

1) What thread and size is the Metallics JHTB63 hex tap bolt?
It's a 1/2-13 bolt, 6 inches long. The 13 means 13 threads per inch, which is standard UNC coarse thread for a 1/2 inch diameter, so it mates with any 1/2-13 nut, coupling, or tapped hole. Threads are made to IFI-199 (2014).
2) Is a hex tap bolt the same as a hex cap screw, and does it come threaded all the way?
A tap bolt is the fully threaded version. That's the difference between the JHTB63 and a partially threaded hex cap screw of the same 1/2-13 by 6 inch size: thread runs the full length, so you can set your grip anywhere along it and thread into a tapped hole at any depth. If your joint needs an unthreaded shank bearing in the hole, use a hex cap screw instead.
3) How strong is the JHTB63 bolt, and is it a graded structural fastener?
Tensile strength is 60,000 psi minimum with hardness at Rockwell B69-B100. That's general purpose strength, fine for hanging strut, trapeze supports, equipment mounting and similar electrical and mechanical work. If a drawing calls out a higher strength structural bolt, this isn't the one to put in.
4) Does the Metallics JHTB63 meet Buy American and ARRA requirements for a federal or publicly funded job?
Yes, the JHTB63 is flagged compliant for both Buy American and ARRA, which is what an institutional or government procurement file usually needs on a fastener line item.
5) What wrench or socket size fits the head on this 1/2 inch Metallics tap bolt?
Head width across flats measures 0.725 to 0.750 in., so a 3/4 inch socket or wrench is the fit. Across corners it runs 0.826 to 0.866 in., useful to know if you're working in a tight channel or against a strut flange.
6) Will a zinc plated steel bolt hold up outdoors or in a damp mechanical room?
The JHTB63 is steel with a zinc finish, which handles indoor and sheltered work and resists incidental moisture. For sustained outdoor exposure, washdown, or corrosive atmospheres, step up to the 18-8 stainless version in the same hex tap bolt family (the JSHTB models) rather than zinc.
7) How many bolts come in a jar of JHTB63, and can I get a different size?
Sold as a jar of 25, with 25 each the order minimum. Other lengths and diameters in the hex tap bolt line, plus other pack quantities, are available by request if 6 inch isn't the grip you need.
8) Do nuts and washers come with these hex tap bolts?
No. A jar of 25 JHTB63 is bolts only. You'll need to order 1/2-13 hex nuts and 1/2 inch flat or lock washers separately to make up the joint.
