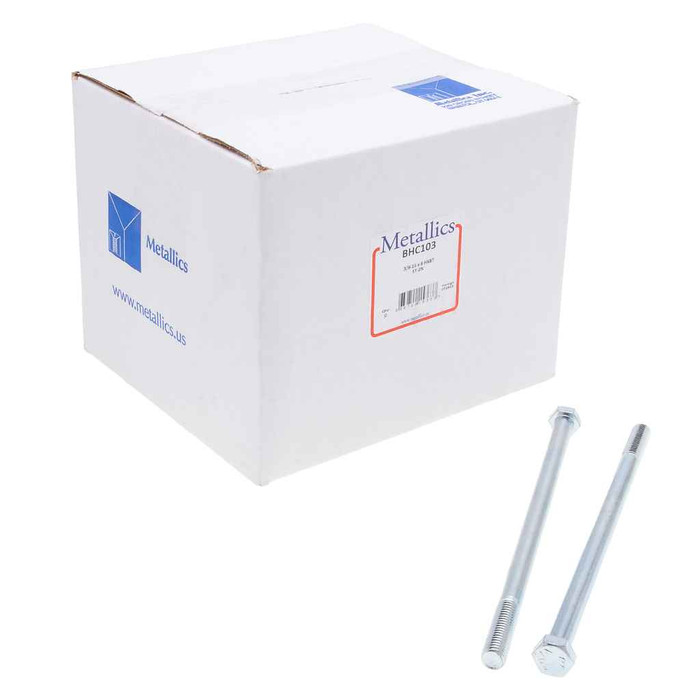

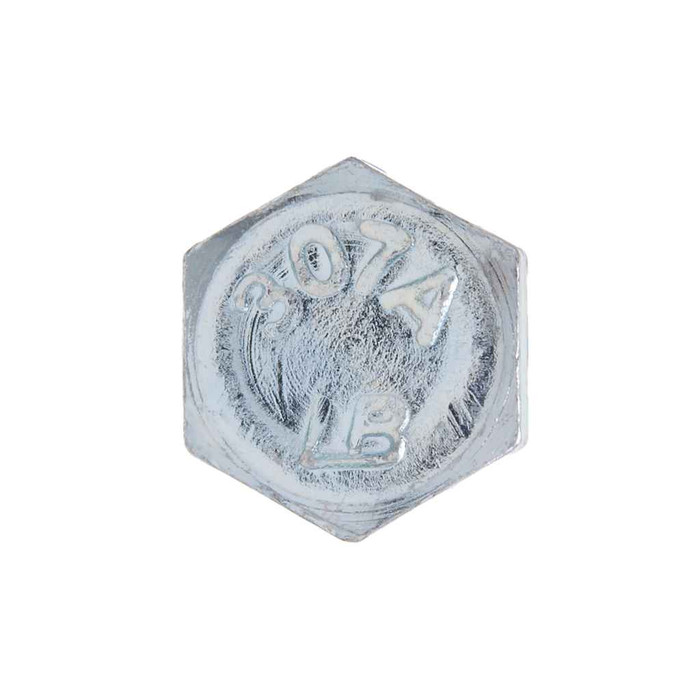

Bolts 1/4-20 x 1-1/2 HXBT St-zn (Box 500)
Additional Notes
- Other sizes and quantities available by request
Manufacturer Resources
Product Specs
- Arra Compliant:
- C
- Buy American Compliant:
- C
- Division:
- Electrical H1
- Fastener Head Height:
- Nov-64 in.
- Fastener Head Type:
- Hex
- Fastener Head Width:
- 0.425 - 0.438 in.
- Fastener Height:
- 0.150 - 0.188
- Fastener Length:
- 1/1/02
- Fastener Width:
- 0.484 - 0.505
- Language Code:
- EN
- Neurspe:
- https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Hex_Bolt_St-Zn_Galv.pdf
- Order Minimum Imperial:
- 500
- Order Minimum Uom Imperial:
- CT
- Outside Diameter:
- 0.237 - 0.260 IN
- Pack Type:
- Box
- Product Group:
- Fasteners
- Product Height:
- 6.13 in
- Product Length:
- 9 in
- Product Weight:
- 11.83 lbs
- Product Width:
- 9 in
- Sub Division:
- Electrical-E H2
- Thread Per Inch:
- 20
- Thread Standard:
- ASME B18.2.1-1996
- Department:
- Electrical
- Product Subgroup:
- Bolts
- Product Type:
- Hexagonal Bolt
- Type2:
- Hexagonal Bolt
- Series:
- BHC and JBHC
- Product Finish:
- Zinc
- Product Details:
- Hexagonal Bolt
- Product Material:
- Steel
Metallics BHC3V – Frequently Asked Questions
1) What thread does the Metallics BHC3V hex bolt use, and will it take a standard 1/4-20 nut?
It's a 1/4-20 thread, 20 threads per inch, made to ASME B18.2.1-1996 for hex bolts. Any standard 1/4-20 UNC nut, coupling nut, or tapped 1/4-20 hole will mate with it, which is what you want for strut, channel nuts, and hanger hardware.
2) Are zinc plated steel bolts like the BHC3V okay for outdoor or damp locations?
The BHC3V is steel with a zinc finish. Zinc plating is a mild corrosion coating meant for dry indoor and protected service, electrical boxes, strut, panel and enclosure mounting. For sustained outdoor exposure, wet locations, or coastal air, step up to hot dip galvanized or stainless 1/4-20 hardware instead.
3) How many bolts come in a box of Metallics BHC3V, and can I buy a smaller quantity?
These ship as a box of 500 pieces, and 500 count is the order minimum, so it is sold by the full box rather than loose. Metallics does make other sizes and quantities in the BHC and JBHC hex bolt series available by request.
4) Does the BHC3V hex bolt come with nuts or washers?
No. The box is hex bolts only, 500 of them. Nuts, flat washers, and lock washers are ordered separately in 1/4-20 and 1/4 in. sizes to match.
5) How much does a 500 piece box of 1/4-20 x 1-1/2 hex bolts weigh for shipping or a job cart?
The full box runs 11.83 lbs. One person handles it easily, and it is worth knowing if you are staging several boxes per floor on a conduit or strut install.
6) Where are Metallics BHC series hex bolts made?
Country of origin on the BHC3V is China. The thread and head geometry are produced to the ASME B18.2.1-1996 hex bolt standard, so dimensions interchange with other bolts built to that spec.
