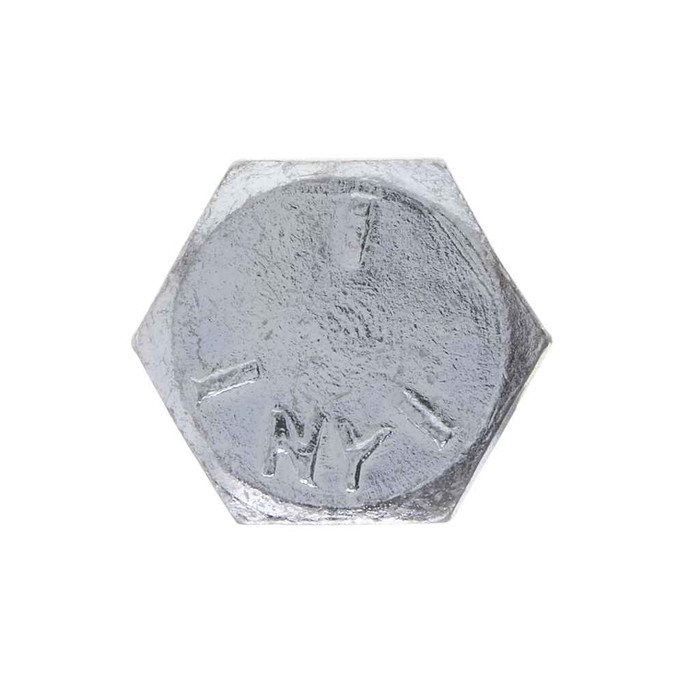

Metallics JG5HC49D Bolts 1/4-20 X 1-1/4 G5 Hxbt St- (Jar 100)

Metallics JG5HC49D Bolts 1/4-20 X 1-1/4 G5 Hxbt St- (Jar 100)

(No reviews yet) Write a Review

Model: JG5HC49D
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$51.04
$1.93
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Bolts 1/4-20 X 1-1/4 G5 Hxbt St- (Jar 100)

  • Features

    • Used to mount motor to machinery. Also popular in automotive and truck repair
    • A cap screw made from medium carbon steel and heat-treated

  • Additional Notes

    • Other sizes and quantities available by request

Manufacturer Resources

Product Specs

Arra Compliant:
C
Buy American Compliant:
C
Country Of Origin:
United States
Division:
Electrical H1
Fastener Head Height:
May-32 in.
Fastener Head Type:
Hex
Fastener Head Width:
0.428 - 0.438 in.
Fastener Height:
0.150 - 0.163
Fastener Length:
1/1/04
Fastener Width:
0.488 - 0.505
Grade:
5
Hardness:
Rockwell C19-30
Language Code:
EN
Material Standard:
AISI 1008 - 1026
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Gr_5_Hex_Bolt_Dom_St-Zn.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
CT
Outside Diameter:
0.2450 - 0.2500 IN
Pack Type:
Jar
Product Group:
Fasteners
Product Height:
3.6 in
Product Length:
3 in
Product Weight:
975 g
Product Width:
76.2 MM
Sub Division:
Electrical-E H2
Tensile Strength:
105000 psi minimum
Thread Per Inch:
20
Thread Standard:
ASME B18.2.1-2012
Voltage Rating:
Zinc Chromate
Wrenching Height:
0.106
Yield Strength:
105000 psi minimum
Department:
Electrical
Product Subgroup:
Bolts
Product Type:
Hexagonal Bolt
Type2:
Hexagonal Bolt
Series:
G5HC and JG5HC
Product Finish:
Zinc
Product Details:
Hexagonal Bolt
Product Material:
Steel

Metallics JG5HC49D – Frequently Asked Questions

1) What thread does the Metallics JG5HC49D hex bolt use, and will it take a standard 1/4-20 nut?
It's a 1/4-20 bolt, 20 threads per inch, cut to ASME B18.2.1-2012. Any standard 1/4-20 UNC nut or tapped 1/4-20 hole will take it. Shank outside diameter measures 0.2450 to 0.2500 in.
2) Is a Grade 5 zinc hex bolt strong enough to mount a motor to a machine base?
Yes, that's the intended use. The JG5HC49D is a medium carbon steel cap screw, heat treated to Grade 5 with 105,000 psi minimum tensile and yield strength and Rockwell C19-30 hardness. Metallics calls out motor mounting to machinery, plus automotive and truck repair, as the common applications.
3) Do these Metallics hex bolts meet Buy American and ARRA requirements for a federal or municipal job?
They do. The JG5HC49D is made in the United States and is flagged compliant for both Buy American and ARRA, which is what a government, school, or healthcare procurement spec usually asks for on fasteners.
4) What size wrench or socket fits the head on this 1/4-20 Grade 5 hex bolt?
Head width across flats is 0.428 to 0.438 in., which is a 7/16 inch wrench or socket. Head type is a standard hex.
5) Can I use these zinc plated steel bolts outdoors or in a damp mechanical room?
The finish is zinc on steel, which handles indoor and sheltered damp conditions but is not a marine or continuously wet finish. For submerged, coastal, or chemically aggressive locations, go to stainless. For dry interior equipment mounting, panel work, and machine bases, zinc plated Grade 5 is the normal choice.
6) How many bolts come in a jar, and is there a minimum order?
The JG5HC49D ships as a jar of 100 bolts, and 100 count is the order minimum. Jar packaging keeps them together on a service truck or in a parts bin rather than loose in a bag. Metallics offers other sizes and quantities in the G5HC and JG5HC series by request.
7) What steel are Metallics Grade 5 hex cap screws made from?
Medium carbon steel in the AISI 1008 to 1026 range, heat treated to reach Grade 5 properties. That is a plain carbon steel, so it is magnetic and will rust if the zinc plating is scraped through.
