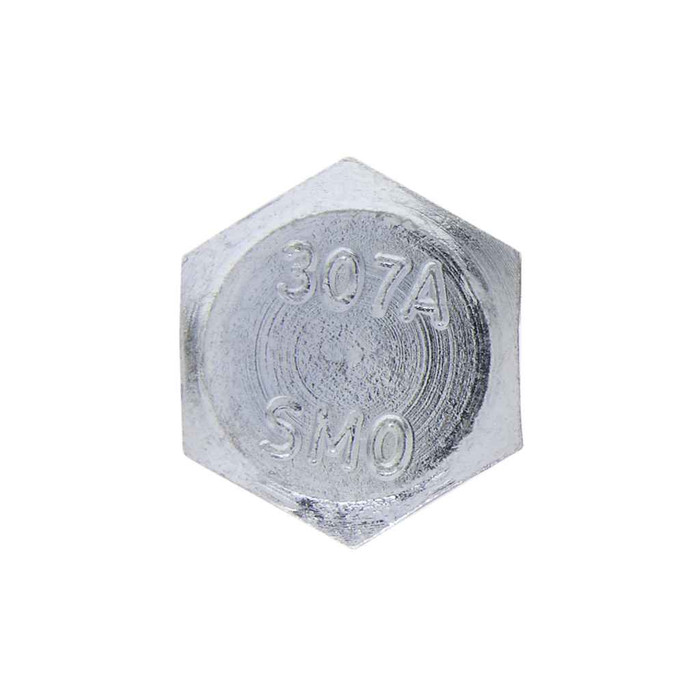

Bolts 1/4-20 x 1/2 HXBT Pln-St (Jar 100)
Additional Notes
- Other sizes and quantities available by request
Manufacturer Resources
Product Specs
- Arra Compliant:
- C
- Buy American Compliant:
- C
- Division:
- Electrical H1
- Fastener Head Height:
- Nov-64 in.
- Fastener Head Type:
- Hex
- Fastener Head Width:
- 0.425 - 0.438 in.
- Fastener Height:
- 0.150 - 0.188
- Fastener Length:
- 2-Jan
- Fastener Width:
- 0.484 - 0.505
- Language Code:
- EN
- Order Minimum Imperial:
- 100
- Order Minimum Uom Imperial:
- CT
- Outside Diameter:
- 0.237 - 0.260 IN
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Product Height:
- 2.15 in
- Product Length:
- 3 in
- Product Weight:
- 1.18 lbs
- Product Width:
- 3 in
- Sub Division:
- Electrical-E H2
- Thread Per Inch:
- 20
- Thread Standard:
- ASME B18.2.1-1996
- Department:
- Electrical
- Product Subgroup:
- Bolts
- Product Type:
- Hexagonal Bolt
- Type2:
- Hexagonal Bolt
- Series:
- BHC and JBHC
- Product Finish:
- Plain
- Product Details:
- Hexagonal Bolt
- Product Material:
- Steel
Metallics JBHC11PL – Frequently Asked Questions
1) What thread does the Metallics JBHC11PL hex bolt take, and will it run into a standard 1/4-20 nut or tapped strut?
It is a 1/4-20 bolt, 20 threads per inch on a 1/4 inch coarse thread, so it threads into any standard 1/4-20 nut, channel nut, or tapped hole. Thread form follows ASME B18.2.1-1996, the dimensional standard for square and hex bolts and screws, and the measured outside diameter runs 0.237 to 0.260 inch.
2) Is the JBHC11PL bolt plated or coated for outdoor use?
No. The finish is plain steel, bare and uncoated, so it will rust in wet or exterior locations. Keep these to dry indoor work (panel and enclosure assembly, strut and bracket work inside conditioned space) and specify a zinc plated or galvanized 1/4-20 hex bolt for anything damp or outdoors.
3) What wrench or socket size fits the head on the Metallics 1/4-20 hex bolt?
Head is a hex, measuring 0.425 to 0.438 inch across the flats, which is a 7/16 inch wrench or socket. Head height runs 0.150 to 0.188 inch.
4) How many bolts come in a jar of Metallics JBHC11PL, and can I buy fewer?
They ship as a jar of 100 bolts, and 100 count is the order minimum, so the jar is the smallest unit. Metallics notes other sizes and quantities in the BHC and JBHC series can be had by request.
5) Does the Metallics JBHC11PL meet Buy American or ARRA requirements on a federal job?
The record flags it as both ARRA compliant and Buy American compliant, while country of origin is listed as China. On a federally funded project, verify which of those applies to your specification before you release it, since the two entries pull in different directions.
6) Are nuts or washers included with the Metallics hex bolt jar?
Bolts only. The jar of 100 contains the 1/4-20 x 1/2 inch plain steel hex bolts and nothing else, so order 1/4-20 hex nuts, flat washers, and lock washers separately if the job needs them.
7) How much does a jar of 100 Metallics 1/4-20 x 1/2 hex bolts weigh for shipping or a van stock list?
A full jar weighs 1.18 lbs, and the container measures 3 x 2.15 x 3 inches, so it drops into a parts bin or a truck drawer without taking much space.
