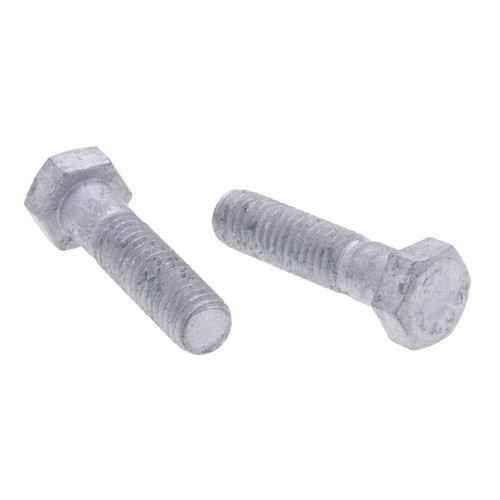

Bolts 1/4-20 X 3/4 Hxbt Galv (Jar 100)
Additional Notes
- Other sizes and quantities available by request
Manufacturer Resources
Product Specs
- Arra Compliant:
- N
- Buy American Compliant:
- No
- Division:
- Electrical H1
- Fastener Head Height:
- Nov-64 in.
- Fastener Head Type:
- Hex
- Fastener Head Width:
- 0.425 - 0.438 in.
- Fastener Height:
- 0.150 - 0.188
- Fastener Length:
- 4-Mar
- Fastener Width:
- 0.484 - 0.505
- Field Application:
- Electrical, Plumbing, Heating and Air Conditioning Industries
- Grade:
- 2
- Language Code:
- EN
- Neurspe:
- https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Hex_Bolt_St-Zn_Galv.pdf
- Order Minimum Imperial:
- 100
- Order Minimum Uom Imperial:
- JR
- Outside Diameter:
- 0.237 - 0.260 IN
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Product Height:
- 2.7 in
- Product Length:
- 3 in
- Product Weight:
- 1.57 lbs
- Product Width:
- 3 in
- Sub Division:
- Electrical-E H2
- Thread Per Inch:
- 20
- Thread Standard:
- ASME B18.2.1-1996
- Department:
- Electrical
- Product Subgroup:
- Bolts
- Product Type:
- Hexagonal Bolt
- Type2:
- Hexagonal Bolt
- Series:
- BHC and JBHC
- Product Finish:
- Galvanized
- Product Details:
- Hexagonal Bolt
- Product Material:
- Steel
Metallics JBHC1G – Frequently Asked Questions
1) Is a galvanized Grade 2 hex bolt strong enough for hanging electrical conduit and pipe supports?
For conduit straps, strut clamps, pipe hangers, and panel and box mounting, yes. This is a Grade 2 steel hex bolt, and Metallics lists it for the electrical, plumbing, heating and air conditioning trades. Grade 2 is the standard low carbon commercial grade used for general support work, not for structural steel connections or high tension joints. If a drawing calls out a Grade 5 or Grade 8 bolt, Grade 2 is not a substitute.
2) Do Metallics JBHC1G bolts meet Buy American or ARRA requirements for a public project?
No. The JBHC1G is listed as not Buy American compliant and not ARRA compliant, with country of origin recorded as multiple. On a federally funded job with domestic sourcing language in the spec, this bolt will not satisfy it and you need a domestically produced fastener instead.
3) How many bolts come in a jar of Metallics JBHC1G, and can I order a smaller quantity?
The JBHC1G ships as a jar of 100 bolts, and the jar is the order minimum, so 100 pieces is the smallest buy. Metallics does make other sizes and quantities in the BHC and JBHC series available by request if a jar of 100 of this size is not what you need.
4) Can I use these galvanized bolts outdoors or in a damp mechanical room?
The galvanized zinc finish on the JBHC1G gives better corrosion resistance than plain or bright steel, which is why it is the usual pick for damp mechanical rooms, parking garages, and protected exterior runs. For direct salt spray, submerged service, or chemically aggressive environments, stainless is the better call.
5) What wrench or socket size do I need for the Metallics JBHC1G hex bolt?
Head width on the JBHC1G measures 0.425 to 0.438 in. across flats, which is the 7/16 in. hex head standard on a 1/4-20 bolt. A 7/16 in. wrench, socket, or nut driver fits it.
6) How much does a jar of 100 Metallics JBHC1G hex bolts weigh and how big is the container?
A full jar runs 1.57 lbs. The container measures 3 in. length, 3 in. width, and 2.7 in. height, so it drops into a van bin or a service cart drawer without repacking.
7) Is JBHC1G the same bolt as the BHC version, and what is the difference?
Both sit in the Metallics BHC and JBHC series of galvanized steel hex bolts. The JBHC prefix is the jar-packed presentation, and JBHC1G specifically is the 1/4-20 x 3/4 in. galvanized hex bolt supplied as a jar of 100. If you want the same bolt in a different pack or a different length or diameter, Metallics offers other sizes and quantities in the series by request.
