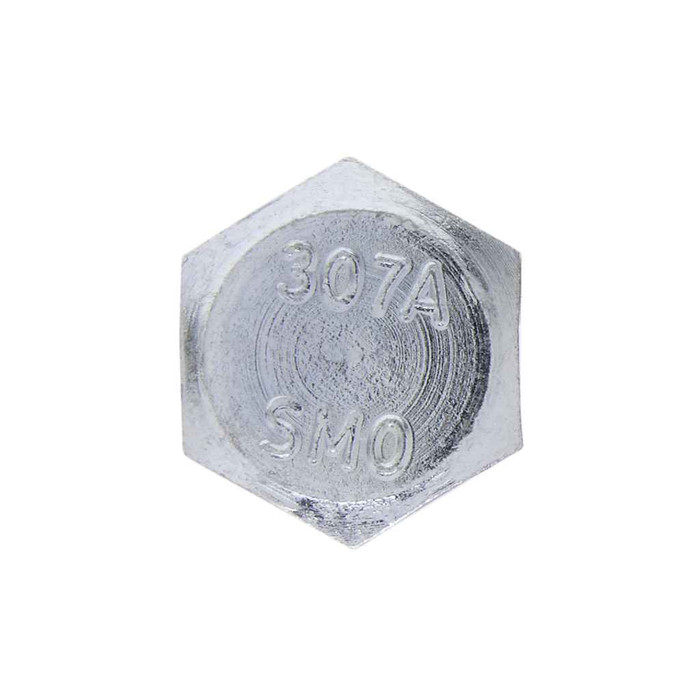

Bolts 1/4-20 x 3/4 HXBT Pln-St (Jar 100)
Additional Notes
- Other sizes and quantities available by request
Manufacturer Resources
Product Specs
- Arra Compliant:
- C
- Buy American Compliant:
- C
- Division:
- Electrical H1
- Fastener Head Height:
- Nov-64 in.
- Fastener Head Type:
- Hex
- Fastener Head Width:
- 0.425 - 0.438 in.
- Fastener Height:
- 0.150 - 0.188
- Fastener Length:
- 4-Mar
- Fastener Width:
- 0.484 - 0.505
- Language Code:
- EN
- Order Minimum Imperial:
- 100
- Order Minimum Uom Imperial:
- CT
- Outside Diameter:
- 0.237 - 0.260 IN
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Product Height:
- 2.7 in
- Product Length:
- 3 in
- Product Weight:
- 1.44 lbs
- Product Width:
- 3 in
- Sub Division:
- Electrical-E H2
- Thread Per Inch:
- 20
- Thread Standard:
- ASME B18.2.1-1996
- Department:
- Electrical
- Product Subgroup:
- Bolts
- Product Type:
- Hexagonal Bolt
- Type2:
- Hexagonal Bolt
- Series:
- BHC and JBHC
- Product Finish:
- Plain
- Product Details:
- Hexagonal Bolt
- Product Material:
- Steel
Metallics JBHC1PL – Frequently Asked Questions
1) What thread does the Metallics JBHC1PL hex bolt take, and what nut do I need with it?
It's a 1/4-20 thread, so 20 threads per inch, and it mates with any standard 1/4-20 coarse hex nut or a 1/4-20 tapped hole. The thread is made to ASME B18.2.1-1996, the dimensional standard for square and hex bolts and screws, so it interchanges with any other 1/4-20 UNC hardware on the job.
2) Is the plain finish on these Metallics hex bolts okay for outdoor or damp locations?
No. The finish is plain steel with no plating or coating, so it will rust in wet, humid, or exterior conditions. Keep these for dry interior work (strut, enclosure, and panel assembly inside conditioned space). For outdoor runs, wet locations, or anything exposed to washdown, order a zinc plated or stainless 1/4-20 hex bolt instead.
3) How many bolts come in a jar of Metallics JBHC1PL, and can I buy fewer?
They ship as a jar of 100 pieces, and 100 count is the order minimum, so the jar is the smallest unit sold. The filled jar weighs 1.44 lbs. Other sizes and quantities can be requested if 100 of this length isn't what the job calls for.
4) Do these Metallics bolts meet Buy American or ARRA requirements on a federal job?
The JBHC1PL is flagged ARRA compliant and Buy American compliant in the product record, with country of origin listed as China. If your contract runs on a strict domestic-melt-and-manufacture clause rather than the ARRA compliance flag, reconcile that against the spec before you submit it.
5) Are the nuts and washers included with the Metallics JBHC1PL jar of bolts?
No. The jar holds hex bolts only, 100 of them. Order 1/4-20 hex nuts, flat washers, and lock washers separately if the connection needs them. Anything threading into tapped strut or a tapped channel nut needs no additional hardware.
6) Hex bolt or hex head machine screw for mounting into strut and electrical enclosures?
For 1/4-20 work in strut, channel nuts, and enclosure mounting, a hex head bolt like the JBHC1PL is the usual pick because you can run it with a 7/16 socket and get real torque on it without a driver bit camming out. A slotted or Phillips machine screw is easier in tight spots where a wrench won't swing but won't take the same torque. Carriage bolts are the wrong choice here, as the round head and square neck need a matching square hole.
