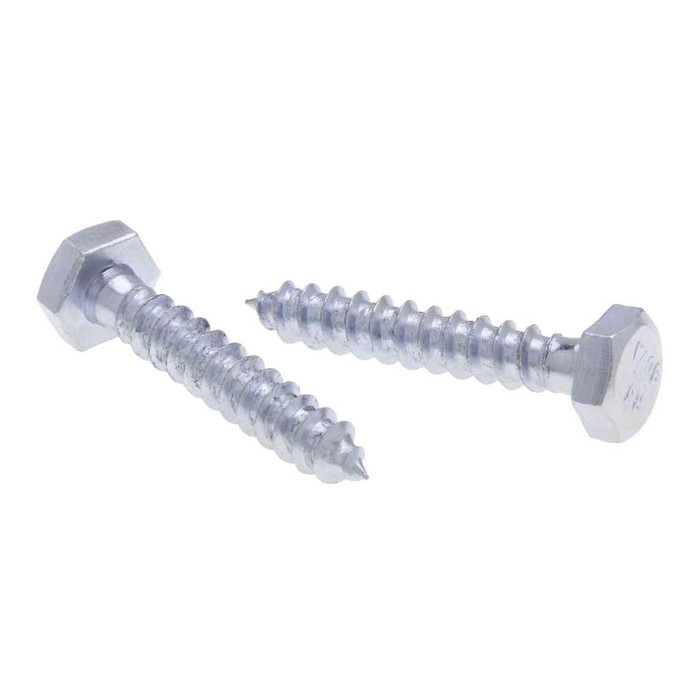

Bolts 1/4 X 2 Hx Lag Blt Galv (Jar 100)
Features
- For use in corrosive enviroments
- A full-bodied boltwith hex head, spaced threads and a gimlet point
Additional Notes
- Other sizes and quantities available by request
Manufacturer Resources
Product Specs
- Arra Compliant:
- N
- Buy American Compliant:
- No
- Dimensional Standard:
- ASME B18.2.1-1996
- Division:
- Electrical H1
- Fastener Head Height:
- Nov-64 in.
- Fastener Head Type:
- Hex
- Fastener Head Width:
- 0.425 - 0.438 in.
- Fastener Height:
- 0.150 - 0.188
- Fastener Length:
- 2
- Fastener Width:
- 0.484 - 0.505
- Field Application:
- Electrical, Plumbing, Heating, Air Conditioning Industries
- Hardness:
- Rockwell B70-B100
- Language Code:
- EN
- Material Standard:
- AISI 1006 - 1022
- Neurspe:
- https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Hex_Lag_Bolt_St-Zn_18-8_SS_Galv.pdf
- Order Minimum Imperial:
- 100
- Order Minimum Uom Imperial:
- JR
- Outside Diameter:
- 0.237 - 0.260 IN
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Product Height:
- 5.75 in
- Product Length:
- 3.5 in
- Product Weight:
- 1261 g
- Product Width:
- 88.9 MM
- Sub Division:
- Electrical-E H2
- Tensile Strength:
- 60000 psi minimum
- Thread Direction:
- Right Hand
- Thread Per Inch:
- 10
- Washer Od:
- 0.094 in.
- Department:
- Electrical
- Product Subgroup:
- Bolts
- Product Type:
- Hexagonal Bolt
- Type2:
- Hexagonal Bolt
- Series:
- BLS and JBLS
- Product Finish:
- Galvanized
- Product Details:
- Hexagonal Bolt
- Product Material:
- Steel
Metallics JBLS2G – Frequently Asked Questions
1) Can a 1/4 x 2 galvanized lag bolt be used outdoors or in a damp mechanical room?
Yes. The Metallics JBLS2G lag bolt carries a galvanized finish over a steel body and is called out for use in corrosive environments, so exterior anchoring, damp crawlspaces, and wet mechanical rooms are within its intended use.
2) What strength rating does this galvanized lag bolt carry?
Minimum tensile strength is 60,000 psi, with hardness Rockwell B70 to B100, made from AISI 1006 to 1022 steel. Head and body dimensions follow ASME B18.2.1-1996, so it interchanges with any other lag screw built to that standard.
3) Will the JBLS2G satisfy a Buy American or ARRA requirement on a federal job?
No. The JBLS2G is not Buy American compliant and is not ARRA compliant, with country of origin listed as multiple. If your contract carries a domestic sourcing clause, this is not the part to specify.
4) Do I need to pre-drill for the Metallics JBLS2G lag bolt, or will it start on its own?
It has a gimlet point and spaced threads, so it will start and draw itself into wood without a clearance hole. A pilot hole is still normal practice in dense or dry lumber to keep the 1/4 inch shank from splitting the stock. Thread count is 10 per inch, right hand.
5) How many lag bolts come in a jar, and can I buy fewer than that?
They ship 100 to a jar, and the jar is the order minimum, so 100 pieces is the smallest quantity. The packed jar weighs 1261 g.
6) Is a lag bolt the right fastener for anchoring into concrete or block?
No. A lag screw like the 1/4 x 2 JBLS2G cuts its own thread with a gimlet point and is a wood fastener, or a fastener into a lead or plastic anchor set in masonry. Driving it directly into concrete or block will not hold. For masonry, use a concrete screw or an expansion anchor instead.
7) Does this lag bolt come with a washer?
Washers are not part of the lag bolt itself. The spec lists a washer outside diameter of 0.094 in. as a related dimension, but plan on ordering flat washers separately if you are bearing on a strap, hanger, or soft wood surface.
